Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

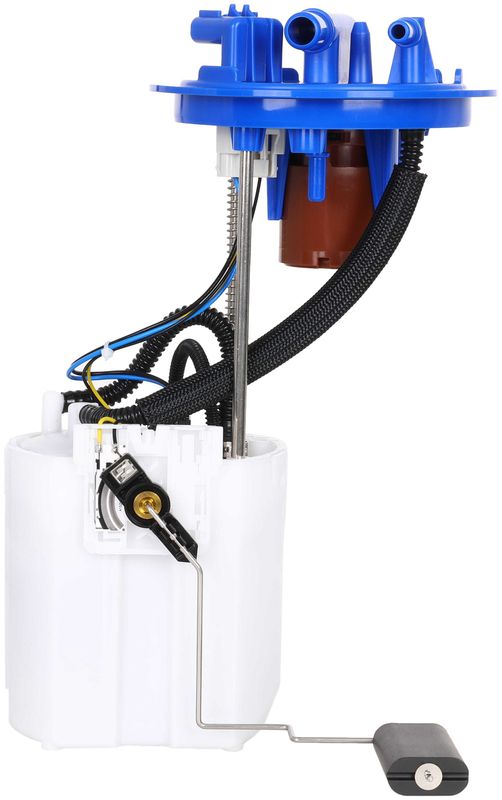

Delphi FG2845 Fuel Pump Module Assembly
| Brand | Delphi FG2845 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 90 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 180 |
| Resistance Ohms Full | 10 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 84 |
| Internal Or External Strainer | Internal |
| Fits | Ford · 7 vehicles |
OE-style replacement. Specific-fit fuel pump module assembly for straightforward installation.
Turbine pump design. Delivers steady fuel flow with an electric in-tank setup.
Includes key components. Comes with a fuel sending unit, regulator, strainer, and seal.
Cross-references JL3Z 9H307-L, JL3Z9H307B and PFS1229 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG2845 Fuel Pump Module Assembly
Delphi FG2845 is a specific-fit fuel pump module assembly for gas-powered applications, built for in-tank service on 2018-2024 Ford F-150 models. It includes the fuel sending unit, regulator, strainer, gasket/seal, and a float arm for a complete fuel delivery service solution.
Key Features
- Specific-fit fuel pump module assembly for 2018-2024 Ford F-150
- In-tank electric turbine pump design for gas fuel systems
- Fuel sending unit and regulator included
- Strainer and nitrile rubber gasket/seal included
- 12-volt, blade-terminal design with 1 connector and 4 terminals
- Quick-connect outlet with 3 outlet ports
- Premium-grade construction with plastic housing
- Average flow rating of 39 and maximum pressure rating of 90
Detailed Description
Delphi FG2845 is engineered as a fuel pump module assembly for the Ford F-150 fuel system, with fitment covering 2018, 2019, 2020, 2021, 2022, 2023, and 2024 model years. As a Tier 1 supplier to major vehicle manufacturers, Delphi brings decades of fuel delivery experience and OE-focused fuel technology to this replacement module. The assembly is built for in-tank installation and uses an electric turbine pump design with a quick-connect outlet and internal strainer for direct fuel delivery service. This part cross-references Delphi PFS1229 for the same application.
Common Issues This Part Can Address
- Hard starting caused by weak or inconsistent fuel pressure
- Engine stalling from fuel delivery interruption
- Fuel gauge inaccuracies related to a worn sending unit
- Low fuel pressure under load in Ford F-150 applications
- Fuel system noise or pump wear in an in-tank module
Installation Notes and Tips
Install FG2845 as a direct replacement for the specified Ford F-150 applications. Verify connector style, outlet type, and tank configuration before installation. Replace the seal during service and inspect the tank, lines, and electrical connection points for contamination or damage. This module is specific fit, so confirm year and model match the vehicle before ordering.
Quality Assurance
Delphi has supplied fuel system components for more than 80 years and supports technicians with training resources and a technical hotline. FG2845 reflects Delphi’s OE-oriented fuel management experience and is built for direct-fit service on the listed Ford F-150 applications.
| Year | Make | Model | Body Type | Liters | Cylinders | Fuel Type | Wheel Base | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Ford | F-150 | — | 5.0L | V8 | — | 163.0" | — |
| 2023 | Ford | F-150 | — | 5.0L | V8 | — | 163.0" | — |
| 2022 | Ford | F-150 | — | 5.0L | V8 | — | 163.0" | — |
| 2021 | Ford | F-150 | — | 5.0L | V8 | — | 163.0" | — |
| 2020 | Ford | F-150 | Crew Cab Pickup | 5.0L | V8 | FLEX | — | — |
| 2019 | Ford | F-150 | Crew Cab Pickup | 5.0L | V8 | FLEX | — | — |
| 2018 | Ford | F-150 | Crew Cab Pickup | 5.0L | V8 | FLEX | — | — |
| No rows match your filter. | ||||||||
