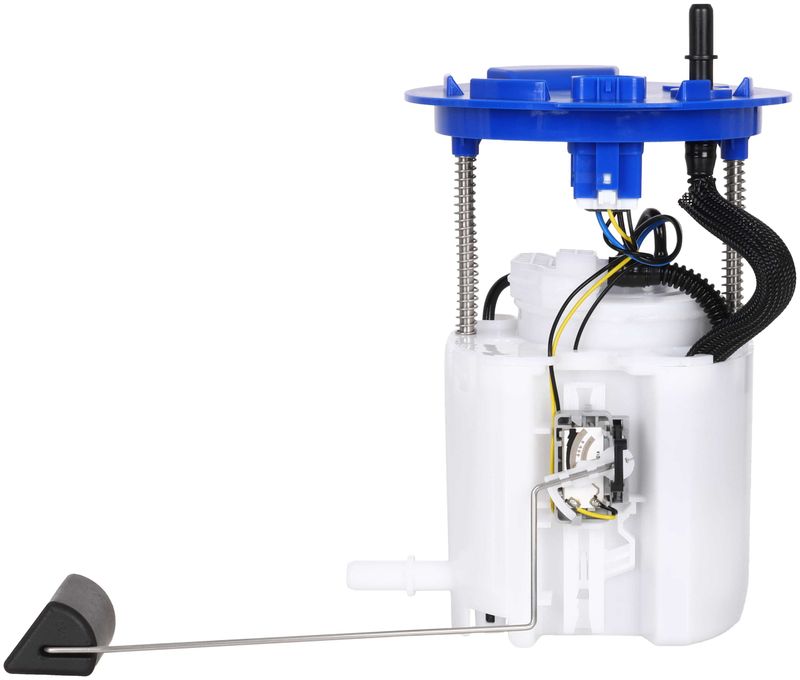

Delphi FG2847 Fuel Pump Module Assembly - Left
| Brand | Delphi FG2847 |
|---|---|
| Position | Left |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 90 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 180 |
| Resistance Ohms Full | 10 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 84 |
| Internal Or External Strainer | Internal |
| Fits | Ford and Lincoln · 11 vehicles |
Specific-fit design. Built for targeted fuel system replacement applications.
In-tank turbine pump. Electric pump layout with quick-connect outlet and regulator.
OE-focused engineering. Delphi draws on Tier 1 fuel system manufacturing experience.
Cross-references K2GZ 9H307-A, PFS1199 and USEP21046M for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel pump module overview
Delphi FG2847 is a specific-fit fuel pump module assembly for gasoline applications. It combines the pump, sending unit, regulator, strainer, and seal in one in-tank design for a direct service replacement.
Key features
- Specific-fit fuel pump module assembly for targeted application coverage.
- In-tank electric turbine pump with a quick-connect outlet.
- Includes a fuel sending unit, regulator, strainer, and nitrile rubber seal.
- Plastic housing with a female connector and male blade terminals.
- 12-volt design with a 90 psi maximum pressure rating.
Detailed description
Delphi FG2847 is built for gasoline fuel systems and uses an in-tank electric turbine pump layout. The module includes the sending unit and regulator, helping consolidate key fuel delivery components into one service part. Its quick-connect outlet, trapezoid connector shape, and 4-terminal blade connection support a clean replacement path for the fuel system on the Ford Edge and Lincoln Nautilus. Delphi FG2847 is also identified by cross-reference part numbers K2GZ 9H307-A and PFS1199 for the same application.
Delphi brings Tier 1 supplier experience and long-term fuel system manufacturing background to this fuel pump module assembly. The FG2847 reflects that OE-focused engineering approach with a premium-grade construction and application-specific fitment.
Common issues this part can address
- Hard starting caused by weak fuel delivery.
- Fuel pressure loss from a worn pump module.
- Inaccurate fuel level readings from a failing sending unit.
- Fuel system leaks at the module seal or outlet connection.
- Intermittent drivability problems related to inconsistent pump output.
Installation notes and quality
Fits 2019-2024 Ford Edge, left. Fits 2019-2023 Lincoln Nautilus, left. Verify connector shape, terminal count, outlet style, and tank configuration before installation. This module is supplied without mounting hardware, and the package contents include the fuel pump module assembly with float arm, seal, splices, wire harness, and instruction sheet.
Delphi FG2847 is a premium-grade replacement backed by Delphi's OE supplier heritage and fuel technology experience. Part number FG2847 should be matched to the vehicle's exact fuel system configuration before service.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Ford | Edge | — | — | 2.0L | L4 | Left | — |
| 2023 | Ford | Edge | Titanium | — | 2.0L | L4 | Left | — |
| 2023 | Lincoln | Nautilus | Reserve | — | 2.0L | L4 | Left | — |
| 2022 | Ford | Edge | Titanium | — | 2.0L | L4 | Left | — |
| 2022 | Lincoln | Nautilus | Reserve | AWD | 2.0L | L4 | Left | — |
| 2021 | Ford | Edge | Titanium | — | 2.0L | L4 | Left | — |
| 2021 | Lincoln | Nautilus | Reserve | AWD | 2.0L | L4 | Left | — |
| 2020 | Ford | Edge | Titanium | AWD | 2.0L | L4 | Left | — |
| 2020 | Lincoln | Nautilus | Reserve | AWD | 2.0L | L4 | Left | — |
| 2019 | Ford | Edge | Titanium | AWD | 2.0L | L4 | Left | — |
| 2019 | Lincoln | Nautilus | Select | AWD | 2.0L | L4 | Left | — |
