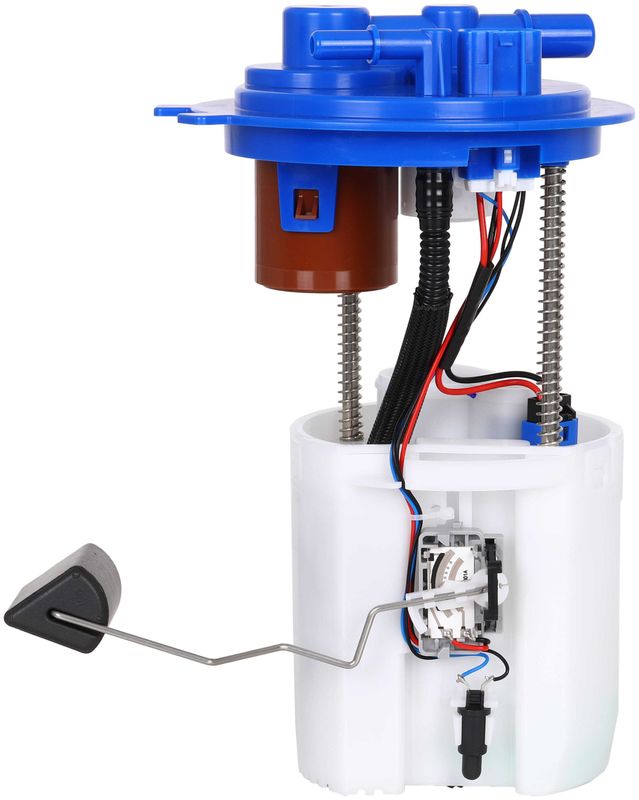

Delphi FG2851 Fuel Pump Module Assembly
| Brand | Delphi FG2851 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 54 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 5 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 282 |
| Resistance Ohms Full | 50 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 46 |
| Internal Or External Strainer | Internal |
| Fits | Nissan · 9 vehicles |
Specific fit. Built as a direct replacement fuel pump module assembly.
Turbine pump design. Delivers steady fuel flow with efficient electric operation.
Includes key components. Comes with a fuel sending unit, regulator, and strainer.
Cross-references US Motor Works USEP9100M and 17040-5RL0A for the same application. See all 2.
Delphi FG2851 Fuel Pump Module Assembly
Delphi FG2851 is a specific-fit fuel pump module assembly for gas applications, built for in-tank service with an electric turbine pump design. It includes the fuel sending unit, regulator, strainer, gasket/seal, and float arm for a complete fuel delivery replacement on select Nissan models.
Key Features
- Specific-fit fuel pump module assembly for select Nissan vehicles
- In-tank, 12-volt electric turbine pump design
- Fuel sending unit included for fuel level signal replacement
- Regulator included with a maximum pressure rating of 54 psi
- Quick-connect outlet design with two outlets and one female connector
- Strainer and nitrile rubber gasket/seal included
- Premium-grade construction with plastic housing
- Package contents include fuel pump module assembly with float arm, seal, splices, wire harness, and instruction sheet
Detailed Description
Delphi FG2851 is engineered for gas-powered fuel systems that require a direct-fit in-tank module assembly. It uses a turbine-style electric pump with an average flow rating of 26 and an average current draw of 7, supporting consistent fuel delivery within a 46 to 54 psi operating range. The module includes the fuel sending unit and regulator, helping restore both fuel supply and fuel level reporting in one service part. This part cross-references US Motor Works (e.g., USEP9100M) for the same application. Fits 2018-2024 Nissan Kicks, N/A. Fits 2019 Nissan Versa, N/A. Fits 2019 Nissan Versa Note, N/A. Delphi FG2851 is also referenced by part number FG2851 for ordering and catalog lookup.
What It Helps Address
- Hard starting caused by weak or inconsistent fuel pressure
- Engine stalling from inadequate fuel delivery
- Incorrect fuel gauge readings from a worn sending unit
- Fuel starvation under load from a failing in-tank pump
- Fuel system performance issues tied to a damaged module assembly
Installation Notes and Tips
Verify vehicle application before installation, especially on 2018-2024 Nissan Kicks and 2019 Nissan Versa or Versa Note models. Inspect the tank opening, electrical connector, and fuel line connections before transfer. The module uses a trapezoid connector shape, blade terminals, and quick-connect outlet design. Follow the included instruction sheet and replace the seal during service to help maintain a proper tank seal. Delphi FG2851 is a direct replacement part number for catalog matching and service planning.
Quality Assurance
Delphi has supplied fuel delivery components to global vehicle manufacturers for decades and brings OE-focused engineering to fuel pump module assemblies. FG2851 reflects that background with premium-grade construction and application-specific fitment for select Nissan vehicles.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2024 | Nissan | Kicks | SV | 1.6L | L4 | — |
| 2023 | Nissan | Kicks | SV | 1.6L | L4 | — |
| 2022 | Nissan | Kicks | SV | 1.6L | L4 | — |
| 2021 | Nissan | Kicks | SV | 1.6L | L4 | — |
| 2020 | Nissan | Kicks | SV | 1.6L | L4 | — |
| 2019 | Nissan | Kicks | SV | 1.6L | L4 | — |
| 2019 | Nissan | Versa | SV | 1.6L | L4 | — |
| 2019 | Nissan | Versa Note | SV | 1.6L | L4 | — |
| 2018 | Nissan | Kicks | SV | 1.6L | L4 | — |
| No rows match your filter. | ||||||
