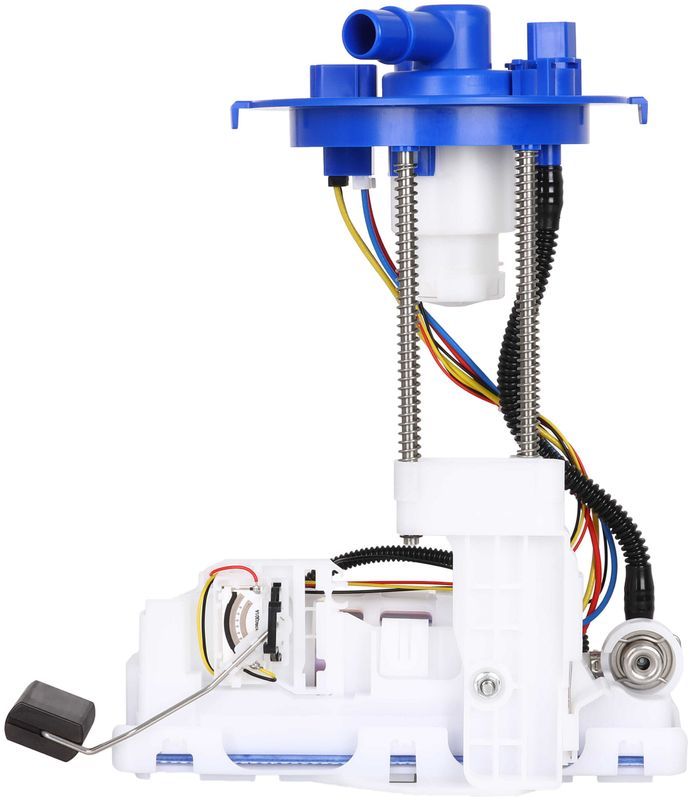

Delphi FG2852 Fuel Pump Module Assembly
| Brand | Delphi FG2852 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.313 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 100 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 2 |
| Connector Shape | Square |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 7 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Push in |
| Outlet Quantity | 3 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 0.5 |
| Resistance Ohms Full | 4.5 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 90 |
| Internal Or External Strainer | Internal |
| Fits | Toyota · 5 vehicles |
Specific-fit design. Built for gas fuel systems with a turbine electric pump and premium-grade construction.
Complete module layout. Includes the sending unit, regulator, seal, and strainer in one service assembly.
OE-focused engineering. Delphi brings decades of fuel delivery manufacturing experience and OE technology.
Cross-references 23221-47031, 77020-02890 and 77020-12A00 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Corolla
This Delphi fuel pump module assembly, part number FG2852, is a specific-fit replacement for gas applications. It combines the pump, sending unit, regulator, seal, and strainer in one assembly for a direct service solution.
- Specific-fit fuel pump module assembly for gas fuel systems
- Includes a fuel sending unit, regulator, seal, and strainer
- Turbine-style electric pump with 12-volt operation
- Plastic housing with a push-in outlet and square 2-connector design
- Delphi FG2852 is built for in-tank installation
Detailed Product Overview
Delphi FG2852 is engineered as an in-tank fuel pump module assembly with a turbine pump design, 12-volt electrical operation, and a premium-grade construction. It uses a female square connector layout with blade terminals and includes a nitrile rubber seal for the assembly interface. The module is configured for gas fuel systems and is rated for 90 to 100 maximum pressure, with an average flow rating of 18 and average current draw of 11. For buyers searching for a Toyota Corolla fuel pump module assembly, FG2852 provides the core components needed for fuel delivery service in one specific-fit unit.
Delphi has long supplied fuel delivery components to global vehicle manufacturers and brings extensive OE-focused fuel technology experience to this part. This part cross-references Toyota numbers 23221-47031 and 77020-02890 for the same application.
What It Helps Address
- Fuel delivery problems caused by a worn pump module
- Hard starting related to weak fuel pressure
- Fuel level reading issues tied to a failing sending unit
- Pressure instability from a deteriorated regulator or strainer
- Service needs on a Toyota Corolla fuel system
Installation Notes
Fits 2019-2023 Toyota Corolla, N/A. Confirm connector style, outlet type, and tank configuration before installation. The package contents list a fuel pump module assembly with float arm, seal, splices, wire harness, and instruction sheet; mounting hardware is not listed as included.
Quality Assurance
Delphi is a Tier 1 supplier with more than 80 years of fuel system manufacturing experience and a broad OE technology portfolio. FG2852 is a premium-grade fuel pump module assembly built to Delphi's fuel delivery standards.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2023 | Toyota | Corolla | XSE | 2.0L | L4 | — |
| 2022 | Toyota | Corolla | XSE | 2.0L | L4 | — |
| 2021 | Toyota | Corolla | XSE | 2.0L | L4 | — |
| 2020 | Toyota | Corolla | XSE | 2.0L | L4 | — |
| 2019 | Toyota | Corolla | XSE | 2.0L | L4 | — |
