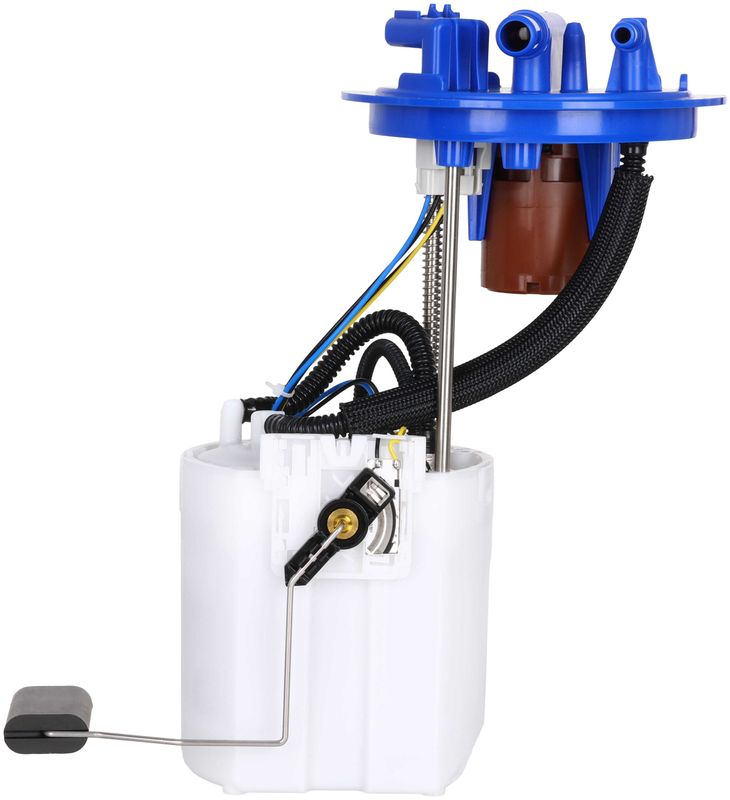

Delphi FG2853 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ranger

The Delphi FG2853 fuel pump module assembly is a specific-fit, in-tank replacement for 2019-2023 Ford Ranger models. It combines the pump, fuel sending unit, regulator, seal, strainer, and module components needed to restore consistent fuel delivery and tank level reporting.

Built for 12-volt gasoline applications, this Delphi fuel pump module assembly supports Ford Ranger fuel system service with OE-style fitment and a turbine pump design. Delphi FG2853 is a practical choice when diagnosing low fuel pressure, erratic fuel gauge readings, or pump-related drivability concerns on the Ford Ranger.

Key Features

• Fits 2019-2023 Ford Ranger, N/A
• Fuel pump module assembly for in-tank gasoline applications
• Fuel sending unit included for tank level signal restoration
• Regulator included for integrated fuel pressure control
• Turbine-style electric pump design with 12-volt operation
• Includes gasket or seal, strainer, float arm, splices, wire harness, and instruction sheet
• Quick-connect outlet with 3 outlets and 0.375 in. outlet outside diameter
• Premium grade construction with plastic housing and female connector
• Delphi FG2853 cross-references KB3Z 9H307-C and PFS1441 for the same application

Detailed Description

Delphi FG2853 is a fuel pump module assembly engineered for specific-fit service on the Ford Ranger. It is an in-tank, electric gasoline fuel pump module with a turbine pump design, internal strainer, and integrated regulator. The module uses a 12-volt electrical setup, blade terminals, a rectangular female connector, and quick-connect outlet connections for straightforward system integration.

Delphi has supplied fuel delivery components to global vehicle manufacturers for decades, and this module reflects that OE-focused background. The FG2853 is built for fuel system service where accurate fuel level feedback matters, since the fuel sending unit is included. For 2019-2023 Ford Ranger fuel pump replacement, Delphi FG2853 provides the core components needed to address pump wear and fuel delivery inconsistency.

Common Issues This Part Can Help Solve

• Hard starting caused by weak fuel pressure
• Engine hesitation or stalling from inconsistent fuel delivery
• Inaccurate fuel gauge readings from a worn sending unit
• Fuel pump noise or reduced pump output
• Fuel system leaks at the module seal or connection points

Installation Notes and Tips

Confirm the vehicle is a 2019-2023 Ford Ranger before ordering. This is a specific-fit in-tank module, so verify connector style, outlet configuration, and fuel system layout against the original unit. Replace the seal during installation and inspect the tank opening, wiring, and fuel lines before reassembly.

Because the module includes a fuel sending unit and regulator, take care to align the float arm correctly and follow the instruction sheet during installation. Use clean fuel system practices to reduce contamination during service.

Quality Assurance

Delphi is a Tier 1 supplier with long-standing fuel system manufacturing experience and broad North American market coverage. FG2853 is built as a premium-grade fuel pump module assembly for direct replacement service on the Ford Ranger.
