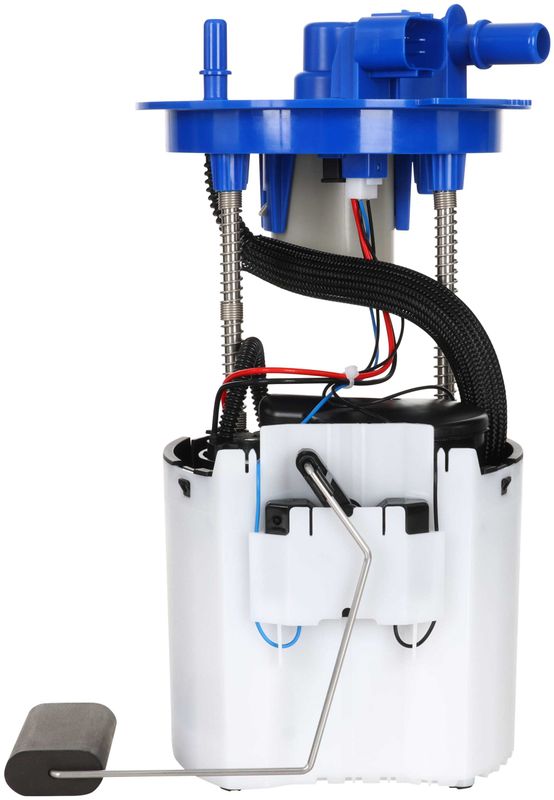

Delphi FG2854 Fuel Pump Module Assembly
| Brand | Delphi FG2854 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.374 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 81 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 250 |
| Resistance Ohms Full | 40 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 74 |
| Fits | Buick and Chevrolet · 12 vehicles |
Specific-fit design. Built for targeted fuel system service with a direct replacement layout.
Complete module. Includes the pump, sending unit, regulator, strainer, and fuel filter.
Premium construction. Uses a plastic housing and nitrile rubber seal material for service use.
Cross-references 23314208, 23314214 and 23406970 for the same application. See all 5.
Fuel Pump Module Assembly Overview
Delphi FG2854 is a specific-fit fuel pump module assembly for gasoline applications. It combines the pump, fuel sending unit, regulator, strainer, and fuel filter in one in-tank unit for direct service replacement on select Chevrolet Malibu, Buick Regal Sportback, and Buick LaCrosse models.
Key Features
- Specific-fit fuel pump module assembly for targeted applications.
- In-tank electric turbine pump with a 12-volt design.
- Includes a fuel sending unit, regulator, strainer, gasket or seal, and fuel filter.
- Quick-connect outlet design with a female rectangular connector and 4 male terminals.
- Premium-grade construction with a plastic housing and nitrile rubber seal material.
Detailed Product Description
Delphi FG2854 is built as an in-tank fuel pump module assembly for gasoline systems that require a complete service unit rather than a standalone pump. The module uses an electric turbine pump design, a quick-connect outlet, and a single rectangular connector to support clean, organized fuel delivery and tank-level signal transfer. With a fuel sending unit and regulator included, FG2854 addresses both fuel supply and level-sensing functions in one assembly. Delphi FG2854 is a practical choice for 2016-2021 Chevrolet Malibu, 2018-2020 Buick Regal Sportback, and 2017-2019 Buick LaCrosse applications where the original module matches this configuration. This part cross-references GM OE numbers 23314208 and 84610427 for the same application.
Common Issues This Part May Resolve
- Hard starting caused by weak or inconsistent fuel delivery.
- Fuel gauge readings that do not match the tank level.
- Loss of fuel pressure within the specified operating range.
- Poor engine performance related to an aging in-tank module.
- Fuel system service needs where the sending unit or regulator has failed.
Installation Notes and Tips
Verify the connector style, outlet type, and tank configuration before installation. This module is specific fit, so match the original equipment layout on the vehicle before ordering. Follow the service manual for fuel system depressurization, tank access, and electrical connection checks. The package contents list a fuel pump module assembly with float arm, seal, splices, wire harness, and instruction sheet.
Quality Assurance
Delphi is a Tier 1 supplier with more than 80 years of fuel system manufacturing experience and a long history of OE-focused fuel technology development. FG2854 reflects that background with premium-grade construction for fuel delivery service.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Chevrolet | Malibu | — | — | — | — | — |
| 2020 | Buick | Regal Sportback | — | — | 2.0L | L4 | — |
| 2020 | Chevrolet | Malibu | — | — | — | — | — |
| 2019 | Buick | LaCrosse | — | — | — | — | — |
| 2019 | Buick | Regal Sportback | — | — | 2.0L | L4 | — |
| 2019 | Chevrolet | Malibu | — | — | — | — | — |
| 2018 | Buick | LaCrosse | — | — | — | — | — |
| 2018 | Buick | Regal Sportback | — | — | 2.0L | L4 | — |
| 2018 | Chevrolet | Malibu | — | — | — | — | — |
| 2017 | Buick | LaCrosse | Premium | FWD | 3.6L | V6 | — |
| 2017 | Chevrolet | Malibu | — | — | 2.0L | L4 | — |
| 2016 | Chevrolet | Malibu | — | — | 2.0L | L4 | — |
