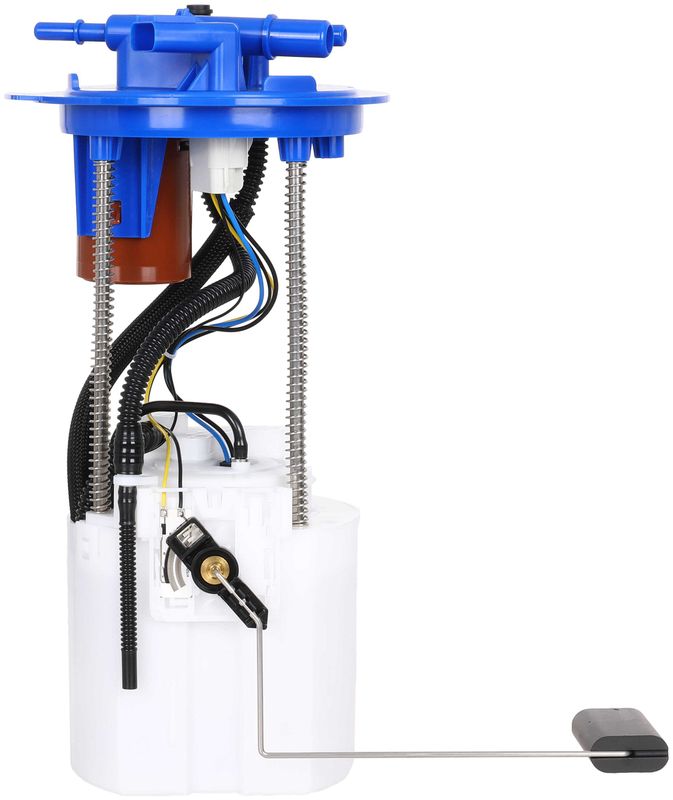

Delphi FG2864 Fuel Pump Module Assembly

Delphi FG2864 Fuel Pump Module Assembly

Delphi FG2864 is a specific-fit fuel pump module assembly for select Ford Transit vans. It combines the fuel pump, sending unit, regulator, strainer, seal, and float arm in one in-tank assembly for gas applications, making it a direct replacement option for service work on Transit-150, Transit-250, Transit-350, and Transit-350 HD models.

Built around Delphi’s fuel system expertise, this module is engineered for 12-volt operation, a turbine pump design, and a maximum pressure rating of 93 psi. The assembly includes a blade-terminal, female connector layout with a quick-connect outlet and a plastic housing.

Key Features

• Specific-fit fuel pump module assembly for Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD
• In-tank electric pump design for gas fuel systems
• Fuel sending unit and regulator included
• Strainer and nitrile rubber seal included
• Quick-connect outlet with 3 outlet ports
• 12-volt operation with 4-terminal blade connection
• Turbine pump design with 26 average flow rating
• Maximum pressure: 93 psi; minimum pressure: 84 psi

Detailed Description

Delphi FG2864 is a fuel pump module assembly engineered for direct replacement in 2020-2025 Ford Transit-150, 2020-2025 Ford Transit-250, 2020-2025 Ford Transit-350, and 2020-2025 Ford Transit-350 HD applications. It is an in-tank, premium-grade assembly for gas vehicles and includes the fuel sending unit, regulator, strainer, gasket or seal, and float arm for a complete service-focused replacement.

Delphi has supplied fuel delivery components to global vehicle manufacturers for decades and applies that OE-level experience to fuel management parts such as the FG2864. This part cross-references Ford LK4Z 9H307-A and PFS1469 for the same application.

Common Uses

• Restoring fuel delivery on a Ford Transit-150, Transit-250, Transit-350, or Transit-350 HD
• Replacing a worn in-tank fuel pump module assembly
• Addressing fuel pressure loss in gas-powered Transit vans
• Repairing inaccurate fuel level readings from a failing sending unit
• Correcting drivability issues tied to weak pump output or inconsistent fuel supply

Installation Notes and Tips

Verify the vehicle’s year, model, and fuel system configuration before installation. Delphi FG2864 uses a specific-fit design, so connector style, outlet type, and in-tank mounting should be matched to the original assembly. Inspect the tank opening, electrical connector, and fuel lines before installation, and follow the included instruction sheet during service.

Quality Assurance

Delphi is a Tier 1 supplier with long-standing fuel system manufacturing experience and extensive OE-focused fuel technology development. The FG2864 reflects that background with a premium fuel pump module assembly built for direct-fit service on confirmed Ford Transit applications.
