DelphiPart #: FL0267

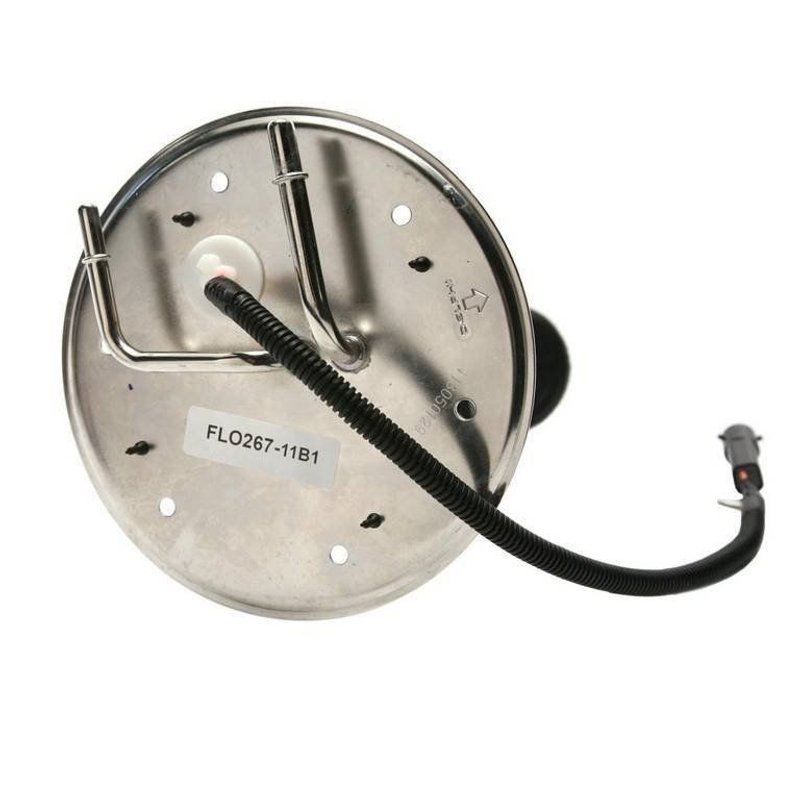

Delphi FL0267 Fuel Tank Sending Unit
⚙️ 20 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$294.23Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford, F-350 Super Duty
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Fuel Tank Sending Unit options
Reliable Fuel Tank Sending Unit for Ford F-350 Super Duty
The Delphi FL0267 fuel tank sending unit is designed specifically for diesel-powered Ford F-350 Super Duty trucks. This standard replacement part ensures accurate fuel level readings and reliable performance for your vehicle's fuel system.
Key Features of Delphi FL0267 Fuel Tank Sending Unit
- Compatible with diesel fuel systems
- Includes fuel level sender assembly with float arm
- Two male pin terminals for secure electrical connection
- Resistance range: 15 ohms (empty) to 160 ohms (full)
- Comes with two retainer clips and installation instructions
- Standard replacement grade for dependable operation
- Does not include regulator, strainer, or vapor pressure sensor
- Two outlet ports for fuel flow management
Detailed Description
The Delphi FL0267 fuel tank sending unit is engineered to provide precise fuel level measurement for Ford F-350 Super Duty diesel trucks. Featuring a resistance range from 15 ohms when empty to 160 ohms when full, this sending unit accurately communicates fuel levels to the vehicle’s gauge. The unit includes a fuel level sender assembly complete with a float arm, ensuring consistent and reliable readings. Designed with two male pin terminals, it offers a secure and straightforward electrical connection. While the unit does not include a regulator, strainer, or vapor pressure sensor, it is built to meet standard replacement specifications for fuel tank sending units.
Common Applications and Issues Addressed
- Inaccurate or fluctuating fuel gauge readings in Ford F-350 Super Duty diesel trucks
- Faulty or damaged fuel tank sending unit replacement
- Electrical connection issues due to worn or corroded terminals
- Fuel level sender assembly failure causing incorrect fuel level display
- Replacement of OEM sending units without regulator or vapor pressure sensor requirements
Installation Notes and Tips
- Ensure vehicle is parked on a level surface before installation
- Disconnect the battery to prevent electrical shorts during replacement
- Use the included retainer clips to secure the sending unit firmly in place
- Verify terminal connections match the two male pin terminals on the unit
- Consult the provided instructions for proper float arm positioning and installation steps
Quality Assurance and Warranty
Delphi manufactures the FL0267 fuel tank sending unit to meet standard replacement quality standards. Each unit undergoes rigorous testing to ensure accurate fuel level readings and reliable operation in diesel Ford F-350 Super Duty trucks. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
| Brand | Delphi |
| Part Number | FL0267 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Diesel |
| Item Grade | Standard Replacement |
| Outlet Quantity | 2 |
| Package Contents | Fuel Tank Sending Unit w/Float Arm, (2) Retainer Clips, Instruction Sheet |
| Regulator Included | No |
| Resistance Ohms Empty | 15 |
| Resistance Ohms Full | 160 |
| Strainer Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
This part fits 20 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2007 | Ford | F-350 Super Duty | 6.0L | V8 | DIESEL | 176.0" | N/A | ||
| 2006 | Ford | F-350 Super Duty | 6.0L | V8 | DIESEL | 176.0" | N/A | ||
| 2005 | Ford | F-350 Super Duty | DIESEL | 176.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |||
| 2005 | Ford | F-350 Super Duty | DIESEL | 165.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |||
| 2005 | Ford | F-350 Super Duty | DIESEL | 162.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |||
| 2005 | Ford | F-350 Super Duty | DIESEL | 141.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |||
| 2004 | Ford | F-350 Super Duty | DIESEL | 176.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |||
| 2004 | Ford | F-350 Super Duty | DIESEL | 165.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |||
| 2004 | Ford | F-350 Super Duty | DIESEL | 162.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |||
| 2004 | Ford | F-350 Super Duty | DIESEL | 141.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | |||
| 2003 | Ford | F-350 Super Duty | XLT | DIESEL | 176.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2003 | Ford | F-350 Super Duty | XL | DIESEL | 176.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2003 | Ford | F-350 Super Duty | Lariat | DIESEL | 176.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2003 | Ford | F-350 Super Duty | XLT | DIESEL | 165.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2003 | Ford | F-350 Super Duty | XL | DIESEL | 165.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2003 | Ford | F-350 Super Duty | XLT | DIESEL | 162.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2003 | Ford | F-350 Super Duty | XL | DIESEL | 162.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2003 | Ford | F-350 Super Duty | Lariat | DIESEL | 162.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2003 | Ford | F-350 Super Duty | XLT | DIESEL | 141.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. | ||
| 2003 | Ford | F-350 Super Duty | XL | DIESEL | 141.0" | N/A | For vehicles with a Midship Tank, it is suggested to clean the fuel tank before installing a new fuel pump to reduce the risk of contamination and premature failure; Consider using a fuel tank cleaning kit FC01. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
6C34 9275-EA6C3Z 9275-EAA27131DFL0267FG199AP76607TPS-201
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
