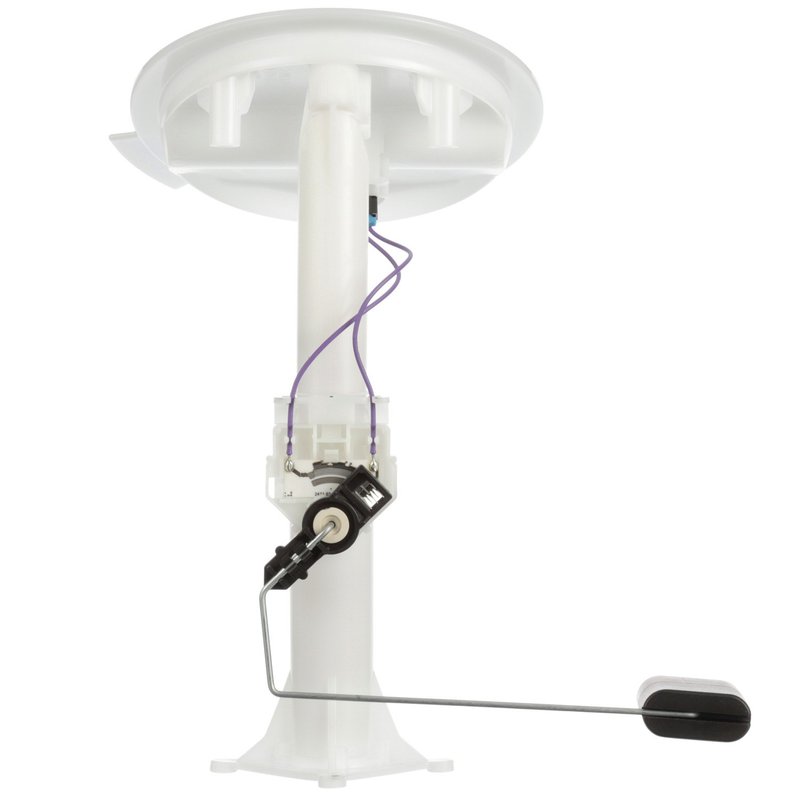

Delphi FT4007 Fuel Transfer Unit - Right

Delphi FT4007 Fuel Transfer Unit Overview

The Delphi FT4007 fuel transfer unit is designed specifically for Ford Mustang models requiring reliable in-tank fuel delivery. This fuel pump assembly includes a fuel level sender assembly and features a quick connect outlet for efficient installation and operation.

• Compatible with Ford Mustang vehicles
• In-tank fuel transfer unit for gas fuel type
• Includes fuel level sender assembly with float arm
• Quick connect outlet with 0.500 inch outside diameter
• Two male blade terminals for electrical connection
• Standard replacement grade component

Technical Details and Features

The Delphi FT4007 fuel transfer unit operates with a resistance range of 180 ohms when empty and 10 ohms when full, ensuring accurate fuel level readings. It is designed for gasoline fuel systems and does not include a regulator, gasket, seal, strainer, or vapor pressure sensor. The unit features a single quick connect outlet with a 0.500 inch outside diameter and two male blade terminals for secure electrical connections. This assembly is positioned on the right side of the fuel tank and comes with an instruction sheet for proper installation.

Applications and Problem Solving

This fuel transfer unit is intended for use in Ford Mustang vehicles to address common fuel system issues such as:

• Inaccurate fuel level readings due to faulty sender units
• Fuel delivery interruptions caused by worn or failing fuel pumps
• Electrical connection problems with damaged terminals
• Replacement of standard in-tank fuel transfer units
• Maintaining proper fuel flow in gasoline-powered systems

Installation Notes and Tips

Installation of the Delphi FT4007 fuel transfer unit requires careful handling to avoid damage to the float arm and terminals. Ensure the unit is installed on the right side of the fuel tank as specified. Use the included instruction sheet for guidance on connecting the two male blade terminals and securing the quick connect outlet. Since no gasket or seal is included, verify the existing seals are in good condition or replace them as needed to prevent leaks.

Quality Assurance and Warranty

Delphi manufactures the FT4007 as a standard replacement fuel transfer unit, meeting OEM specifications for fit and function. While no specific warranty details are provided here, Delphi products typically adhere to industry quality standards to ensure durability and reliable performance in Ford Mustang fuel systems.
