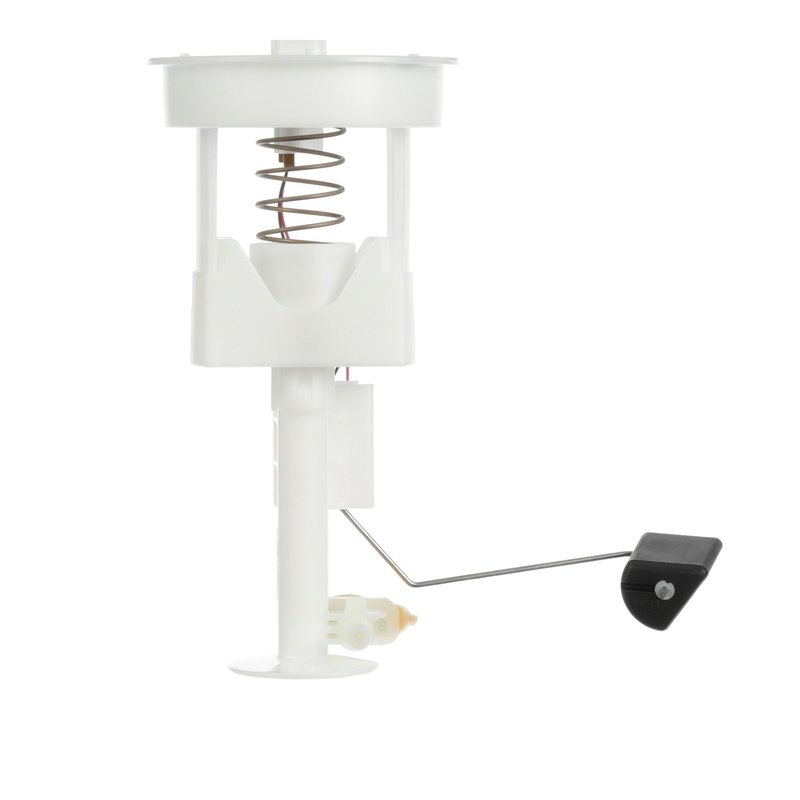

Delphi FT4019 Fuel Transfer Unit - Right

Reliable Fuel Transfer Unit for Acura and Honda Vehicles

The Delphi FT4019 fuel transfer unit is designed for precise fuel delivery in select Acura and Honda models. Engineered as an in-tank component, this unit ensures consistent fuel flow and accurate fuel level readings for vehicles like the Honda Accord Crosstour and Acura TL.

• Compatible with Acura and Honda models including Accord Crosstour, Crosstour, and TL
• In-tank fuel transfer unit with external strainer for clean fuel delivery
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Outlet hose diameter of 0.313 inches with one outlet for efficient fuel flow
• Four male blade terminals for secure electrical connections
• Comes with gasket, seal, lock ring, spacer, and installation instructions
• Standard replacement grade part designed for reliable performance

Detailed Product Features and Specifications

The Delphi FT4019 fuel transfer unit is specifically designed for gasoline fuel systems and does not include a regulator or vapor pressure sensor. It features an external strainer to prevent debris from entering the fuel system, enhancing longevity and performance. The unit’s resistance ranges from 440 ohms when empty to 10 ohms when full, providing accurate fuel level readings through the included sender assembly. The outlet is a single hose type with a 0.313-inch outside diameter, positioned on the right side of the tank. Electrical connections are made via four male blade terminals, ensuring compatibility with factory wiring harnesses.

Applications and Common Issues Addressed

• Replacement for faulty or failing fuel transfer units in Acura TL and Honda Accord Crosstour
• Resolves inaccurate fuel gauge readings caused by damaged sender assemblies
• Eliminates fuel delivery interruptions due to clogged or damaged strainers
• Addresses electrical connection issues with secure blade terminal design
• Prevents fuel leaks with included gasket and seal components

Installation Notes and Tips

Installation of the Delphi FT4019 requires removal of the fuel tank or access through the service panel, depending on vehicle configuration. Ensure the gasket and seal are properly seated to prevent leaks. Verify the orientation of the float arm and position the unit on the right side of the tank as specified. Use the included lock ring and spacer to secure the unit firmly. Electrical connections should be checked for corrosion or damage before attaching the blade terminals.

Quality Assurance and Warranty Information

Delphi manufactures the FT4019 fuel transfer unit to meet or exceed OEM standards for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure durability and reliable operation in compatible Acura and Honda vehicles. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
