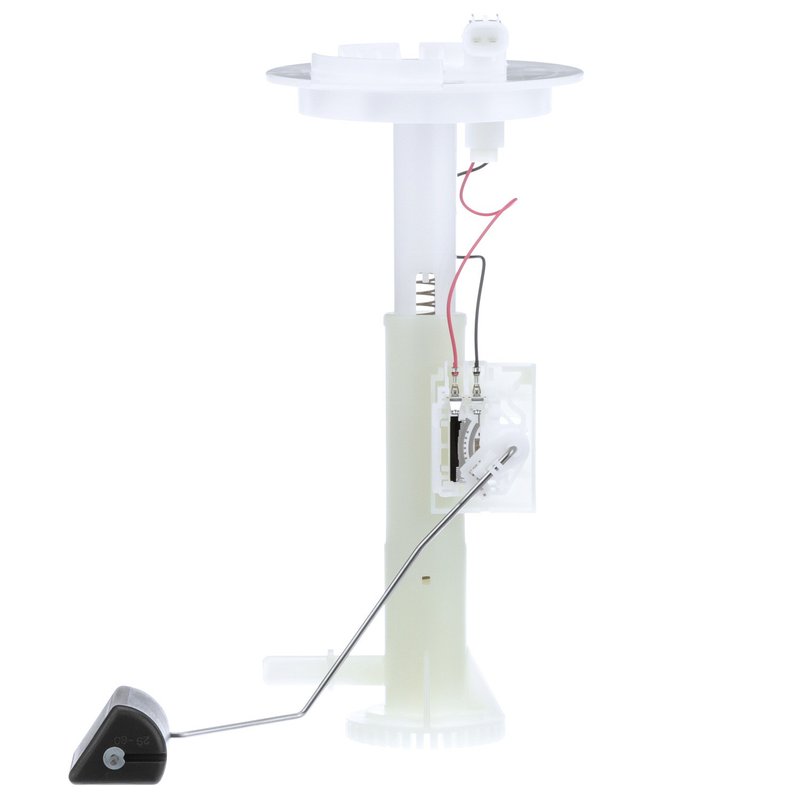

Delphi FT4020 Fuel Transfer Unit - Right

Reliable Fuel Transfer Unit for Dodge Journey

The Delphi FT4020 fuel transfer unit is designed specifically for Dodge Journey models, providing a dependable in-tank fuel delivery solution. Engineered for gasoline fuel systems, this unit ensures accurate fuel level readings and consistent fuel flow.

• Compatible with Dodge Journey fuel systems
• In-tank fuel transfer unit with right-side position
• Includes fuel level sender assembly with float arm
• Outlet outside diameter of 0.500 inches with quick connect outlet
• Two male blade terminals for secure electrical connection
• Comes with gasket/seal for proper installation
• Standard replacement grade for reliable performance

Product Features and Specifications

The Delphi FT4020 fuel transfer unit is designed for gasoline fuel types and features a quick connect outlet with a 0.500-inch outside diameter. It includes a fuel level sender assembly with a float arm to provide accurate fuel level readings. The unit is positioned on the right side of the fuel tank and is intended for in-tank installation. Electrical connections are made via two male blade terminals, ensuring a secure and reliable connection. A gasket or seal is included to maintain proper sealing and prevent leaks. This standard replacement grade unit does not include a regulator or strainer, focusing on essential fuel transfer functions.

Common Applications and Problem Resolution

• Replacement for faulty or failing fuel transfer units in Dodge Journey vehicles
• Resolves inaccurate fuel level readings caused by damaged sender assemblies
• Addresses fuel delivery interruptions due to worn or defective in-tank units
• Prevents fuel leaks with included gasket/seal for proper installation
• Restores proper electrical connectivity with blade terminal design

Installation Notes and Tips

When installing the Delphi FT4020 fuel transfer unit, ensure the unit is positioned on the right side of the fuel tank as specified. Use the included gasket or seal to prevent fuel leaks and maintain system integrity. Verify that the two male blade terminals are properly connected to the vehicle’s wiring harness for accurate fuel level readings and reliable operation. This unit is designed for in-tank installation and is compatible with gasoline fuel systems only.

Quality Assurance and Warranty

Delphi manufactures the FT4020 fuel transfer unit to meet standard replacement grade specifications, ensuring consistent performance and durability. The unit undergoes quality control testing to verify electrical resistance values, with 250 ohms when empty and 40 ohms when full, supporting accurate fuel level measurement. Warranty details should be confirmed with the parts provider or manufacturer for coverage specifics.
