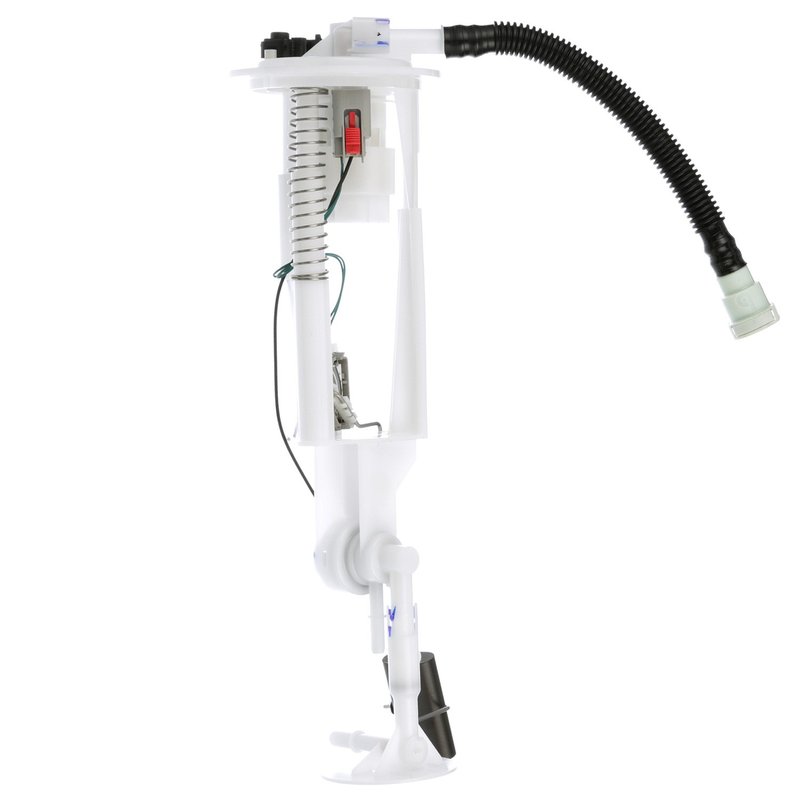

Delphi FT4026 Fuel Transfer Unit - Right
| Brand | Delphi FT4026 |
|---|---|
| Position | Right |
| Outlet Outside Diameter | 0.375 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Strainer Included | No |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard replacement |
| Package Contents | Fuel transfer unit w/float arm, seal, instruction sheet |
| Vapor Pressure Sensor | Yes |
| Product line | Discontinued |
| Fits | Cadillac and Chevrolet · 7 vehicles |
Standard replacement. Built for in-tank fuel delivery service with OE heritage behind the design.
Complete service unit. Includes the fuel level sender, regulator, seal, and vapor pressure sensor.
Quick-connect outlet. Uses a 4-terminal blade connection for straightforward electrical hookup.
Cross-references Airtex Fuel Pumps E3579M, 19258630 and 19258632 for the same application. See all 9.
Fuel transfer unit overview
This Delphi fuel transfer unit is a standard replacement component for in-tank fuel delivery systems. It is built for gas applications and includes an integrated fuel level sender, regulator, and vapor pressure sensor for a complete service solution.
Fits 2004-2006 Cadillac XLR, right and 2004-2006 Chevrolet Corvette, right. Fits 2003 Chevrolet Corvette, right with FFS fuel system.
Key features
- In-tank fuel transfer unit for gas applications
- Integrated fuel level sender assembly with blade terminals
- Quick-connect outlet design with two outlets
- Regulator included for simplified fuel system service
- Seal included for proper tank sealing during replacement
- Vapor pressure sensor included
Detailed description
Delphi FT4026 is a standard replacement fuel transfer unit engineered for specific right-side applications in the Cadillac XLR and Chevrolet Corvette. It uses a 4-terminal male blade connection, a quick-connect outlet, and a 0.375-inch outlet outside diameter. The sender resistance range is 40.0 ohms empty to 250.0 ohms full, supporting accurate fuel level reporting.
Delphi draws on more than 100 years of OE experience and long-standing supplier relationships with major automakers. That OE heritage is reflected in the FT4026 fuel transfer unit, part number FT4026, which is built for service work where the original fuel delivery and level-sensing functions need to be restored.
This part cross-references Airtex Fuel Pumps E3579M for the same application.
Common replacement issues
- Fuel level reading errors or an inoperative gauge
- Fuel delivery problems caused by a worn in-tank module
- Seal leakage at the tank opening during pump service
- Faults related to the regulator or vapor pressure sensor
Installation notes and quality
Clean the fuel tank before installation to reduce the risk of contamination-related pump failure and seal problems. For the 2003 Chevrolet Corvette application, a fuel tank cleaning kit is recommended in the fitment notes. Verify the right-side application, outlet style, and electrical connection before installation.
Delphi FT4026 is a standard replacement part backed by OE heritage and broad aftermarket coverage across multiple vehicle years.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Cadillac | XLR | Right | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2006 | Chevrolet | Corvette | Right | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2005 | Cadillac | XLR | Right | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2005 | Chevrolet | Corvette | Right | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2004 | Cadillac | XLR | Right | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2004 | Chevrolet | Corvette | Right | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2003 | Chevrolet | Corvette | Right | FFS Fuel System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.; Discontinued |
