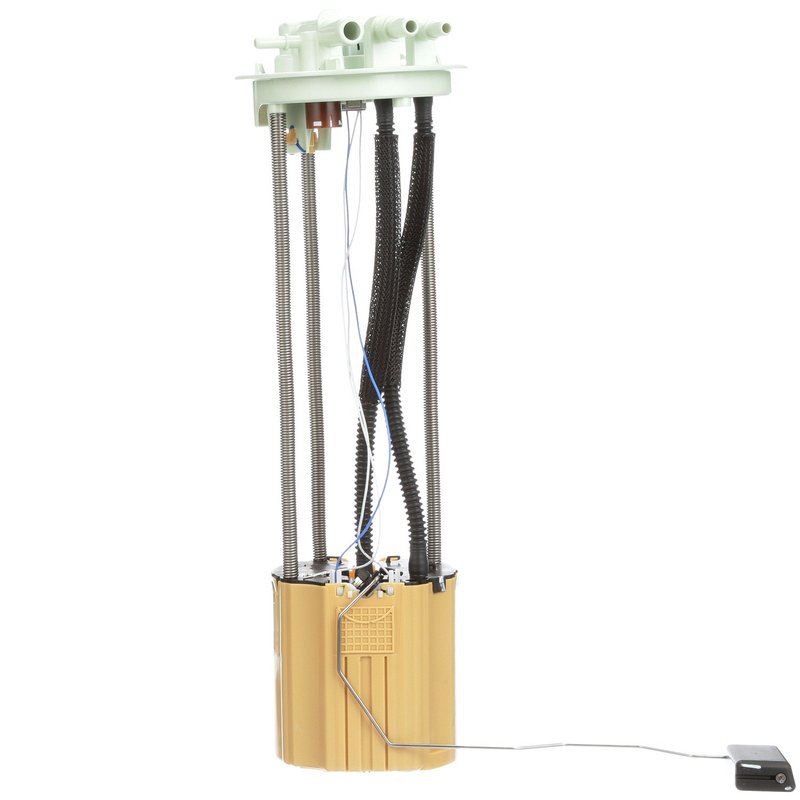

Delphi FT4038 Fuel Transfer Unit

Delphi FT4038 Fuel Transfer Unit Overview

The Delphi FT4038 fuel transfer unit is designed for reliable fuel delivery in diesel-powered Chevrolet and GMC trucks. Engineered as an in-tank fuel pump assembly, it supports heavy-duty models like the Sierra 2500 HD, Sierra 3500 HD, Silverado 2500 HD, and Silverado 3500 HD.

• Compatible with diesel fuel systems
• In-tank fuel transfer unit with integrated fuel level sender assembly
• Outlet outside diameter of 0.375 inches with quick connect fittings
• Includes gasket or seal for secure installation
• Four male blade terminals for electrical connection
• Standard replacement grade for direct fit and function

Technical Details and Features

The FT4038 fuel transfer unit features a 0.375-inch outlet outside diameter and four quick connect outlets, ensuring efficient fuel flow and easy connection to the fuel system. It is designed specifically for diesel fuel applications and includes a fuel level sender assembly to provide accurate fuel level readings. The unit has four male blade terminals, supporting a secure electrical connection without a regulator or vapor pressure sensor. A gasket or seal is included to maintain a tight, leak-free installation. The inlet type is a strainer, although the unit itself does not include a separate strainer component.

Compatible Vehicles and Applications

This fuel transfer unit is compatible with the following heavy-duty trucks:

• Chevrolet Sierra 2500 HD and 3500 HD
• GMC Sierra 2500 HD and 3500 HD
• Chevrolet Silverado 2500 HD and 3500 HD
• GMC Silverado 2500 HD and 3500 HD

It is designed to replace the original in-tank fuel pump assembly in these diesel models, ensuring proper fuel delivery and fuel level monitoring.

Common Issues Addressed by the FT4038 Fuel Transfer Unit

• Intermittent or failed fuel delivery causing engine performance issues
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel leaks from worn or damaged seals
• Electrical connection problems from corroded or damaged terminals
• Reduced fuel pump efficiency in diesel fuel systems

Installation Notes and Tips

Installation of the Delphi FT4038 fuel transfer unit requires removal of the fuel tank to access the in-tank assembly. Ensure the gasket or seal included is properly seated to prevent leaks. Verify the four male blade terminals are securely connected to the vehicle’s wiring harness. Use caution when handling the float arm and fuel level sender assembly to avoid damage. Follow the vehicle manufacturer’s service manual for specific removal and installation procedures.

Quality Assurance and Warranty

The Delphi FT4038 is a standard replacement grade fuel transfer unit designed to meet OEM specifications for fit and function. It undergoes quality control testing to ensure reliable operation in diesel fuel systems. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
