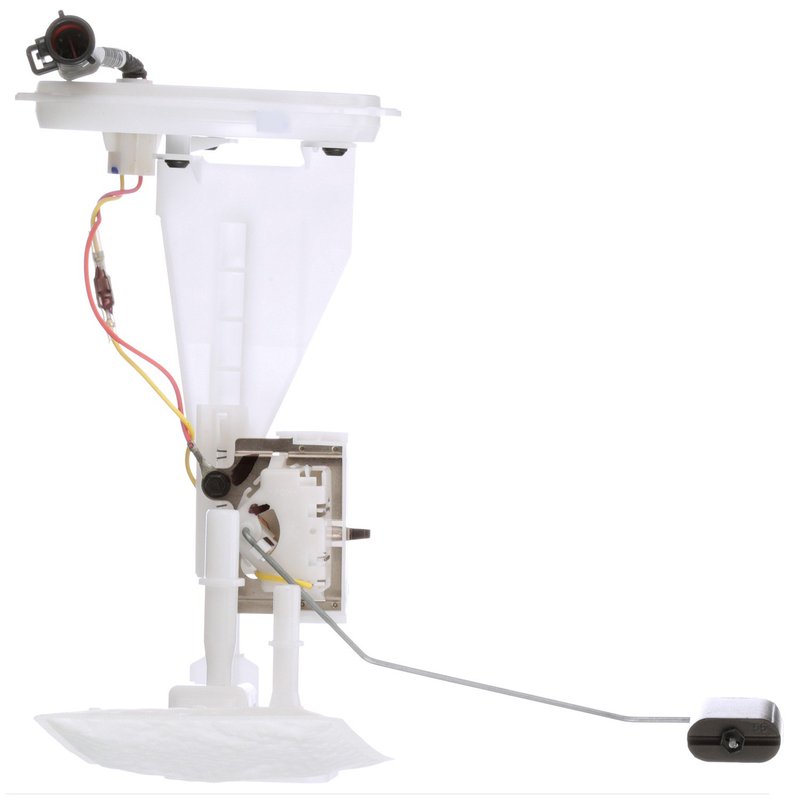

Delphi FT4045 Fuel Transfer Unit - Left
| Brand | Delphi FT4045 |
|---|---|
| Position | Left |
| Outlet Outside Diameter | 0.375 |
| Fuel Type | Gas |
| Regulator Included | No |
| Terminal Type | Pin |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Terminal Gender | Male |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard replacement |
| Package Contents | Fuel transfer unit w/float arm, instruction sheet |
| Vapor Pressure Sensor | No |
| Product line | Discontinued |
| Fits | Ford and Lincoln · 6 vehicles |
OE heritage. Built from Delphi's long experience supplying major automakers.
Integrated sender. Includes a fuel level sender assembly for level monitoring.
Standard replacement. Made for in-tank gasoline fuel system service.
Cross-references 3W4Z 9275-AA, 3W4Z 9275-AB and CFT4045 for the same application. See all 4.
Fuel Transfer Unit Overview
This Delphi fuel transfer unit is a standard replacement for in-tank gasoline applications that require an integrated fuel level sender. It is built with OE heritage and fitment for left-side applications on select Ford Thunderbird and Lincoln LS models.
Key Features
- Standard replacement fuel transfer unit for in-tank gasoline systems.
- Includes a fuel level sender assembly for accurate tank level reporting.
- Quick-connect outlet design with two male pin terminals.
- Fuel transfer unit with float arm and instruction sheet included.
- Delphi FT4045 is backed by OE experience from a supplier to major automakers.
Detailed Description
Delphi FT4045 is engineered as an in-tank fuel transfer unit for gasoline applications. It uses a quick-connect outlet, pin-style terminals, and a float arm-equipped sender assembly to support fuel delivery and level monitoring in one assembly. The unit is listed as a standard replacement and is intended for left-side fitment on 2003-2005 Ford Thunderbird and 2003-2005 Lincoln LS models. This part cross-references Monroe Shocks & Struts (e.g., 3W4Z 9275-AA, 3W4Z 9275-AB) for the same application.
What It Is Used For
- Restoring fuel delivery when the original transfer unit is worn or failing.
- Correcting inaccurate fuel level readings from a damaged sender assembly.
- Replacing a unit with damaged outlet connections or terminal wear.
- Addressing drivability issues caused by inconsistent in-tank fuel transfer.
Installation Notes and Tips
Fits 2003-2005 Ford Thunderbird, left. Fits 2003-2005 Lincoln LS, left. The fitment notes specify cleaning the fuel tank before installation to reduce the risk of future seal problems. Verify the outlet style, terminal configuration, and left-side application before installation. Delphi FT4045 should be matched to the vehicle's original fuel system layout and connector style.
Quality Assurance
Delphi draws on 100 years of OE experience and a long history of supplying major automakers. FT4045 reflects that OE-based engineering approach in a standard replacement fuel transfer unit.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Ford | Thunderbird | Left | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2005 | Lincoln | LS | Left | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2004 | Ford | Thunderbird | Left | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2004 | Lincoln | LS | Left | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2003 | Ford | Thunderbird | Left | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2003 | Lincoln | LS | Left | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| No rows match your filter. | ||||
