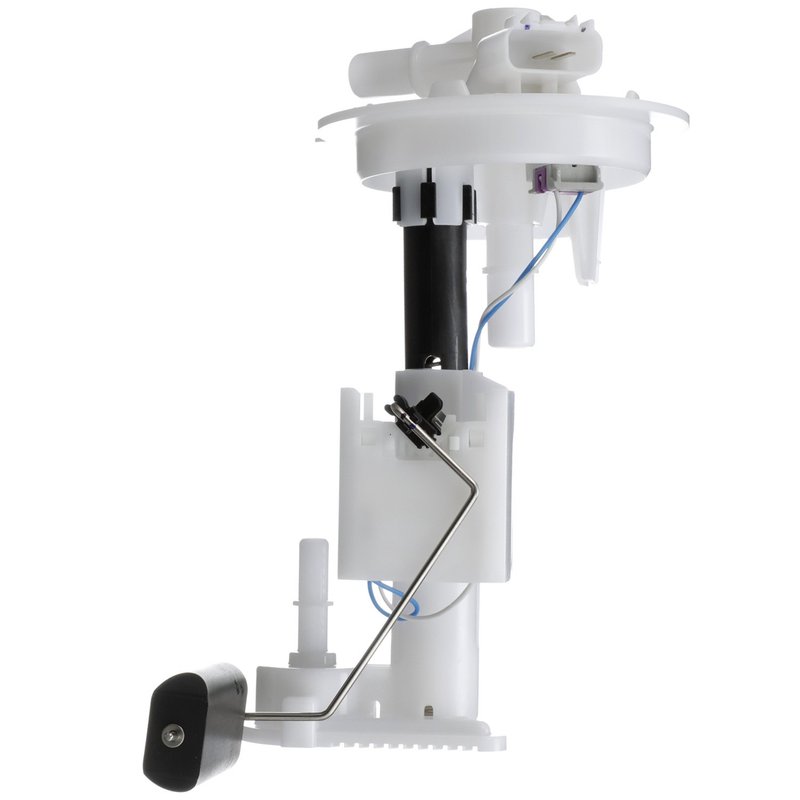

Delphi FT4092 Fuel Transfer Unit - Left

Delphi FT4092 Fuel Transfer Unit Overview

The Delphi FT4092 Fuel Transfer Unit is designed specifically for in-tank fuel delivery systems in Buick Envision models. This fuel transfer unit ensures accurate fuel level readings and reliable fuel flow for gasoline-powered vehicles, making it a practical replacement part for maintaining your vehicle's fuel system performance.

• Compatible with Buick Envision fuel systems
• In-tank fuel transfer unit with integrated fuel level sender assembly
• Two male blade terminals for secure electrical connections
• Includes gasket/seal for proper installation
• Quick connect outlet type with 0.375 inch outside diameter
• Standard replacement grade part
• Fuel type: Gasoline
• Left position installation

Detailed Product Description

The Delphi FT4092 is an in-tank fuel transfer unit engineered for gasoline fuel systems, specifically compatible with the Buick Envision. It features a fuel level sender assembly that provides accurate fuel level readings, with resistance values ranging from 40 ohms when empty to 250 ohms when full. The unit includes two quick connect outlets with a 0.375 inch outside diameter, facilitating efficient fuel flow. Electrical connections are made via two male blade terminals, ensuring a secure and reliable interface. A gasket or seal is included to maintain proper sealing and prevent leaks during installation. This standard replacement grade fuel transfer unit is positioned on the left side of the tank and does not include a fuel pressure regulator or vapor pressure sensor.

Common Applications and Issues Addressed

• Replacement for faulty or damaged fuel transfer units in Buick Envision
• Resolves inaccurate fuel gauge readings due to sender assembly failure
• Addresses fuel delivery interruptions caused by worn or leaking components
• Prevents fuel leaks with included gasket/seal
• Restores proper electrical connectivity with blade terminal design

Installation Notes and Tips

When installing the Delphi FT4092 fuel transfer unit, ensure the unit is positioned on the left side of the fuel tank as specified. Verify that the gasket or seal is properly seated to prevent fuel leaks. Connect the two male blade terminals securely to the vehicle’s wiring harness. The quick connect outlets should be attached firmly to the corresponding fuel lines with 0.375 inch outside diameter fittings. Follow the included instruction sheet carefully for proper installation procedures.

Quality Assurance and Warranty

Delphi manufactures the FT4092 fuel transfer unit to meet standard replacement part specifications, ensuring reliable performance and durability. The unit undergoes quality control testing to verify electrical resistance and fuel delivery functionality. While specific warranty details are not provided, Delphi parts typically come with manufacturer-backed coverage to protect against defects in materials and workmanship.
