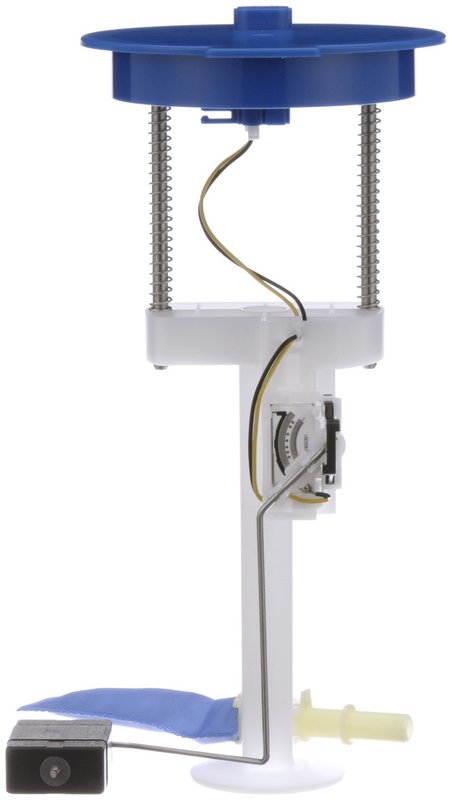

Delphi FT4113 Fuel Transfer Unit - Right

Fuel Transfer Unit for 2019 Acura RDX

Delphi FT4113 is an in-tank fuel transfer unit for gas applications, built for the right side of the 2019 Acura RDX. It includes the fuel level sender assembly, strainer, and seal, making it a direct replacement option for restoring fuel delivery and tank level reporting.

• In-tank fuel transfer unit for gasoline systems
• Fits 2019 Acura RDX, right
• Includes fuel level sender assembly, strainer, and seal
• Quick-connect outlet with one outlet port
• 4-terminal blade connection with square female connector
• Plastic housing for OE-style packaging
• Resistance range: 487 ohms empty, 10 ohms full

Product Details

Delphi FT4113 is engineered as a fuel transfer unit with an external strainer and a quick-connect outlet. The assembly is configured for in-tank mounting and uses a blade-style terminal layout with four terminals, a square connector shape, and a female connector interface. The included fuel level sender assembly helps restore accurate tank level feedback, while the seal and strainer support a complete service replacement. Delphi FT4113 is a direct-fit choice for the 2019 Acura RDX right-side application.

This part cross-references Honda/Acura OE numbers 17049-TJB-A01 and 17049TJBA00 for the same application.

Common Fuel System Issues It Can Address

• Inaccurate fuel gauge readings from a worn sender assembly
• Fuel delivery problems caused by a failing in-tank transfer unit
• Restricted fuel flow from a deteriorated strainer
• Fuel odor or seepage at the tank module seal
• Poor electrical connection at the fuel module terminals

Installation Notes and Tips

Confirm the right-side position before installation and verify connector style, outlet type, and terminal count against the original module. Replace the tank seal during service, and inspect the fuel lines and electrical connector for wear before reassembly. Because this is an in-tank fuel component, cleanliness during installation is important to help prevent contamination of the fuel system.

Quality Assurance

Delphi has supplied fuel delivery components to global vehicle manufacturers for decades and brings OE-focused engineering to fuel management parts. FT4113 reflects that background with application-specific fitment for the 2019 Acura RDX and a sender assembly configured for the listed resistance range.
