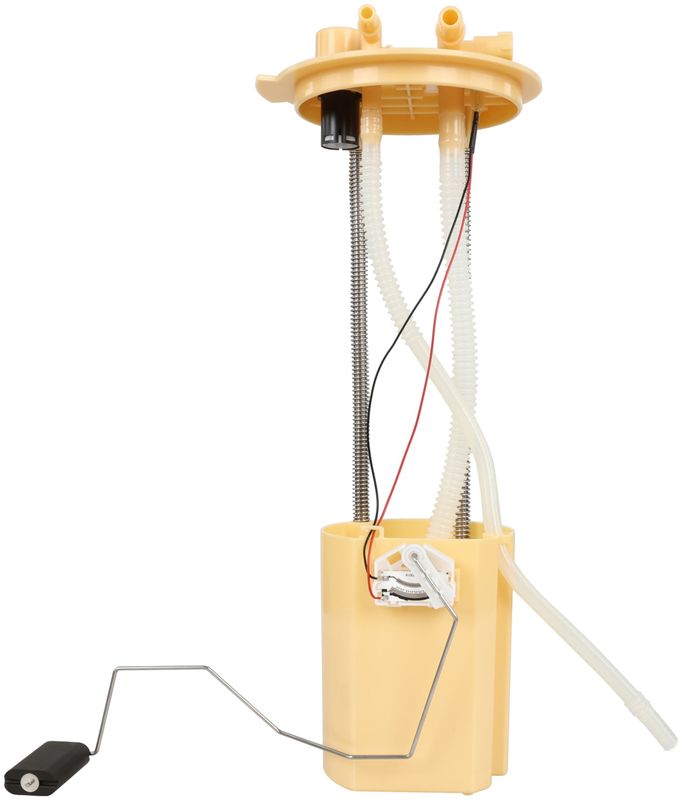

Delphi FT4135 Fuel Transfer Unit

Fuel Transfer Unit for Nissan TITAN XD

The Delphi FT4135 fuel transfer unit is built for in-tank diesel fuel delivery on 2016-2019 Nissan TITAN XD applications. It combines the fuel transfer unit and float arm in one OE-style assembly for accurate fuel level signaling and dependable fuel system operation.

Key Features

• Fits 2016-2019 Nissan TITAN XD, in tank
• Diesel fuel application
• Quick connect outlet design with 3 outlets
• Blade terminals, 2-terminal electrical connection
• Plastic housing with rectangle connector shape
• Float arm included; instruction sheet included
• Resistance range: 286.0 ohms empty, 49.0 ohms full
• Delphi FT4135 fuel transfer unit for OE-style replacement needs

Detailed Description

Delphi FT4135 is an in-tank diesel fuel transfer unit engineered for the 2016-2019 Nissan TITAN XD. It uses a quick connect outlet layout and a 2-terminal blade connection, with a rectangle female connector and male terminals for straightforward integration into the vehicle’s fuel system. The unit includes the float arm and is specified with 286.0 ohms empty and 49.0 ohms full for fuel level reporting. Delphi’s long history as an OE supplier and fuel-system manufacturer supports consistent fit and function for diesel fuel management applications. This part cross-references Nissan 25060-EZ40A and 25060-EZ41A for the same application.

What It Helps Address

• Inaccurate fuel level readings on a Nissan TITAN XD
• Fuel delivery issues related to a worn in-tank transfer unit
• Electrical connection problems at the fuel sender interface
• Diesel fuel system service needs requiring an OE-style replacement
• Float arm wear affecting gauge response

Installation Notes and Tips

Confirm the vehicle is a 2016-2019 Nissan TITAN XD before ordering. Match the quick connect outlet style, 2-terminal blade connection, and in-tank configuration to the original unit. Inspect the tank opening, electrical connector, and fuel lines during service, and follow the included instruction sheet during installation.

Quality Assurance

Delphi is a Tier 1 supplier to major global vehicle manufacturers and has produced fuel delivery components for more than 80 years. The FT4135 reflects that OE-focused background in diesel fuel management and in-tank fuel system design.
