Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

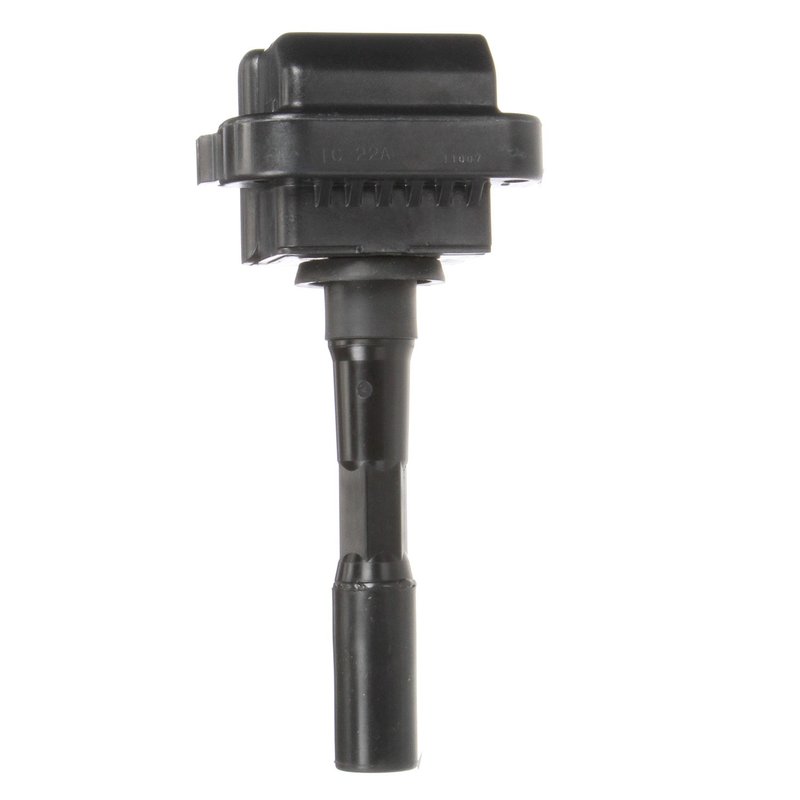

Delphi GN10545 Ignition Coil - Left
| Brand | Delphi GN10545 |
|---|---|
| Position | Left |
| Coil Type | Coil on plug ignition |
| Terminal Type | Blade |
| Terminal Quantity | 3 |
| Terminal Gender | Male |
| Package Contents | Ignition coil, instruction sheet |
| Fits | Acura · 23 vehicles |
OE heritage. Built from Delphi's century of original-equipment experience.
Coil-on-plug design. Direct spark delivery for a clean ignition interface.
Blade terminal connection. 3-terminal male layout for secure electrical contact.
Cross-references Beck/Arnley 178-8496, Cloyes C995 and Karlyn 5156 for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Ignition Coil Overview
Delphi GN10545 is a coil-on-plug ignition coil built with OE heritage and application-specific engineering. It is a direct-fit ignition coil for select Acura applications, including left-side coverage where specified.
Key Features
- Coil-on-plug ignition coil design for direct spark delivery.
- 3-terminal male blade connection for secure electrical contact.
- Includes an instruction sheet for reference during installation.
- OE experience from Delphi, a supplier to major automakers.
- Part number GN10545 for accurate ordering and cross-reference.
Detailed Description
This Delphi ignition coil is engineered for vehicles that use a coil-on-plug setup, where the coil mounts directly at the spark plug location to deliver ignition energy efficiently. The blade-style, 3-terminal male connector supports a straightforward electrical interface, and the left-side fitment is listed for 1995-2005 Acura NSX. It also cross-references Standard Ignition UF-238 for the same application. Delphi GN10545 combines OE experience with aftermarket serviceability for Acura RL and Acura TL applications where optional fitment is listed.
What It Helps Address
- Misfire conditions caused by weak or inconsistent spark output.
- Hard starting related to ignition coil degradation.
- Rough idle from unstable ignition performance.
- Loss of power under load when ignition energy drops off.
- Check engine light concerns tied to ignition coil faults.
Installation Notes and Tips
Verify the connector style, terminal count, and position before installation. Confirm the vehicle uses a coil-on-plug ignition layout and match the part number GN10545 to the required application. Review the included instruction sheet and inspect the electrical connector and surrounding ignition components before final assembly.
Quality Assurance
Delphi draws on 100 years of OE experience and knowledge developed as a supplier to leading automakers. That OE background is built into this aftermarket ignition coil.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Acura | NSX | Left | — |
| 2004 | Acura | NSX | Left | — |
| 2004 | Acura | RL | N/A | Optional |
| 2003 | Acura | NSX | Left | — |
| 2003 | Acura | RL | N/A | Optional |
| 2002 | Acura | NSX | Left | — |
| 2002 | Acura | RL | N/A | Optional |
| 2001 | Acura | NSX | Left | — |
| 2001 | Acura | RL | N/A | Optional |
| 2000 | Acura | NSX | Left | — |
| 2000 | Acura | RL | N/A | Optional |
| 1999 | Acura | NSX | Left | — |
| 1999 | Acura | RL | N/A | Optional |
| 1998 | Acura | NSX | Left | — |
| 1998 | Acura | RL | N/A | Optional |
| 1998 | Acura | TL | N/A | Optional |
| 1997 | Acura | NSX | Left | — |
| 1997 | Acura | RL | N/A | Optional |
| 1997 | Acura | TL | N/A | Optional |
| 1996 | Acura | NSX | Left | — |
| 1996 | Acura | RL | N/A | Optional |
| 1996 | Acura | TL | N/A | Optional |
| 1995 | Acura | NSX | Left | — |
