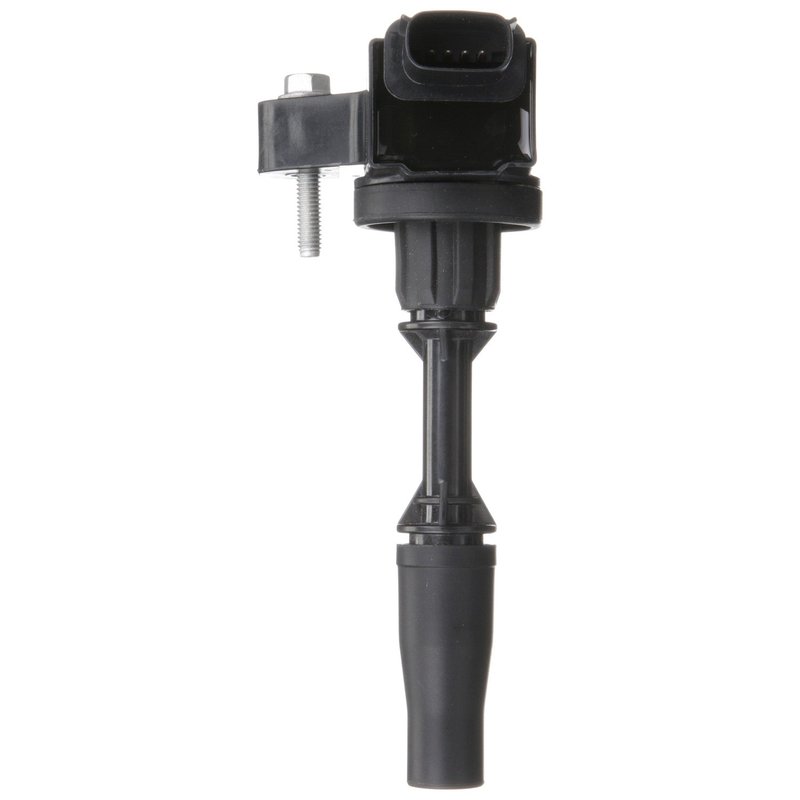

Delphi GN10682 Ignition Coil
| Brand | Delphi GN10682 |
|---|---|
| Coil Type | Coil On Plug Ignition |
| Package Contents | Ignition Coil, Instruction Sheet |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Fits | Buick, Chevrolet, GMC, and Cadillac · 90 vehicles |
Coil-on-plug design. Delivers direct ignition performance in a compact layout.
Blade terminals. Male terminals provide a straightforward electrical connection.
OE heritage. Built with decades of original-equipment experience.
Cross-references Spectra Premium C-869, Standard Ignition UF-680 and 5C1884 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi GN10682 Ignition Coil Overview
Delphi GN10682 is a coil on plug ignition coil built for direct replacement service on a wide range of GM vehicles. It draws on Delphiโs OE heritage and aftermarket engineering experience to support consistent spark delivery in applications such as the Chevrolet Malibu, Camaro, Colorado, and GMC Canyon.
Use this ignition coil when you need a replacement that matches the original coil-on-plug layout and blade terminal design used on many 2013-2022 GM platforms.
Key Features
- Coil on plug ignition coil for direct spark delivery at the plug
- Blade terminal design with 4 male terminals
- Includes ignition coil and instruction sheet
- Built from Delphi OE experience and supplier knowledge
- Fits a broad range of Chevrolet, GMC, Buick, and Cadillac applications
Fitment and Application Details
Compatible with 2013-2022 Chevrolet Malibu, 2016-2022 Chevrolet Camaro, 2015-2022 Chevrolet Colorado, and 2015-2022 GMC Canyon. It also fits 2019-2021 Chevrolet Blazer, 2017-2021 GMC Acadia, 2018-2020 Chevrolet Equinox, 2018-2020 GMC Terrain, and other listed GM models across the 2013-2022 model years.
Part number GN10682 is also referenced for cross-application use under Delphi GN10682 and can cross-reference Standard Ignition UF-680 for the same application.
What This Ignition Coil Helps Address
- Engine misfire caused by weak or inconsistent spark output
- Rough idle related to ignition coil wear
- Hard starting tied to ignition system breakdown
- Check engine light conditions associated with coil failure codes
- Loss of acceleration response from degraded ignition performance
Installation Notes and Tips
Verify the coil-on-plug layout, terminal style, and vehicle application before installation. Inspect the spark plug, connector, and surrounding ignition components for wear or contamination, since a failing plug or damaged connector can affect coil performance. Follow the included instruction sheet and confirm proper electrical connection at the blade terminals.
Quality Assurance
Delphi builds this ignition coil using knowledge developed through OE supply experience with major automakers. That background is reflected in the design and application coverage of GN10682 for GM vehicles including Chevrolet Malibu and GMC Canyon.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Chevrolet | Camaro | 2.0L | L4 | — | N/A | — |
| 2022 | Chevrolet | Colorado | 2.5L | L4 | — | N/A | — |
| 2022 | Chevrolet | Malibu | 2.0L | L4 | — | N/A | — |
| 2022 | GMC | Canyon | 2.5L | L4 | — | N/A | — |
| 2021 | Chevrolet | Blazer | 2.5L | L4 | — | N/A | — |
| 2021 | Chevrolet | Camaro | 2.0L | L4 | — | N/A | — |
| 2021 | Chevrolet | Colorado | 2.5L | L4 | — | N/A | — |
| 2021 | Chevrolet | Malibu | 2.0L | L4 | — | N/A | — |
| 2021 | GMC | Acadia | 2.5L | L4 | — | N/A | — |
| 2021 | GMC | Canyon | 2.5L | L4 | — | N/A | — |
| 2020 | Buick | Envision | — | — | — | N/A | — |
| 2020 | Buick | Regal Sportback | — | — | — | N/A | — |
| 2020 | Buick | Regal TourX | — | — | — | N/A | — |
| 2020 | Chevrolet | Blazer | — | — | — | N/A | — |
| 2020 | Chevrolet | Camaro | — | — | — | N/A | — |
| 2020 | Chevrolet | Colorado | — | — | — | N/A | — |
| 2020 | Chevrolet | Equinox | — | — | — | N/A | — |
| 2020 | Chevrolet | Malibu | — | — | — | N/A | — |
| 2020 | GMC | Acadia | — | — | — | N/A | — |
| 2020 | GMC | Canyon | — | — | — | N/A | — |
| 2020 | GMC | Terrain | — | — | — | N/A | — |
| 2019 | Buick | Envision | — | — | — | N/A | — |
| 2019 | Buick | LaCrosse | — | — | — | N/A | — |
| 2019 | Buick | Regal Sportback | — | — | — | N/A | — |
| 2019 | Buick | Regal TourX | — | — | — | N/A | — |
| 2019 | Cadillac | ATS | — | — | — | N/A | — |
| 2019 | Cadillac | CTS | — | — | — | N/A | — |
| 2019 | Chevrolet | Blazer | — | — | — | N/A | — |
| 2019 | Chevrolet | Camaro | — | — | — | N/A | — |
| 2019 | Chevrolet | Colorado | — | — | — | N/A | — |
| 2019 | Chevrolet | Equinox | — | — | — | N/A | — |
| 2019 | Chevrolet | Impala | — | — | — | N/A | — |
| 2019 | Chevrolet | Malibu | — | — | — | N/A | — |
| 2019 | Chevrolet | Traverse | — | — | — | N/A | — |
| 2019 | GMC | Acadia | — | — | — | N/A | — |
| 2019 | GMC | Canyon | — | — | — | N/A | — |
| 2019 | GMC | Terrain | — | — | — | N/A | — |
| 2018 | Buick | Envision | — | — | — | N/A | — |
| 2018 | Buick | LaCrosse | — | — | — | N/A | — |
| 2018 | Buick | Regal Sportback | — | — | — | N/A | — |
| 2018 | Buick | Regal TourX | — | — | — | N/A | — |
| 2018 | Cadillac | ATS | — | — | — | N/A | — |
| 2018 | Cadillac | CT6 | — | — | — | N/A | — |
| 2018 | Cadillac | CTS | — | — | — | N/A | — |
| 2018 | Chevrolet | Camaro | — | — | — | N/A | — |
| 2018 | Chevrolet | Colorado | — | — | — | N/A | — |
| 2018 | Chevrolet | Equinox | — | — | — | N/A | — |
| 2018 | Chevrolet | Impala | — | — | — | N/A | — |
| 2018 | Chevrolet | Malibu | — | — | — | N/A | — |
| 2018 | Chevrolet | Traverse | — | — | — | N/A | — |
| 2018 | GMC | Acadia | — | — | — | N/A | — |
| 2018 | GMC | Canyon | — | — | — | N/A | — |
| 2018 | GMC | Terrain | — | — | — | N/A | — |
| 2017 | Buick | Envision | — | — | FLEX | N/A | — |
| 2017 | Buick | Envision | — | — | — | N/A | — |
| 2017 | Buick | Regal | — | — | — | N/A | — |
| 2017 | Cadillac | ATS | — | — | — | N/A | — |
| 2017 | Cadillac | CT6 | — | — | — | N/A | — |
| 2017 | Cadillac | CTS | — | — | — | N/A | — |
| 2017 | Chevrolet | Camaro | — | — | — | N/A | — |
| 2017 | Chevrolet | Colorado | — | — | — | N/A | — |
| 2017 | Chevrolet | Impala | — | — | — | N/A | — |
| 2017 | Chevrolet | Malibu | — | — | — | N/A | — |
| 2017 | GMC | Acadia | — | — | — | N/A | — |
| 2017 | GMC | Canyon | — | — | — | N/A | — |
| 2016 | Buick | Envision | — | — | — | N/A | — |
| 2016 | Buick | Regal | — | — | — | N/A | — |
| 2016 | Cadillac | ATS | — | — | — | N/A | — |
| 2016 | Cadillac | CT6 | — | — | — | N/A | — |
| 2016 | Cadillac | CTS | — | — | — | N/A | — |
| 2016 | Chevrolet | Camaro | — | — | — | N/A | — |
| 2016 | Chevrolet | Colorado | — | — | — | N/A | — |
| 2016 | Chevrolet | Impala | — | — | — | N/A | — |
| 2016 | Chevrolet | Malibu | — | — | — | N/A | — |
| 2016 | Chevrolet | Malibu Limited | — | — | — | N/A | — |
| 2016 | GMC | Canyon | — | — | — | N/A | — |
| 2015 | Buick | Regal | — | — | — | N/A | — |
| 2015 | Cadillac | ATS | — | — | — | N/A | — |
| 2015 | Cadillac | CTS | — | — | — | N/A | — |
| 2015 | Chevrolet | Colorado | — | — | — | N/A | — |
| 2015 | Chevrolet | Impala | — | — | — | N/A | — |
| 2015 | Chevrolet | Malibu | — | — | — | N/A | — |
| 2015 | GMC | Canyon | — | — | — | N/A | — |
| 2014 | Buick | Regal | — | — | — | N/A | — |
| 2014 | Cadillac | ATS | — | — | — | N/A | — |
| 2014 | Cadillac | CTS | — | — | — | N/A | — |
| 2014 | Chevrolet | Impala | — | — | — | N/A | — |
| 2014 | Chevrolet | Malibu | — | — | — | N/A | — |
| 2013 | Cadillac | ATS | — | — | — | N/A | — |
| 2013 | Chevrolet | Malibu | — | — | — | N/A | — |
