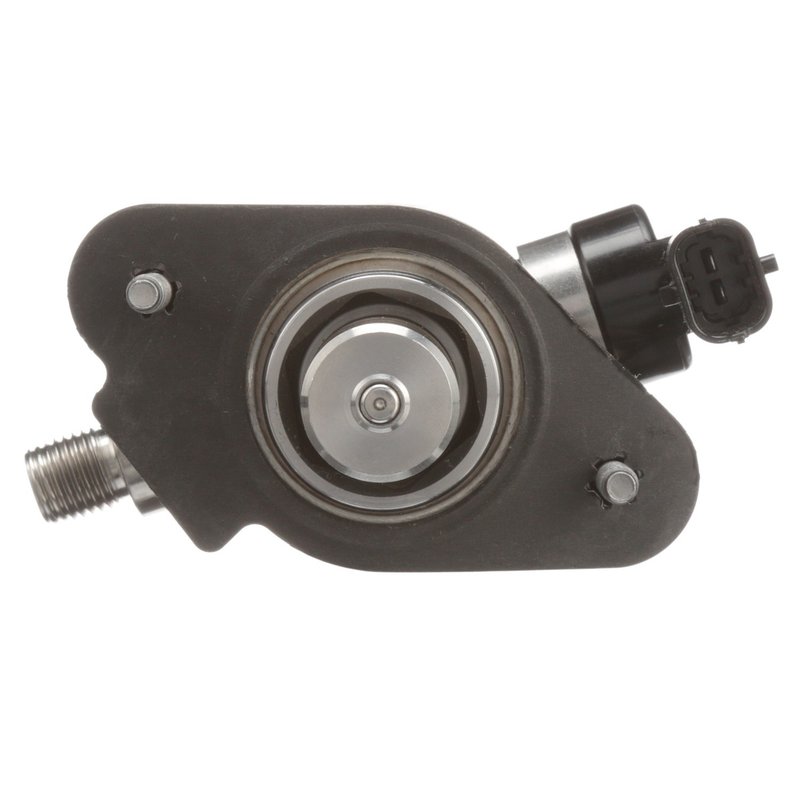

Delphi HM10007 Direct Injection High Pressure Fuel Pump

Overview of Delphi HM10007 Direct Injection High Pressure Fuel Pump

The Delphi HM10007 is a mechanical direct injection high pressure fuel pump designed for gasoline engines. Engineered for external mounting, this fuel pump is compatible with a range of Buick, Cadillac, Chevrolet, and GMC models, providing reliable fuel delivery for vehicles such as the Chevrolet Camaro, Buick LaCrosse, and Cadillac CTS.

• Fuel Type: Gasoline
• Mechanical pump type with metal housing
• External mounting with threaded inlet and outlet (M14-1.5 thread size)
• Includes gasket or seal for installation
• Blade terminal type with 2 male terminals
• Silver-colored metal housing for durability
• Standard replacement grade part
• Compatible with multiple GM models including Buick Allure, Cadillac ATS, Chevrolet Equinox, and GMC Terrain

Detailed Product Description

The Delphi HM10007 direct injection high pressure fuel pump is constructed with a durable metal housing finished in silver, ensuring long-lasting performance under demanding conditions. It features a mechanical pump design suitable for gasoline engines requiring precise fuel delivery at high pressure. The pump is externally mounted and equipped with threaded inlet and outlet fittings sized M14-1.5, allowing secure and leak-free connections. The unit includes a gasket or seal to assist with proper installation and prevent fuel leaks. Electrical connections are made via two male blade terminals, providing straightforward wiring compatibility. This pump is a standard replacement part, designed to meet OEM specifications for a variety of Buick, Cadillac, Chevrolet, and GMC vehicles.

Compatible Vehicles and Applications

This fuel pump is compatible with a broad range of GM vehicles, including but not limited to:

• Buick Allure, LaCrosse
• Cadillac ATS, CTS, SRX, XTS
• Chevrolet Camaro, Colorado, Equinox, Impala, Traverse
• GMC Canyon, Terrain

It is ideal for owners seeking a reliable replacement for the direct injection high pressure fuel pump in these models.

Common Issues Addressed by Delphi HM10007

• Fuel delivery interruptions causing engine hesitation or stalling
• Loss of fuel pressure affecting engine performance
• Fuel pump leaks due to worn seals or gaskets
• Electrical connection failures from damaged terminals
• Mechanical wear leading to reduced fuel pump efficiency

Installation Notes and Tips

• Ensure the vehicle is compatible with the Delphi HM10007 part number before installation
• Use the included gasket or seal to prevent fuel leaks
• Verify that the inlet and outlet fittings are properly threaded and tightened (M14-1.5 thread size)
• Check electrical connections for secure attachment to the two male blade terminals
• Mount the pump externally as specified; mounting hardware is not included

Quality Assurance and Warranty

Delphi manufactures the HM10007 fuel pump to meet standard replacement grade specifications, ensuring reliable operation and durability. The product includes a gasket and instruction sheet to assist with proper installation. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
