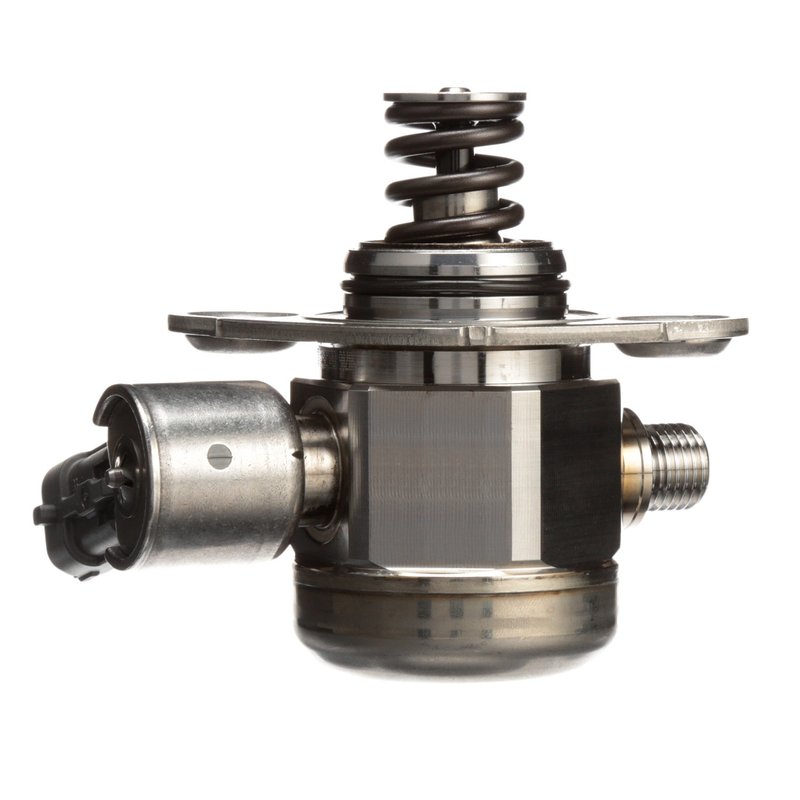

Delphi HM10016 Direct Injection High Pressure Fuel Pump

Overview of Delphi HM10016 Direct Injection High Pressure Fuel Pump

The Delphi HM10016 is a mechanical direct injection high pressure fuel pump designed for select Hyundai and Kia models. Engineered with a durable metal housing and quick connect inlet, this external fuel pump supports efficient fuel delivery for gas engines in vehicles like the Hyundai Sonata and Kia Sorento.

• Compatible with Hyundai Optima, Sonata, Santa Fe Sport, Tucson and Kia Sorento, Sportage
• Mechanical pump type with metal housing in silver finish
• Quick connect inlet (0.313 inch outside diameter) and threaded outlet fittings (M14-1.5)
• Two male blade terminals for electrical connection
• External mounting, no mounting hardware or gasket included
• Standard replacement grade with included instruction sheet

Detailed Product Description

The Delphi HM10016 direct injection high pressure fuel pump is designed to meet the fuel delivery demands of modern gas-powered engines in Hyundai and Kia vehicles. Its mechanical operation ensures consistent fuel pressure for direct injection systems, supporting optimal engine performance. The pump features a robust metal housing finished in silver, providing durability and resistance to wear. The inlet uses a quick connect fitting with a 0.313 inch outside diameter, allowing for secure and efficient fuel line attachment. The outlet includes two threaded fittings sized M14-1.5, facilitating reliable fuel flow connections. Electrical connections are made via two male blade terminals, ensuring compatibility with factory wiring harnesses. This external pump does not include mounting hardware or gaskets, so these components should be sourced separately if needed.

Compatible Vehicles and Applications

• Hyundai Optima (various model years)
• Hyundai Sonata
• Hyundai Santa Fe Sport
• Hyundai Tucson
• Kia Sorento
• Kia Sportage

This pump is intended for use in gas-fueled engines requiring a mechanical direct injection high pressure fuel pump. It is a standard replacement part suitable for restoring proper fuel pressure and flow in the fuel delivery system.

Common Issues Addressed by Delphi HM10016

• Inconsistent or low fuel pressure causing engine performance problems
• Fuel pump failure leading to engine stalling or no-start conditions
• Leaks or damage in the fuel pump housing or fittings
• Electrical connection faults due to worn terminals
• Wear from prolonged use affecting fuel delivery efficiency

Installation Notes and Tips

Installation of the Delphi HM10016 requires removal of the existing external fuel pump and proper connection of the quick connect inlet and threaded outlet fittings. Ensure that the fuel lines are clean and free of debris before installation. Since mounting hardware and gaskets are not included, verify that compatible components are available to secure the pump and maintain a proper seal. Electrical connections should be made to the two male blade terminals, matching the vehicle’s wiring harness. Follow the included instruction sheet carefully to ensure correct installation and avoid damage.

Quality Assurance and Warranty

Delphi manufactures the HM10016 as a standard replacement grade fuel pump, meeting OEM specifications for fit and function. The metal housing and quality components provide reliable operation under normal driving conditions. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Refer to Delphi’s official documentation or your parts provider for exact warranty terms.
