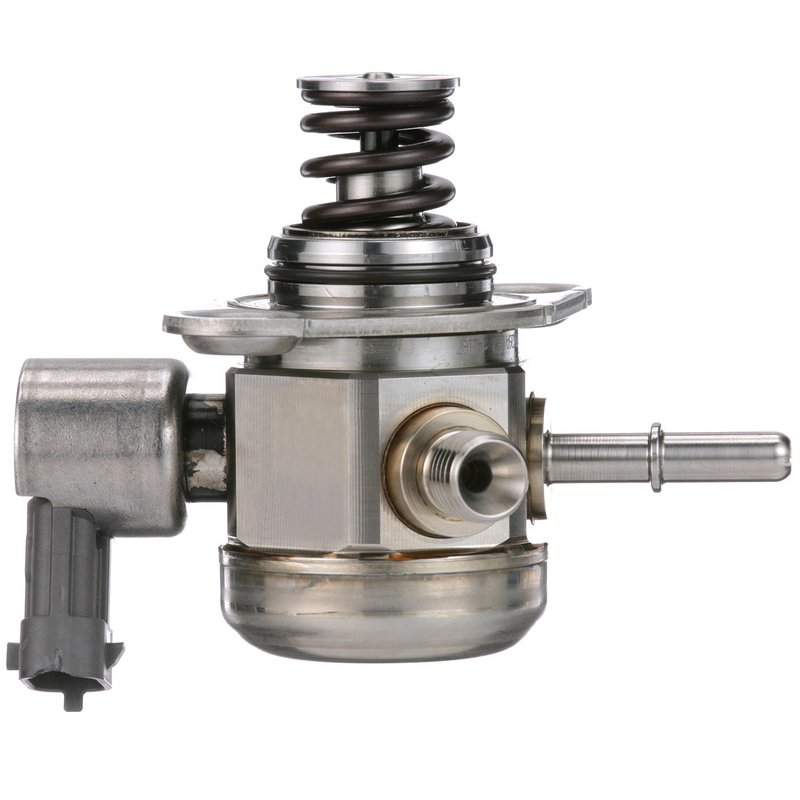

Delphi HM10033 Direct Injection High Pressure Fuel Pump

Overview of Delphi HM10033 Direct Injection High Pressure Fuel Pump

The Delphi HM10033 is a mechanical direct injection high pressure fuel pump designed for select Ford and Lincoln vehicles. Engineered with a durable metal housing and quick connect inlet, this fuel pump supports efficient fuel delivery for models like the Ford Edge, Escape, Explorer, Focus, Fusion, Mustang, and Lincoln MKC and MKZ.

• Compatible with Ford and Lincoln vehicles including Edge, Escape, Explorer, Focus, Fusion, MKC, MKZ, and Mustang
• Mechanical pump type with direct injection high pressure capability
• Metal housing in silver color for durability and corrosion resistance
• Quick connect inlet with 0.313 inch outside diameter
• Threaded outlet fittings (M14-1.5) with two outlets for secure fuel line connection
• Blade terminal type with two male terminals for electrical connection
• External mounting design, no mounting hardware or gasket included
• Standard replacement grade with included instruction sheet for installation guidance

Detailed Product Description

The Delphi HM10033 direct injection high pressure fuel pump is engineered to meet the fuel delivery demands of modern gasoline engines in Ford and Lincoln vehicles. Its mechanical design ensures consistent fuel pressure for direct injection systems, supporting optimal engine performance and efficiency. The pump features a robust metal housing finished in silver, providing strength and resistance to wear. The quick connect inlet with a 0.313 inch outside diameter allows for straightforward fuel line attachment, while the dual threaded outlets (M14-1.5) ensure secure and leak-free connections. Electrical connectivity is facilitated by two male blade terminals, designed for reliable power delivery. This external pump does not include mounting hardware or gaskets, so these components should be sourced separately if needed.

Common Applications and Issues Addressed

• Restores proper fuel pressure in direct injection systems for Ford Edge, Escape, Explorer, Focus, Fusion, Mustang, and Lincoln MKC, MKZ
• Resolves engine performance problems caused by fuel pump failure or pressure loss
• Eliminates rough idling, hesitation, or stalling related to fuel delivery issues
• Addresses fuel leaks or electrical connection faults in the high pressure fuel pump
• Supports maintenance and replacement in vehicles experiencing fuel system wear

Installation Notes and Tips

• Ensure compatibility with your specific Ford or Lincoln model before installation
• Use appropriate mounting hardware and gaskets as these are not included with the pump
• Follow the included instruction sheet carefully for proper electrical and fuel line connections
• Verify that the blade terminals and threaded outlets match your vehicle’s fuel system fittings
• Inspect fuel lines and connectors for wear or damage during installation

Quality Assurance and Warranty

The Delphi HM10033 is a standard replacement grade fuel pump manufactured to meet OEM specifications for fit and function. While mounting hardware and seals are not included, the pump is built with durable materials to provide reliable service. Please consult the product documentation or manufacturer for warranty details applicable to this part.
