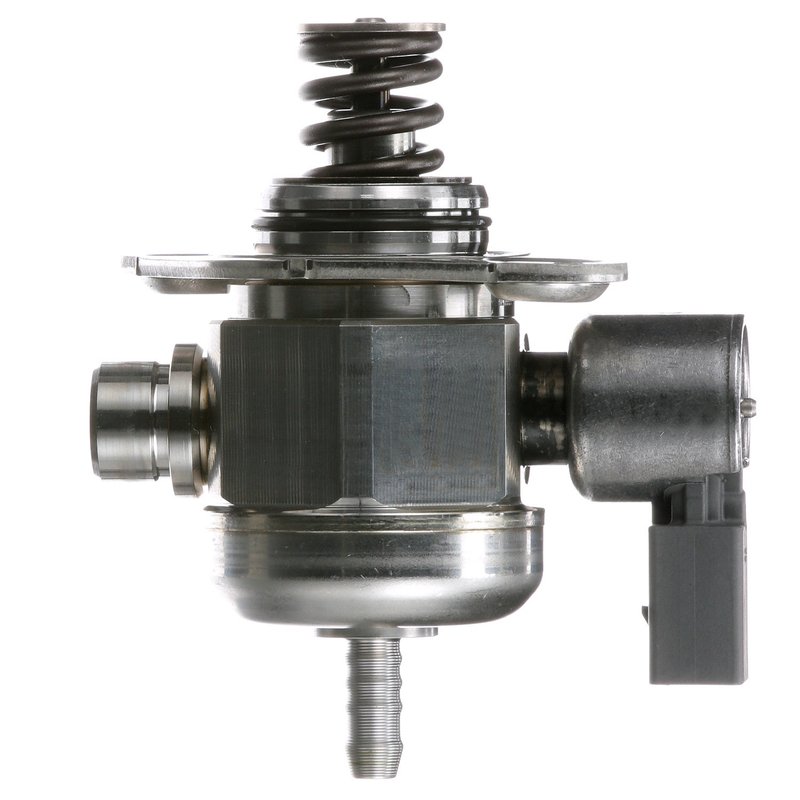

Delphi HM10049 Direct Injection High Pressure Fuel Pump

Overview of Delphi HM10049 Direct Injection High Pressure Fuel Pump

The Delphi HM10049 is a mechanical direct injection high pressure fuel pump designed for select Audi and Volkswagen models. Engineered with a durable metal housing and precise inlet and outlet fittings, this fuel pump supports efficient fuel delivery for gas engines requiring reliable performance.

• Compatible with Audi A4, A4 allroad, A4 Quattro, A5 Quattro, A5 Sportback, A6 Quattro, Q5, Q5 PHEV, Q7 and Volkswagen Beetle, Golf, Golf Alltrack, Golf SportWagen, Jetta, Passat
• Mechanical pump type with external mounting
• Metal housing in silver finish for durability
• Inlet outside diameter of 0.313 inches with hose bead inlet type
• Two female threaded outlets with M14-1.5 thread size
• Blade terminal type with two male terminals
• Standard replacement grade without included mounting hardware or gasket
• Includes instruction sheet for installation guidance

Detailed Product Description

The Delphi HM10049 direct injection high pressure fuel pump is designed to meet the fuel delivery demands of modern gas-powered Audi and Volkswagen vehicles. Its mechanical operation ensures consistent fuel pressure necessary for direct injection systems. The pump features a robust metal housing finished in silver, providing resistance to wear and heat. The inlet connection uses a hose bead type with a 0.313-inch outside diameter, while the outlet side includes two female threaded fittings sized M14-1.5, allowing secure attachment to fuel lines. Electrical connections are made via two male blade terminals, supporting straightforward wiring integration. This external pump does not include mounting hardware or gaskets, so these components should be sourced separately if needed.

Common Applications and Issues Addressed

• Restores proper fuel pressure in direct injection systems for Audi A4 and Volkswagen Golf models
• Resolves fuel delivery interruptions causing engine hesitation or stalling
• Replaces worn or failing mechanical fuel pumps in external mounting configurations
• Addresses fuel leaks or pressure drops due to damaged pump housing or fittings
• Supports performance and reliability in Quattro and PHEV variants requiring precise fuel metering

Installation Notes and Tips

• Verify compatibility with specific Audi or Volkswagen model and engine before installation
• Ensure all fuel lines and electrical connections match the inlet and outlet specifications (hose bead inlet, female threaded outlets M14-1.5)
• Use appropriate mounting hardware and gaskets as these are not included with the pump
• Follow the included instruction sheet carefully to avoid installation errors
• Check for fuel leaks and secure terminal connections after installation

Quality Assurance and Warranty

The Delphi HM10049 is a standard replacement grade fuel pump manufactured to meet OEM specifications for fit and function. Constructed with a metal housing and reliable mechanical components, it is designed for durability and consistent performance. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
