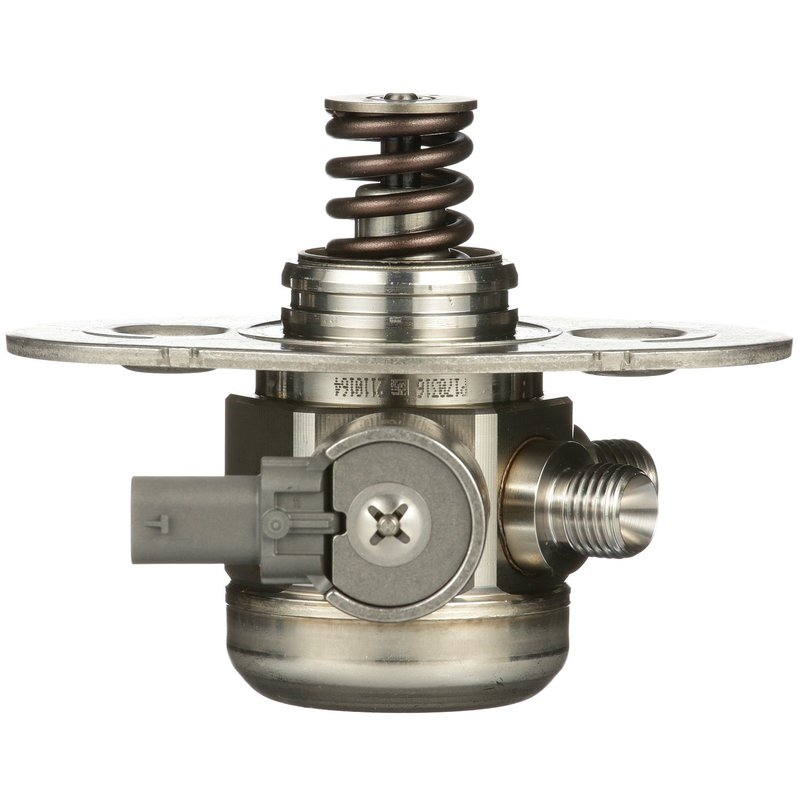

Delphi HM10074 Direct Injection High Pressure Fuel Pump

Overview of Delphi HM10074 Direct Injection High Pressure Fuel Pump

The Delphi HM10074 is a mechanical direct injection high pressure fuel pump designed for select BMW models. Engineered for gasoline engines, this external fuel pump ensures precise fuel delivery to maintain optimal engine performance in vehicles such as the BMW 320i, 328i, and X3.

• Compatible with BMW models including 228i, 320i, 328i, 428i, 528i, X1, X3, X4, X5, and Z4
• Mechanical pump type with direct injection high pressure capability
• Metal housing in silver color for durability and corrosion resistance
• Threaded inlet and outlet fittings (M14-1.5) for secure fuel line connections
• Blade terminal type with two male terminals for electrical connection
• External mounting design, no mounting hardware or gasket included
• Standard replacement grade for reliable performance
• Includes instruction sheet for installation guidance

Detailed Product Description

The Delphi HM10074 direct injection high pressure fuel pump is specifically designed for gasoline-powered BMW vehicles requiring precise fuel delivery under high pressure conditions. Its mechanical operation ensures consistent fuel flow to the engine’s direct injection system, supporting efficient combustion and engine responsiveness. The pump features a robust metal housing finished in silver, providing strength and resistance to wear. Both the inlet and outlet connections use threaded fittings sized M14-1.5, allowing for secure and leak-free fuel line attachment. The pump’s electrical interface includes two male blade terminals, facilitating straightforward wiring integration without the need for an included harness. This external pump is a standard replacement part, suitable for maintaining factory performance levels in BMW models such as the 320i xDrive, 328i GT xDrive, and 428i Gran Coupe.

Common Applications and Problem Resolution

• Restores proper fuel pressure in BMW 228i and 320i models experiencing fuel delivery issues
• Addresses engine hesitation or stalling caused by failing high pressure fuel pumps in BMW X3 and X5
• Replaces worn or damaged pumps in BMW 328i xDrive and 428i xDrive Gran Coupe to improve fuel injection accuracy
• Eliminates fuel leaks due to faulty inlet or outlet fittings in BMW 528i and Z4
• Supports consistent engine performance in BMW X1 and X4 with mechanical pump reliability

Installation Notes and Tips

Installation of the Delphi HM10074 requires removal of the existing external high pressure fuel pump. Since mounting hardware and gaskets are not included, reuse of original components or purchase of compatible parts is necessary. Ensure all fuel lines are properly connected to the threaded M14-1.5 fittings and securely tightened to prevent leaks. Electrical connections should be made to the two male blade terminals, verifying correct polarity and secure attachment. Follow the included instruction sheet carefully and observe all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Delphi manufactures the HM10074 to meet standard replacement grade specifications, ensuring reliable operation and compatibility with specified BMW models. The metal housing and precision mechanical design contribute to durability and consistent fuel delivery. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
