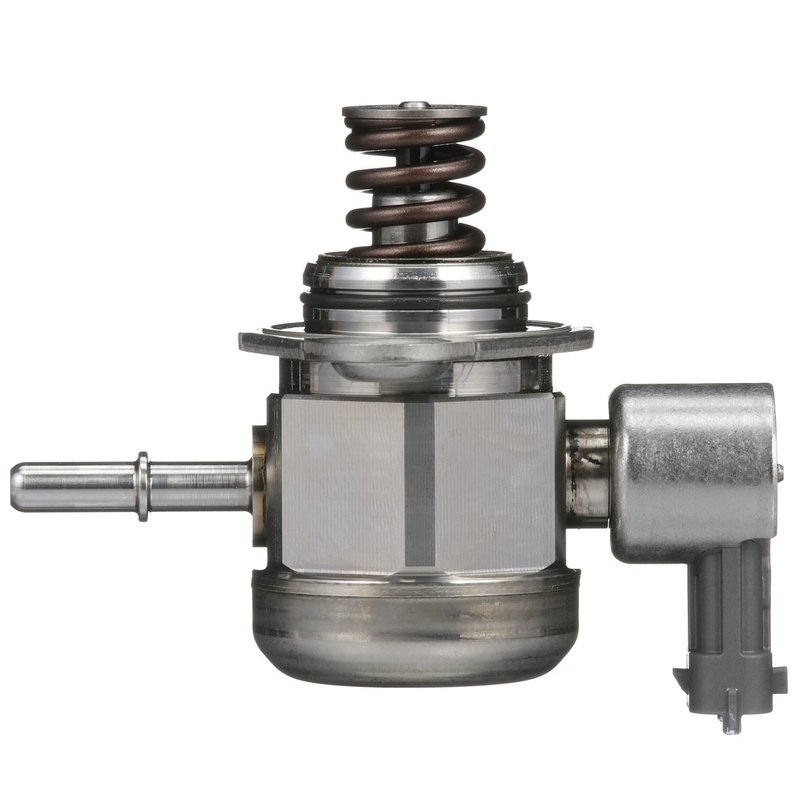

Delphi HM10099 Direct Injection High Pressure Fuel Pump

Overview of Delphi HM10099 Direct Injection High Pressure Fuel Pump

The Delphi HM10099 is a mechanical direct injection high pressure fuel pump designed for select Ford, Land Rover, and Lincoln vehicles. Engineered with a durable metal housing and quick connect inlet, this fuel pump ensures reliable fuel delivery for gas engines in models like the Ford Explorer, Land Rover Discovery Sport, and Lincoln MKC.

• Direct injection high pressure mechanical fuel pump
• Compatible with Ford, Land Rover, and Lincoln gas vehicles
• Inlet outside diameter: 0.313 inches with quick connect type
• Two threaded outlet fittings (M14-1.5 thread size)
• Metal housing in silver color for durability
• Includes gasket or seal for proper installation
• Blade terminal type with two male terminals
• External pump design, no mounting hardware or wiring harness included

Detailed Product Description

The Delphi HM10099 fuel pump is a standard replacement mechanical pump designed to meet the fuel delivery requirements of direct injection gas engines. Its external mounting and metal housing provide robust performance and heat resistance. The pump features a quick connect inlet with a 0.313-inch outside diameter, facilitating straightforward fuel line connections. Two threaded outlet fittings with M14-1.5 thread size ensure secure attachment to the fuel system. The blade-type terminals (two male terminals) allow for reliable electrical connections. This pump is compatible with a range of vehicles including the Ford Edge, Escape, Fusion, Taurus, Land Rover LR2, Range Rover Evoque, and Lincoln MKZ and MKT models.

Common Applications and Issues Addressed

• Restores proper fuel pressure in direct injection systems
• Resolves engine hesitation or stalling caused by fuel delivery problems
• Eliminates fuel pump noise or irregular operation
• Prevents poor engine performance due to low fuel pressure
• Replaces worn or damaged mechanical fuel pumps in compatible vehicles

Installation Notes and Tips

Installation of the Delphi HM10099 requires basic mechanical skills and appropriate tools. Note that mounting hardware and wiring harness are not included, so reuse existing components or source separately. The included gasket or seal must be installed to prevent fuel leaks. Ensure the fuel system is depressurized before removal and installation. Verify correct terminal connections using the blade-type male terminals. This pump is designed for external mounting; confirm compatibility with your vehicle’s fuel system layout before installation.

Quality Assurance and Warranty

Delphi manufactures the HM10099 fuel pump to meet standard replacement quality grades, ensuring reliable operation and durability. The metal housing and precision fittings contribute to long service life. This product includes an instruction sheet to assist with installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
