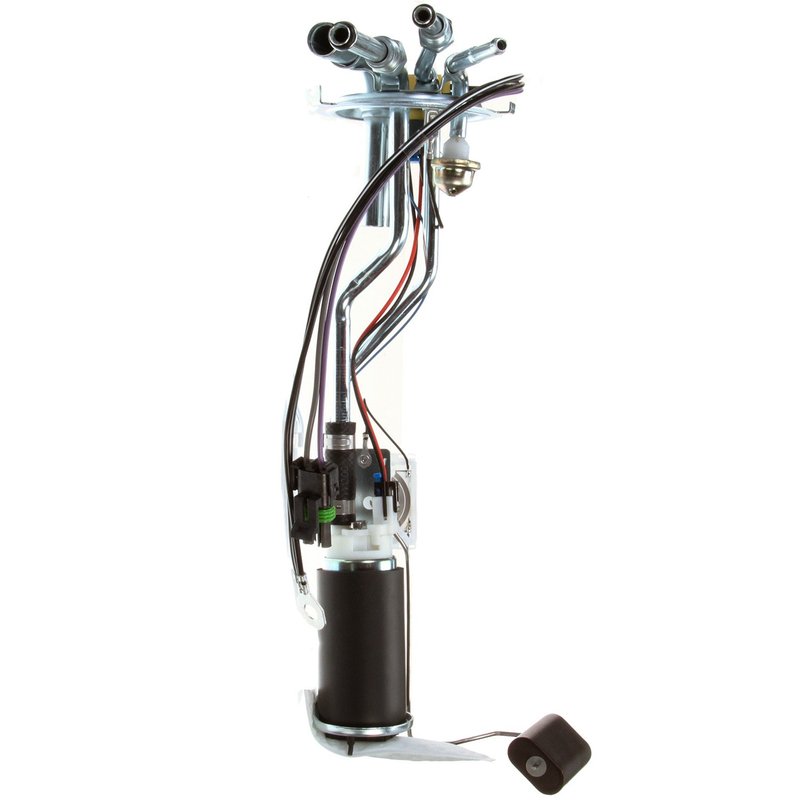

Delphi HP10007 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10007 Fuel Pump Hanger Assembly is designed for reliable fuel delivery in Chevrolet S10 and GMC Sonoma trucks. This in-tank electric fuel pump assembly ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Electric fuel pump with 13.5 voltage operation
• Maximum pressure rating of 29 psi and system pressure of 12 psi
• Includes fuel level sender assembly with float arm
• External strainer inlet type with quick connect outlet
• Comes with gasket, seal, lock ring, and two O-rings for secure installation
• Compatible with gas fuel type and designed for in-tank installation
• Two female pin terminals with 0.375 inch outlet outside diameter
• Average flow rating of 26 and average current draw of 4 amps

Technical Details and Features

The HP10007 fuel pump hanger assembly operates at 13.5 volts and is engineered to maintain a maximum pressure of 29 psi, with a system pressure of 12 psi to meet the fuel demands of Chevrolet S10 and GMC Sonoma models. The assembly includes an external strainer inlet and a quick connect outlet with four outlet ports, ensuring efficient fuel flow and filtration. The unit features two female pin terminals for electrical connections, with resistance values ranging from 1.0 ohms when empty to 90.0 ohms when full, providing accurate fuel level readings through the included sender assembly.

Compatible Vehicles and Applications

This fuel pump hanger assembly is specifically compatible with Chevrolet S10 and GMC Sonoma trucks, making it a suitable replacement for original equipment in these models. It is designed for use with gasoline fuel systems and fits in-tank installations, ensuring proper integration with the vehicle's fuel delivery system.

• Resolves fuel delivery interruptions and inconsistent fuel pressure
• Addresses fuel level sender malfunctions and inaccurate gauge readings
• Replaces worn or damaged fuel pump hangers to prevent leaks
• Improves fuel filtration with included external strainer
• Eliminates electrical connection issues with secure pin terminals

Installation Notes and Tips

Installation of the Delphi HP10007 requires removal of the fuel tank to access the in-tank assembly. Ensure all seals, including the included gasket and O-rings, are properly seated to prevent leaks. The quick connect outlet simplifies fuel line attachment, while the two female pin terminals require correct polarity during electrical connection. It is recommended to verify fuel pressure and electrical resistance after installation to confirm proper operation.

Quality Assurance and Warranty

Delphi manufactures the HP10007 fuel pump hanger assembly to meet standard replacement grade specifications, ensuring dependable performance in Chevrolet S10 and GMC Sonoma vehicles. The assembly includes all necessary components for installation and is backed by Delphi's quality standards. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
