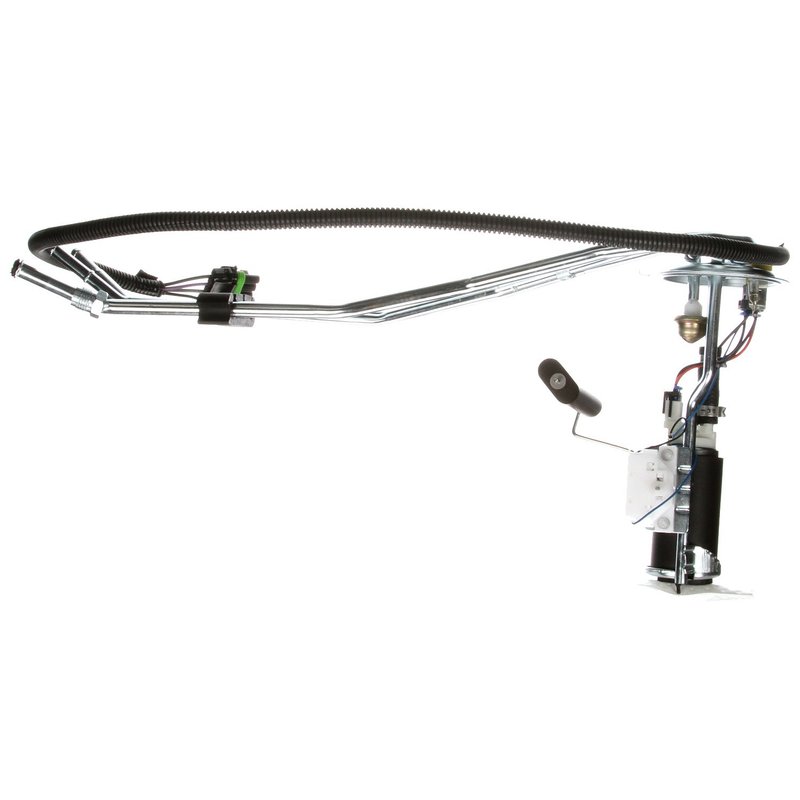

Delphi HP10008 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Select GM Vehicles

The Delphi HP10008 fuel pump hanger assembly is designed to provide consistent fuel delivery for your Buick, Chevrolet, Oldsmobile, or Pontiac vehicle. Engineered for in-tank installation, this electric fuel pump hanger assembly ensures proper fuel flow and pressure for models like the Cavalier, Cutlass Calais, Grand Am, Skyhawk, Skylark, and Sunbird.

• Electric fuel pump with 13.5 volts operating voltage
• Maximum pressure rating of 29 psi and system pressure of 12 psi
• Includes fuel level sender assembly with float arm
• Four female pin terminals for secure electrical connections
• External strainer inlet type with included strainer for fuel filtration
• Quick connect outlet with 0.375 inch outside diameter and three outlet ports
• Comes with gasket, seal, lock ring, and O-ring for proper sealing
• Average flow rating of 26 gallons per hour and average current draw of 4 amps

Detailed Product Description

The Delphi HP10008 fuel pump hanger assembly is a standard replacement part designed for in-tank installation in various GM vehicles. It features an electric pump type optimized for gasoline fuel systems, delivering a consistent flow rate of 26 gallons per hour. The assembly includes a fuel level sender with a float arm, allowing accurate fuel level readings. The external strainer inlet helps prevent debris from entering the fuel system, enhancing longevity and performance. The four female pin terminals ensure reliable electrical connections, while the quick connect outlet with a 0.375-inch outside diameter supports efficient fuel delivery. This assembly is compatible with Buick Cavalier, Chevrolet Cavalier, Oldsmobile Cutlass Calais, Pontiac Grand Am, Skyhawk, Skylark, and Sunbird models.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Buick, Chevrolet, Oldsmobile, and Pontiac vehicles
• Resolves inconsistent fuel pressure or flow problems
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel contamination issues with included external strainer
• Eliminates electrical connection failures with secure four-pin female terminals

Installation Notes and Tips

• Ensure the vehicle is depressurized and battery disconnected before installation
• Verify compatibility with your specific make and model before proceeding
• Use the included gasket, seal, lock ring, and O-ring to prevent leaks
• Handle the float arm carefully to avoid damage during installation
• Check all electrical connections for proper fit and secure attachment

Quality Assurance and Warranty

Delphi manufactures the HP10008 fuel pump hanger assembly to meet or exceed OEM specifications for reliable performance. This standard replacement part undergoes rigorous testing to ensure durability and consistent operation under normal driving conditions. The product includes a gasket and seal to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
