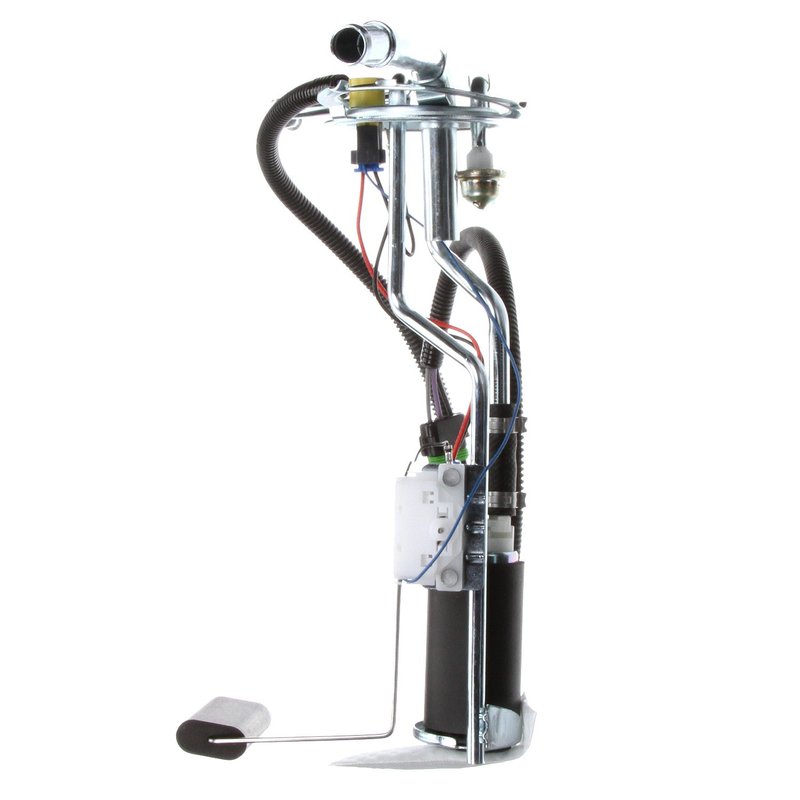

Delphi HP10011 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Chevrolet G10, G20, G30

The Delphi HP10011 fuel pump hanger assembly is designed for reliable fuel delivery in Chevrolet G10, G20, and G30 models. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to meet standard replacement specifications.

• Electric fuel pump with 13.5 voltage rating
• Compatible with gasoline fuel systems
• Maximum pressure rating of 29 psi and system pressure of 12 psi
• Includes fuel level sender assembly with float arm
• External strainer inlet type with included strainer
• Quick connect outlet with 0.375 inch outside diameter
• Three female pin terminals for secure electrical connection
• Package includes fuel pump hanger assembly, seal, two O-rings, and installation instructions

Technical Details and Specifications

The Delphi HP10011 fuel pump hanger assembly operates at 13.5 volts and is designed specifically for gasoline fuel systems in Chevrolet G10, G20, and G30 vans. It features an electric pump type with an average flow rating of 26 gallons per hour and an average current draw of 4 amps. The assembly includes an external strainer inlet and a quick connect outlet with an outside diameter of 0.375 inches, ensuring efficient fuel flow and easy installation. The unit maintains a maximum pressure of 29 psi and a system pressure of 12 psi, suitable for standard fuel delivery requirements.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with Chevrolet G10, G20, and G30 models, providing a direct replacement for the original equipment. It is designed for in-tank installation and includes a fuel level sender assembly, which helps maintain accurate fuel gauge readings.

• Resolves fuel delivery issues such as low fuel pressure or inconsistent flow
• Replaces faulty or worn fuel pump hangers in Chevrolet G10, G20, and G30
• Addresses fuel gauge inaccuracies with included fuel level sender
• Eliminates fuel leaks with included gasket and O-rings
• Improves engine performance by ensuring steady fuel supply

Installation Notes and Tips

Installation of the Delphi HP10011 fuel pump hanger assembly requires removal of the fuel tank for in-tank access. Ensure all electrical connections use the three female pin terminals provided. The quick connect outlet simplifies fuel line attachment. Replace the included gasket and O-rings to prevent leaks. Follow the included instructions carefully to maintain proper sealing and electrical connections.

Quality Assurance and Warranty

Delphi manufactures this fuel pump hanger assembly to meet standard replacement quality standards. The product includes a gasket or seal and strainer to ensure reliable operation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
