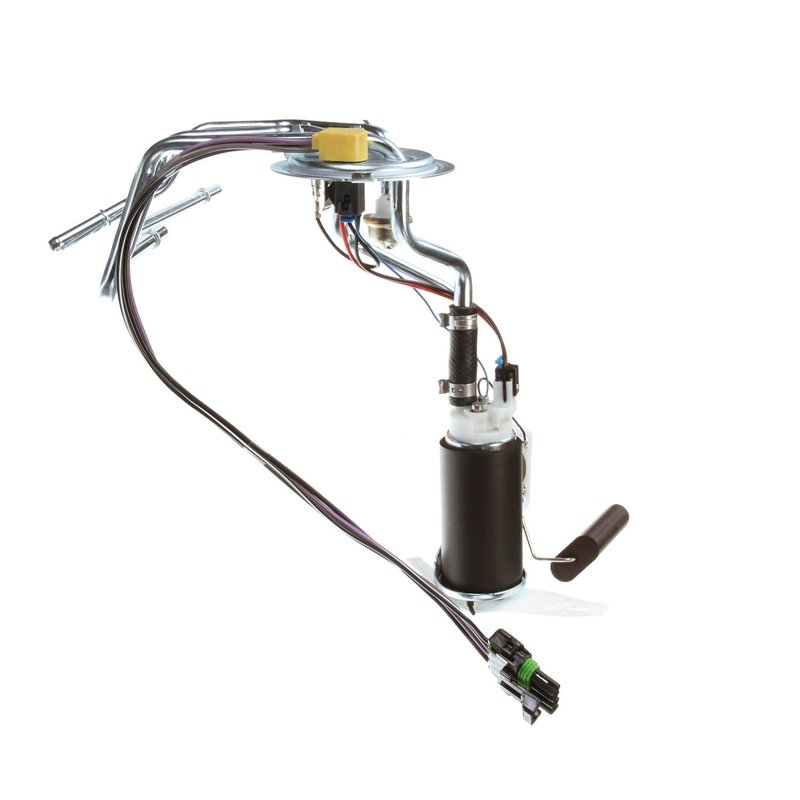

Delphi HP10015 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Buick, Chevrolet, Oldsmobile, Pontiac

The Delphi HP10015 fuel pump hanger assembly is designed for in-tank installation, providing consistent fuel delivery for select Buick, Chevrolet, Oldsmobile, and Pontiac models. Engineered to meet standard replacement specifications, this assembly ensures proper fuel system operation and accurate fuel level readings.

• Electric fuel pump with 13.5 voltage rating
• Maximum pressure of 29.0 psi and system pressure of 12 psi
• Includes fuel level sender assembly with float arm
• Four female pin terminals for secure electrical connections
• External strainer inlet type with included strainer
• Quick connect outlet with 0.375 inch outside diameter
• Compatible with Buick, Chevrolet, Oldsmobile, and Pontiac models including Century, Celebrity, Cutlass Ciera, and Cutlass Cruiser
• Standard replacement grade with gasket and seal included

Technical Details and Specifications

The Delphi HP10015 fuel pump hanger assembly operates at an average current draw of 4 amps and delivers an average flow rating of 26 gallons per hour. It features three quick connect outlets with a 0.375 inch outside diameter, facilitating efficient fuel flow. The assembly includes an external strainer to protect the pump from debris and ensure longevity. Electrical connections are made via four female pin terminals, designed for reliable and secure attachment. The fuel level sender assembly is integrated, providing accurate fuel level readings to the vehicle’s gauge. This assembly is intended for use with gasoline fuel types and is designed for in-tank installation, compatible with specific GM models from Buick, Chevrolet, Oldsmobile, and Pontiac.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with the following makes and models:

• Buick Century
• Chevrolet Celebrity
• Oldsmobile Cutlass Ciera
• Pontiac Cutlass Cruiser
• Other related GM models requiring a standard replacement fuel pump hanger assembly

Common Issues Addressed by This Fuel Pump Assembly

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or failure from clogged or damaged strainers
• Electrical connection problems resulting in pump malfunction
• Leaks or pressure loss from worn seals or gaskets

Installation Notes and Tips

Installation of the Delphi HP10015 requires removal of the fuel tank for in-tank access. Ensure all electrical connections use the four female pin terminals provided for proper fit. Replace the included gasket and seal to prevent leaks. Verify the external strainer is properly seated to avoid debris entering the pump. Follow vehicle-specific service manuals for torque specifications and safety precautions when handling fuel system components.

Quality Assurance and Warranty

Delphi manufactures this fuel pump hanger assembly to meet standard replacement quality standards. The product includes a gasket and seal to ensure proper installation and leak prevention. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
