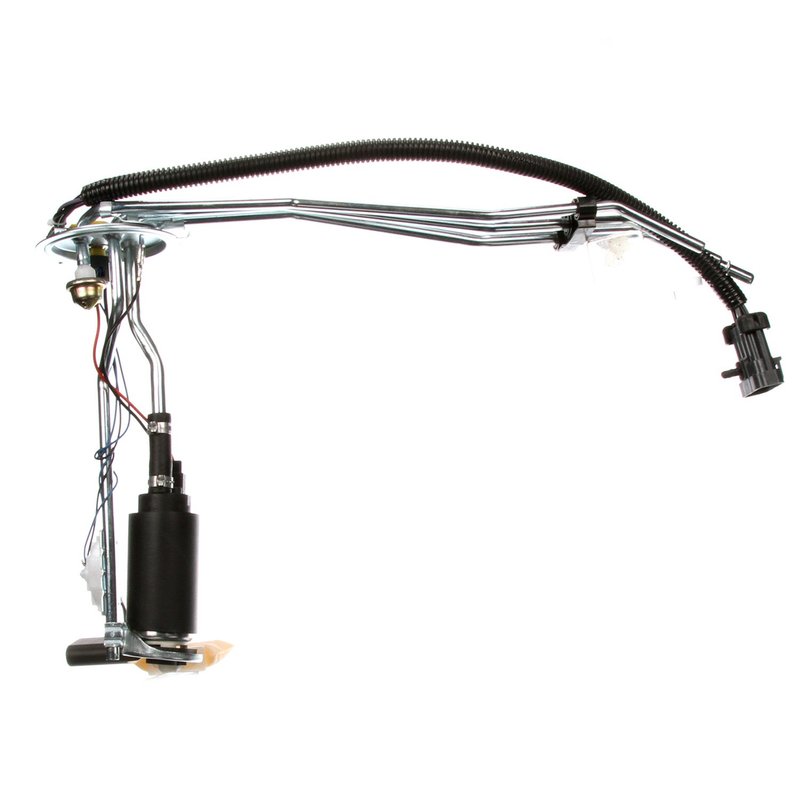

Delphi HP10016 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10016 fuel pump hanger assembly is designed for reliable fuel delivery in select Cadillac models. Engineered for in-tank installation, this electric fuel pump hanger assembly ensures consistent fuel flow and accurate fuel level readings for Cadillac DeVille and Fleetwood vehicles.

• Compatible with 12V gas fuel systems in Cadillac DeVille and Fleetwood
• Includes fuel pump hanger assembly with float arm, seal, and lock ring
• Features a 0.375 inch outlet outside diameter with quick connect outlet type
• Equipped with an external strainer inlet and strainer included for fuel filtration
• Supports system pressure of 44 psi and maximum pressure of 80 psi
• Five male pin terminals for secure electrical connections
• Fuel level sender assembly included for accurate fuel gauge readings
• Average flow rating of 37 and average current draw of 5 amps

Technical Details and Specifications

The Delphi HP10016 fuel pump hanger assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an electric pump type with an external strainer inlet to help prevent debris from entering the fuel system. The assembly includes five male pin terminals, ensuring a secure and reliable electrical connection. The outlet is designed with a quick connect type and three outlets, facilitating efficient fuel delivery. The unit supports a system pressure of 44 psi and can handle a maximum pressure of 80 psi, suitable for maintaining optimal fuel flow in Cadillac DeVille and Fleetwood models. Additionally, the included fuel level sender assembly provides accurate fuel level monitoring, with resistance values ranging from 1.0 ohm (empty) to 90.0 ohms (full).

Applications and Problem Resolution

• Replacement for faulty or worn fuel pump hanger assemblies in Cadillac DeVille and Fleetwood
• Resolves inconsistent fuel pressure or fuel delivery issues
• Addresses inaccurate fuel gauge readings due to faulty sender units
• Prevents fuel contamination with included external strainer
• Eliminates electrical connection problems with secure pin terminals

Installation Notes and Tips

Installation of the Delphi HP10016 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank pump. Ensure the fuel system is depressurized before beginning work. The included gasket or seal should be replaced to prevent leaks. Verify all electrical connections are secure using the five male pin terminals. The quick connect outlet facilitates easier hose attachment. Follow vehicle-specific service manual instructions for proper torque specifications and safety precautions.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Cadillac DeVille and Fleetwood models. It includes a fuel level sender assembly and strainer to maintain system integrity. Delphi parts are known for consistent quality and durability. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
