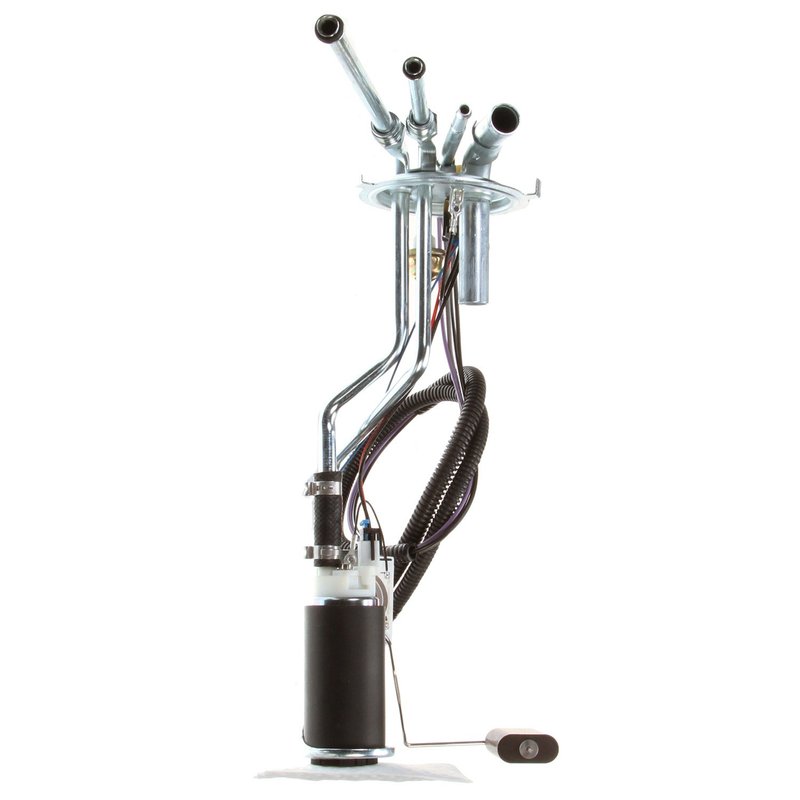

Delphi HP10022 Fuel Pump Hanger Assembly - Rear

Reliable Fuel Pump Hanger Assembly for Chevrolet and GMC Trucks

The Delphi HP10022 fuel pump hanger assembly is designed specifically for in-tank installation on Chevrolet C3500 and GMC K3500 models. Engineered to deliver consistent fuel flow and pressure, this electric fuel pump hanger assembly ensures optimal performance for your gas-powered truck.

• Compatible with Chevrolet C3500 and GMC K3500 rear fuel systems
• Electric pump type with 13.5 voltage operation
• Maximum pressure rating of 29 psi and system pressure of 12 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Features a 0.375 inch outlet outside diameter with quick connect outlet type
• Equipped with an external strainer inlet and included strainer for fuel filtration
• Three female pin terminals with 1.0 ohm resistance empty and 90.0 ohm resistance full
• Average current draw of 4 amps and flow rating of 26 gallons per hour
• Comes with gasket, seal, and lock ring for secure installation

Detailed Product Description

The Delphi HP10022 fuel pump hanger assembly is a standard replacement part designed for in-tank mounting on Chevrolet C3500 and GMC K3500 trucks. This assembly integrates an electric fuel pump capable of maintaining a maximum pressure of 29 psi, supporting a system pressure of 12 psi to ensure steady fuel delivery. The unit operates at 13.5 volts and draws an average current of 4 amps, providing a flow rating of 26 gallons per hour to meet the demands of gas-fueled engines.

Its design includes a 0.375 inch outlet outside diameter with a quick connect outlet type, facilitating straightforward fuel line connections. The assembly features an external strainer inlet type with an included strainer to protect the fuel system from contaminants. The three female pin terminals provide reliable electrical connections, with resistance values calibrated for accurate fuel level sensing. Additionally, the fuel level sender assembly with float arm is included, allowing precise fuel measurement and monitoring.

Common Applications and Issues Addressed

• Replacement for faulty or worn fuel pump hanger assemblies in Chevrolet C3500 and GMC K3500 trucks
• Resolves inconsistent fuel pressure or flow problems affecting engine performance
• Addresses fuel level sender failures causing inaccurate fuel gauge readings
• Eliminates fuel contamination issues through integrated external strainer
• Fixes electrical connection problems with secure three-pin female terminals

Installation Notes and Tips

• Ensure compatibility with Chevrolet C3500 or GMC K3500 rear in-tank fuel systems before installation
• Use included gasket, seal, and lock ring to prevent fuel leaks and secure assembly
• Handle electrical terminals carefully to maintain proper connection and avoid damage
• Verify fuel line quick connect fittings are properly seated for leak-free operation
• Follow vehicle manufacturer guidelines for fuel system servicing and safety precautions

Quality Assurance and Warranty

The Delphi HP10022 fuel pump hanger assembly is manufactured to meet standard replacement specifications for Chevrolet and GMC trucks. It includes all necessary components such as the fuel pump, fuel level sender assembly, gasket, seal, and lock ring to ensure a complete and reliable installation. Delphi products undergo rigorous quality control to maintain consistent performance and durability. Warranty coverage details should be confirmed with the product documentation or supplier.
