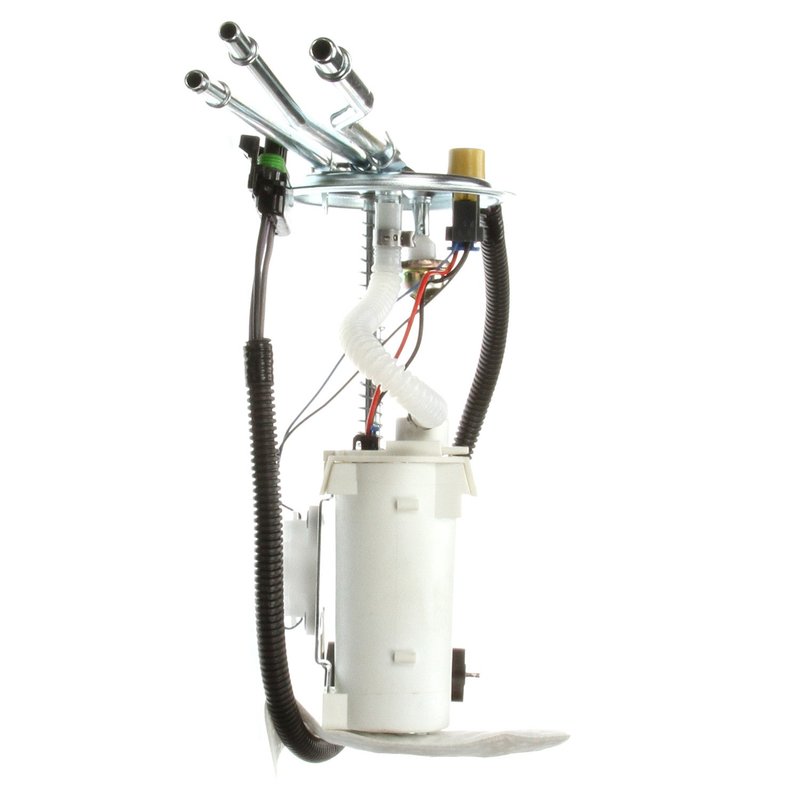

Delphi HP10024 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Cadillac Fleetwood

The Delphi HP10024 fuel pump hanger assembly is designed specifically for Cadillac Fleetwood models, providing reliable in-tank fuel delivery. This electric fuel pump assembly ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Outlet outside diameter: 0.375 inches for precise fuel line connection
• Operates at 13.5 volts with a maximum pressure of 80 psi
• Includes a fuel level sender assembly with float arm for accurate fuel gauge readings
• Equipped with an external strainer and quick connect outlet type for efficient fuel filtration and easy installation
• Four female pin terminals for secure electrical connections
• Designed for gasoline fuel systems with an average flow rating of 26 gallons per hour
• Comes with gasket, seal, and lock ring to ensure a proper tank seal
• Standard replacement grade for dependable performance

Technical Details and Features

The Delphi HP10024 fuel pump hanger assembly is an electric pump designed for in-tank installation in Cadillac Fleetwood vehicles. It features a 0.375-inch outlet outside diameter and supports a system pressure of 44 psi, with a maximum pressure rating of 80 psi. The assembly includes an external strainer inlet type and a quick connect outlet type with three outlets, facilitating efficient fuel flow and filtration. The four female pin terminals provide reliable electrical connectivity, operating at 13.5 volts with an average current draw of 4 amps. Resistance values range from 1.0 ohm when empty to 90.0 ohms when full, ensuring accurate fuel level measurement through the included fuel level sender assembly.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hangers in Cadillac Fleetwood models
• Resolves inconsistent fuel pressure or flow issues affecting engine performance
• Fixes inaccurate fuel gauge readings with the integrated fuel level sender assembly
• Addresses fuel contamination problems with the external strainer included
• Eliminates electrical connection failures with secure four-pin female terminals

Installation Notes and Tips

Installation of the Delphi HP10024 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket and seal included are properly seated to prevent fuel leaks. The quick connect outlet type simplifies fuel line attachment, but verify all connections are secure before reassembling. Handle the float arm carefully to avoid damage to the fuel level sender assembly. It is recommended to follow vehicle-specific service manuals for torque specifications and safety precautions during installation.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Cadillac Fleetwood vehicles. It includes all necessary components such as the float arm, seal, and lock ring to ensure proper fit and function. Delphi products undergo rigorous testing to maintain consistent quality and reliability. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
