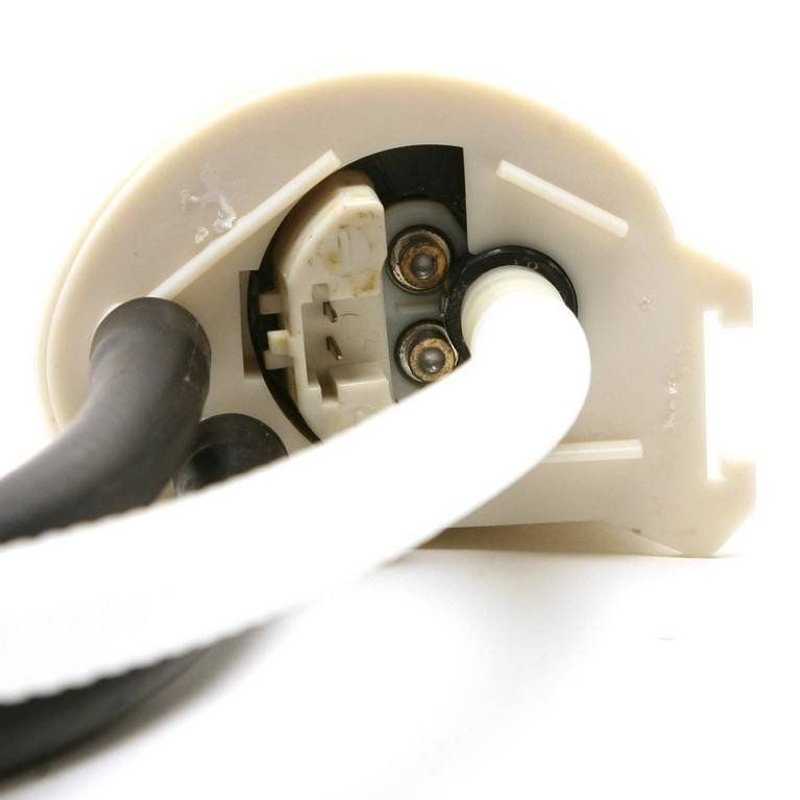

Delphi HP10034 Fuel Pump and Strainer Set

Reliable Fuel Pump and Strainer Set for Chevrolet Camaro and Pontiac Firebird

The Delphi HP10034 fuel pump and strainer set is designed for in-tank installation, providing consistent fuel delivery for Chevrolet Camaro and Pontiac Firebird models. This electric fuel pump operates at 12 volts and is engineered to meet the specific fuel system requirements of these vehicles.

• Electric in-tank fuel pump with external strainer
• Compatible with gasoline fuel systems
• Maximum pressure rating of 73 psi and system pressure of 44 psi
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Includes gasket, seal, rubber fitting, and instruction sheet
• Two male pin terminals for electrical connection
• Average current draw of 7 amps and flow rating of 21 gallons per hour

Product Details and Specifications

The Delphi HP10034 fuel pump and strainer set is a standard replacement part designed for Chevrolet Camaro and Pontiac Firebird vehicles. It features a 12.0-volt electric pump with a maximum pressure of 73 psi, ensuring adequate fuel delivery under various driving conditions. The pump includes an external strainer to protect the fuel system from contaminants and has a quick connect outlet with a 0.375-inch outside diameter for easy installation. The unit is equipped with two male pin terminals for secure electrical connections and comes with a gasket and seal to maintain system integrity. This in-tank pump is engineered to maintain a system pressure of 44 psi and an average flow rating of 21 gallons per hour, supporting optimal engine performance.

Applications and Common Issues Addressed

• Restores proper fuel pressure in Chevrolet Camaro and Pontiac Firebird fuel systems
• Replaces failing or noisy fuel pumps causing engine hesitation or stalling
• Prevents fuel delivery interruptions due to clogged or damaged strainers
• Addresses fuel pump electrical connection issues with included terminals and seals
• Improves fuel system reliability in vehicles experiencing inconsistent fuel flow

Installation Notes and Tips

Installation of the Delphi HP10034 fuel pump and strainer set requires removal of the fuel tank for in-tank access. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket and seal to prevent leaks and verify that the quick connect outlet is securely attached to the fuel line. Check the two male pin terminals for proper connection and avoid using wiring harnesses as they are not included. Follow the instruction sheet carefully to maintain system pressure and flow specifications.

Quality Assurance and Warranty Information

Delphi manufactures the HP10034 fuel pump and strainer set to meet OEM standards for durability and performance. This standard replacement part undergoes rigorous testing to ensure consistent fuel delivery and pressure regulation. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation or contact the distributor for exact warranty terms.
