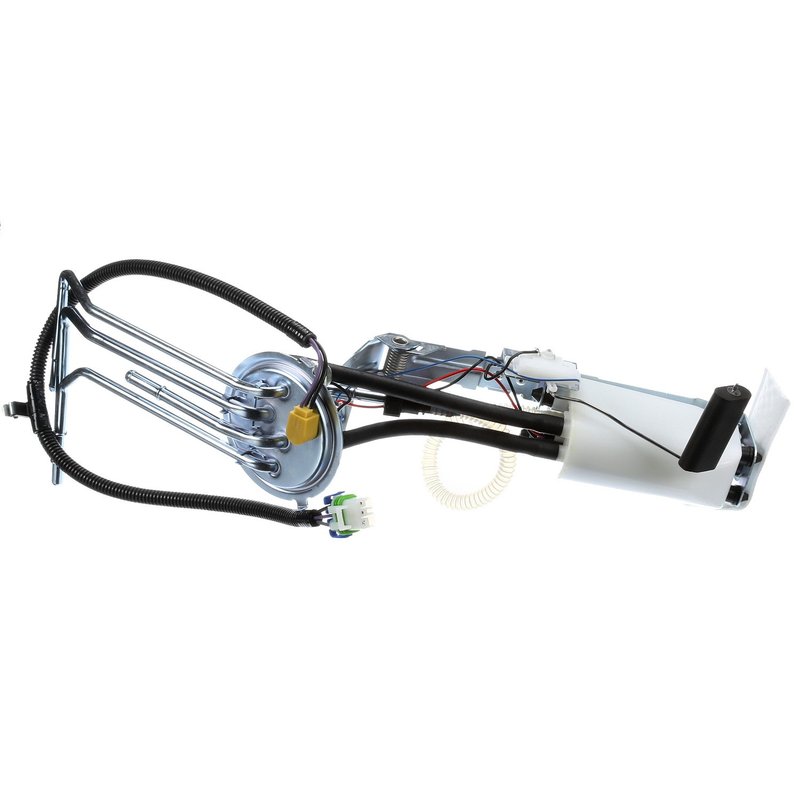

Delphi HP10036 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Chevrolet Camaro and Pontiac Firebird

The Delphi HP10036 fuel pump hanger assembly is designed specifically for in-tank installation in Chevrolet Camaro and Pontiac Firebird models. This electric fuel pump assembly ensures reliable fuel delivery with integrated components for efficient operation.

• Outlet outside diameter: 0.375 inches
• Voltage: 13.5 volts
• Maximum pressure: 87 psi
• System pressure: 51 psi
• Fuel type: Gasoline compatible
• Terminal type: Female pin with 3 terminals
• Includes gasket, seal, and external strainer
• Quick connect outlet with 4 outlets
• Fuel level sender assembly with float arm included
• Average current draw: 7 amps
• Average flow rating: 26 gallons per hour

Technical Details and Features

The Delphi HP10036 is an electric fuel pump hanger assembly engineered for standard replacement applications in Chevrolet Camaro and Pontiac Firebird vehicles. It features a 0.375-inch outlet diameter and operates at 13.5 volts, delivering a maximum pressure of 87 psi and maintaining a system pressure of 51 psi. The assembly includes a female pin terminal with three connections, ensuring secure electrical interfacing. An external strainer and quick connect outlet with four outlets provide efficient fuel filtration and connection. The included fuel level sender assembly with float arm allows accurate fuel level monitoring. This assembly is designed for gasoline fuel systems and offers an average flow rating of 26 gallons per hour with a current draw of 7 amps.

Applications and Problem Resolution

• Replaces faulty or worn fuel pump hangers in Chevrolet Camaro and Pontiac Firebird
• Resolves fuel delivery issues such as low pressure or inconsistent flow
• Addresses fuel level sender failures for accurate fuel gauge readings
• Eliminates leaks with included gasket and seal components
• Improves fuel system reliability with integrated external strainer

Installation Notes and Tips

Installation of the Delphi HP10036 fuel pump hanger assembly requires removal of the fuel tank for in-tank access. Ensure all electrical connections use the female pin terminals provided and verify secure quick connect fittings on the outlet side. Replace the gasket and seal included in the package to prevent leaks. Confirm compatibility with your specific Chevrolet Camaro or Pontiac Firebird model year before installation. Proper handling of the float arm and fuel level sender assembly is essential for accurate fuel gauge operation.

Quality Assurance and Warranty

Delphi manufactures the HP10036 fuel pump hanger assembly to meet standard replacement grade specifications. The assembly includes all necessary components for a complete installation, including the fuel pump hanger, float arm, seal, and lock ring. While specific warranty details vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for exact warranty terms.
