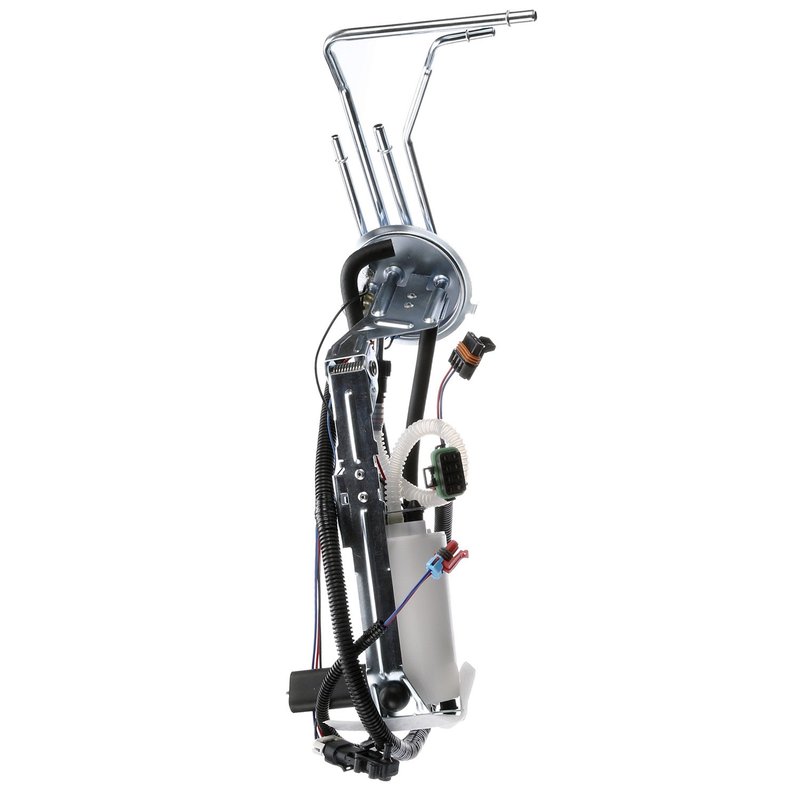

Delphi HP10037 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10037 fuel pump hanger assembly is designed for reliable fuel delivery in Chevrolet Camaro and Pontiac Firebird models. This in-tank electric fuel pump assembly ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Voltage: 13.5V for stable electrical operation
• Maximum pressure rating of 65 psi with a system pressure of 51 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• External strainer inlet type with quick connect outlet for efficient fuel filtration and connection
• Seven female pin terminals for secure electrical connections
• Comes with gasket, seal, and lock ring for proper installation and leak prevention
• Average flow rating of 21 gallons per hour and average current draw of 8 amps

Technical Details and Specifications

The Delphi HP10037 fuel pump hanger assembly is engineered as a standard replacement part for gas-fueled Chevrolet Camaro and Pontiac Firebird vehicles. It features a 0.375-inch outlet outside diameter and four quick connect outlets to facilitate fuel delivery. The electric pump operates at 13.5 volts and maintains a maximum pressure of 65 psi, with a system pressure of 51 psi to meet the demands of high-performance engines. The assembly includes an external strainer inlet to protect the pump from debris, and the fuel level sender assembly provides accurate fuel tank readings. The seven female pin terminals ensure reliable electrical connectivity, while the included gasket and seal help maintain a secure, leak-free installation.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with the following vehicles:

• Chevrolet Camaro (various model years)
• Pontiac Firebird (various model years)

It is designed specifically for in-tank installation and supports gas fuel types, making it suitable for fuel system repairs or upgrades in these muscle cars.

Common Issues Addressed by This Fuel Pump Assembly

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or electrical connection problems
• Fuel leaks caused by worn seals or gaskets
• Reduced engine performance from insufficient fuel pressure

Installation Notes and Tips

When installing the Delphi HP10037 fuel pump hanger assembly, ensure the following:

• Disconnect the vehicle battery before beginning installation to prevent electrical hazards
• Verify compatibility with your specific Chevrolet Camaro or Pontiac Firebird model year
• Inspect and replace the gasket and seal included in the package to prevent leaks
• Handle the float arm carefully to avoid damage to the fuel level sender assembly
• Use proper tools to secure the lock ring and ensure a tight fit within the fuel tank

Quality Assurance and Warranty

Delphi manufactures the HP10037 as a standard replacement fuel pump hanger assembly, meeting OEM specifications for fit and function. The product includes a fuel level sender assembly and strainer to maintain fuel system integrity. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
