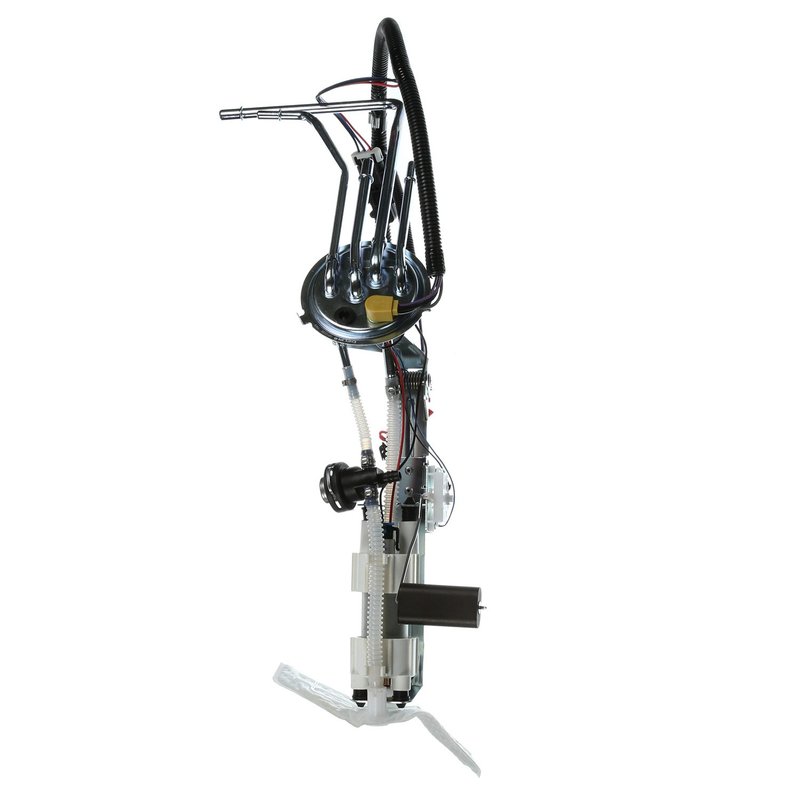

Delphi HP10038 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10038 Fuel Pump Hanger Assembly is designed for reliable fuel delivery in Chevrolet Camaro and Pontiac Firebird vehicles. This in-tank electric fuel pump assembly ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Compatible with Chevrolet Camaro and Pontiac Firebird models
• 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• External strainer inlet type with quick connect outlet (0.375 inch diameter)
• Seven female pin terminals for secure electrical connections
• Comes with gasket, seal, lock ring, and mounting hardware
• Standard replacement grade with an average flow rating of 37 liters per hour
• System pressure rated at 58 psi for consistent fuel delivery

Technical Details and Features

The Delphi HP10038 features a 12-volt electric pump designed specifically for gasoline fuel systems. It operates with an average current draw of 14 amps and maintains system pressure at 58 psi, with a maximum pressure rating of 109 psi. The assembly includes an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring efficient fuel flow and filtration. The seven female pin terminals provide reliable electrical connections, while the included fuel level sender assembly with float arm allows for accurate fuel gauge readings. This fuel pump hanger assembly is an in-tank design, simplifying installation and protecting the pump from external contaminants.

Applications and Problem Solving

• Restores proper fuel pressure and flow in Chevrolet Camaro and Pontiac Firebird models
• Replaces faulty or worn fuel pump hangers causing fuel delivery interruptions
• Addresses inaccurate fuel level readings with the included sender assembly
• Prevents fuel contamination with the external strainer and gasket seal
• Eliminates electrical connection issues with secure seven-pin female terminals

Installation Notes and Tips

Installation of the Delphi HP10038 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank components. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Use the included gasket and seal to prevent fuel leaks and secure the assembly with the provided lock ring and mounting hardware. Verify all electrical connections are properly seated on the seven-pin female terminals. After installation, check for fuel leaks and confirm the fuel gauge operates correctly with the sender assembly.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Chevrolet Camaro and Pontiac Firebird vehicles. It undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. The product includes a gasket and seal to maintain system integrity. Delphi provides a limited warranty covering defects in materials and workmanship, supporting confidence in the product’s quality and longevity.
