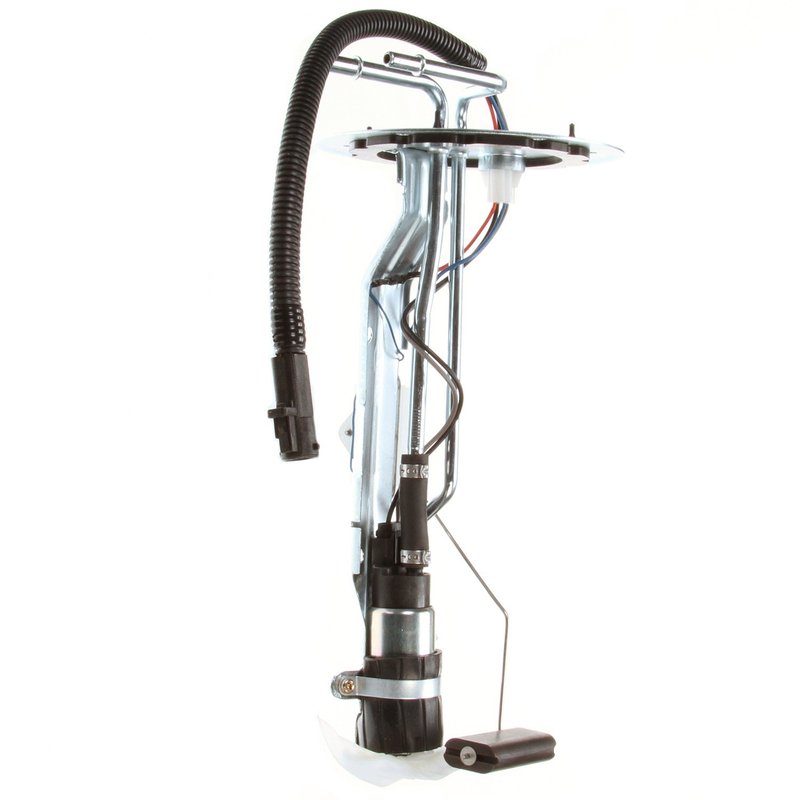

Delphi HP10071 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10071 fuel pump hanger assembly is designed for reliable fuel delivery in Ford F-150 and F-150 Heritage models. This in-tank electric fuel pump assembly ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Compatible with Ford F-150 and F-150 Heritage models
• 12-volt electric pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly with float arm
• Features external strainer inlet and quick connect outlet
• Comes with gasket, strainer, and mounting hardware
• Standard replacement grade for dependable operation

Technical Specifications and Features

The Delphi HP10071 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It delivers an average flow rating of 29 gallons per hour and maintains a system pressure of 44 psi, with a maximum pressure rating of 73 psi. The assembly includes a fuel level sender with a float arm, providing accurate fuel level readings. It features a 0.375-inch outside diameter outlet with two quick connect outlets for efficient fuel delivery. The pump has four male pin terminals and an external strainer inlet to protect the fuel system from contaminants. Resistance values range from 16 ohms when empty to 160 ohms when full, with an average current draw of 6 amps.

Applications and Problem Solving

This fuel pump hanger assembly is specifically compatible with Ford F-150 and F-150 Heritage trucks, making it a suitable replacement for worn or failing fuel pumps in these vehicles. It addresses common fuel system issues such as:

• Inconsistent fuel pressure causing engine performance problems
• Fuel pump failure leading to engine stalling or no-start conditions
• Faulty fuel level sender resulting in inaccurate fuel gauge readings
• Clogged fuel strainers reducing fuel flow and efficiency
• Leaks due to damaged seals or gaskets within the fuel pump assembly

Installation Notes and Tips

Installation of the Delphi HP10071 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle is safely supported and fuel system pressure is relieved before beginning. The assembly includes six bolts and washers for secure mounting, along with a gasket to prevent leaks. Verify all electrical connections use the four male pin terminals and confirm proper orientation of the float arm for accurate fuel level readings. Use caution when handling the external strainer to avoid damage.

Quality Assurance and Warranty

Delphi provides this fuel pump hanger assembly as a standard replacement part, manufactured to meet OEM specifications for Ford F-150 and F-150 Heritage models. The product includes a gasket and strainer to ensure a complete and reliable installation. While specific warranty details are not provided, Delphi parts typically adhere to industry standards for durability and performance.
