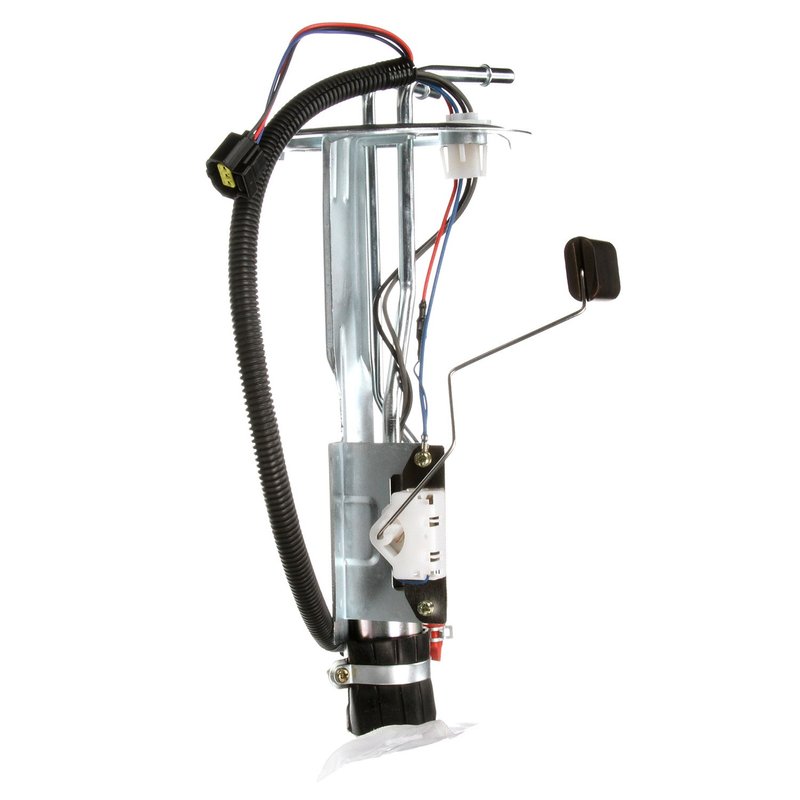

Delphi HP10074 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10074 fuel pump hanger assembly is designed for reliable fuel delivery in Ford Expedition and Lincoln Navigator vehicles. This in-tank electric fuel pump assembly ensures consistent fuel pressure and accurate fuel level readings for optimal engine performance.

• Compatible with Ford Expedition and Lincoln Navigator models
• 12.0 Volt electric fuel pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Features a 0.375 inch outlet outside diameter with quick connect outlet type
• Equipped with an external strainer and inlet strainer for fuel filtration
• Seven male pin terminals for secure electrical connections
• Includes gasket/seal and two retainer clips for proper installation
• Average flow rating of 24 and system pressure of 44 psi

Technical Details and Specifications

The Delphi HP10074 fuel pump hanger assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an electric pump type with an average current draw of 6 amps, ensuring efficient fuel delivery. The assembly includes an external strainer to protect the pump from contaminants and a quick connect outlet with two outlets for streamlined fuel flow. The seven male pin terminals provide reliable electrical connectivity, and the included gasket or seal helps maintain a secure, leak-free installation. Resistance values range from 16 ohms when empty to 160 ohms when full, supporting accurate fuel level readings through the integrated fuel level sender assembly.

Applications and Problem Resolution

• Restores proper fuel pressure in Ford Expedition and Lincoln Navigator fuel systems
• Replaces faulty or damaged fuel pump hangers causing fuel delivery interruptions
• Addresses inaccurate fuel gauge readings with the included fuel level sender assembly
• Prevents fuel contamination with the external strainer and inlet strainer design
• Eliminates electrical connection issues with seven-pin male terminals

Installation Notes and Tips

Installation of the Delphi HP10074 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank assembly. Ensure the gasket or seal is properly seated to prevent leaks. Use the included retainer clips to secure the assembly in place. Verify all seven male pin terminals are correctly connected to avoid electrical faults. It is recommended to inspect the fuel tank and lines for debris before installation to maximize pump longevity.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Ford and Lincoln vehicles. It includes a fuel level sender assembly and is designed for durability and consistent performance. Delphi provides a limited warranty covering defects in materials and workmanship, ensuring confidence in the product's reliability.
