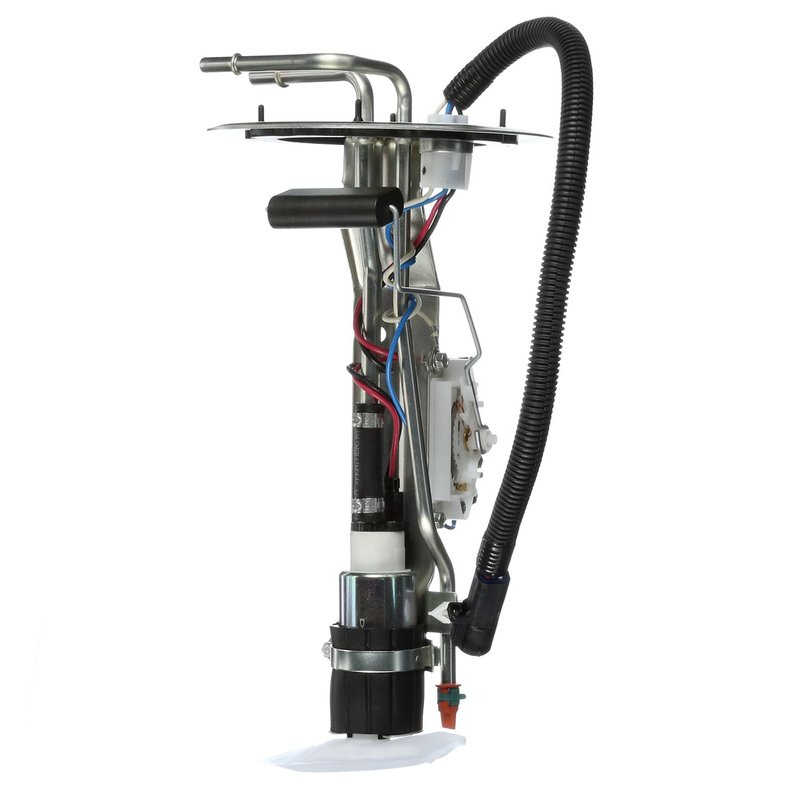

Delphi HP10089 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford F-150 and F-250

The Delphi HP10089 fuel pump hanger assembly is designed for reliable fuel delivery in Ford trucks, including the F-150, F-150 Heritage, and F-250 models. This in-tank electric fuel pump assembly ensures consistent fuel pressure and accurate fuel level readings for gas-powered engines.

Key Features of Delphi HP10089 Fuel Pump Hanger Assembly

• Compatible with Ford F-150, F-150 Heritage, and F-250 models
• 12.0 Volt electric fuel pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• In-tank design with external strainer and quick connect outlet type
• Four male pin terminals for secure electrical connections
• Comes with gasket or seal and two retainer clips for proper installation
• Average flow rating of 29 gallons per hour and system pressure of 44 psi

Detailed Description of the Delphi HP10089 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10089) is engineered to meet the fuel delivery requirements of Ford trucks running on gasoline. The electric pump operates at 12 volts and delivers an average flow rate of 29 gallons per hour, maintaining a system pressure of 44 psi to support optimal engine performance. The assembly features an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring efficient fuel filtration and connection. The included fuel level sender assembly with float arm provides accurate fuel level readings, supported by resistance values of 16 ohms when empty and 160 ohms when full. The four male pin terminals facilitate reliable electrical connections, while the included gasket or seal and retainer clips help secure the assembly within the fuel tank.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump assemblies in Ford F-150, F-150 Heritage, and F-250 trucks
• Resolves inconsistent fuel pressure or delivery problems affecting engine performance
• Fixes inaccurate fuel level readings caused by damaged or worn sender assemblies
• Addresses fuel pump noise or electrical connection issues due to terminal wear
• Prevents fuel contamination with the included external strainer

Installation Notes and Tips

• Ensure compatibility with your specific Ford model and year before installation
• Handle the fuel pump assembly carefully to avoid damage to the float arm and electrical terminals
• Replace the gasket or seal during installation to prevent fuel leaks
• Use the included retainer clips to secure the assembly firmly in the fuel tank
• Verify all electrical connections are tight and corrosion-free for optimal performance

Quality Assurance and Warranty Information

The Delphi HP10089 fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Ford trucks. It includes a fuel level sender assembly and is tested for consistent flow and pressure performance. Delphi provides a limited warranty covering defects in materials and workmanship, ensuring dependable operation when installed according to manufacturer guidelines.
