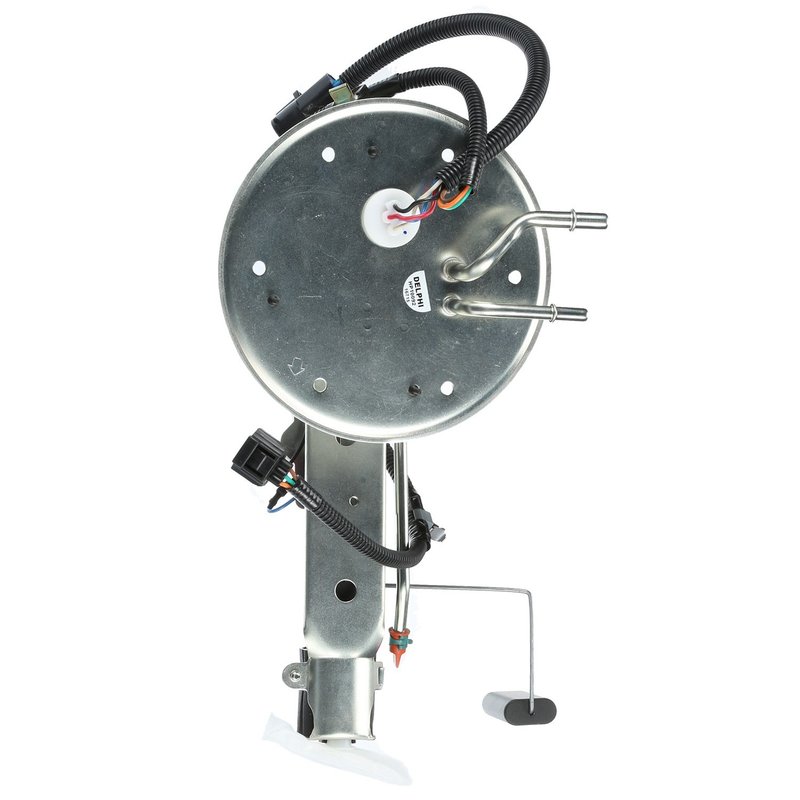

Delphi HP10092 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10092 fuel pump hanger assembly is designed for reliable fuel delivery in select Ford, Lincoln, and Mercury vehicles. Engineered for in-tank installation, this electric fuel pump assembly ensures consistent fuel flow and accurate fuel level readings for models like the Crown Victoria, Grand Marquis, and Town Car.

• Compatible with Ford Crown Victoria, Lincoln Town Car, and Mercury Grand Marquis
• 12.0 Volt electric fuel pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly with float arm and seal
• Features external strainer inlet and quick connect outlet (0.375 inch diameter)
• Seven male pin terminals for secure electrical connections
• Standard replacement grade with included gasket and two retainer clips
• Average flow rating of 26 gallons per hour and system pressure of 44 psi

Technical Details and Specifications

The Delphi HP10092 fuel pump hanger assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an external strainer inlet type and a quick connect outlet with a 0.375-inch outside diameter, supporting two outlet connections. The assembly includes a fuel level sender with a float arm and seal to provide accurate fuel level readings. Electrical connections are made via seven male pin terminals, ensuring a secure and reliable interface. The pump delivers an average flow rating of 26 gallons per hour and maintains a system pressure of 44 psi, with a maximum pressure rating of 73 psi. Resistance values range from 16 ohms when empty to 160 ohms when full, supporting consistent performance under varying fuel levels.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with the following vehicles:

• Ford Crown Victoria
• Lincoln Town Car
• Mercury Grand Marquis

It is designed for in-tank installation, making it suitable for fuel delivery and fuel level sensing in these specific models. The part number HP10092 ensures proper fitment and function within the fuel system of these vehicles.

Common Issues Addressed by This Fuel Pump Assembly

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings on the dashboard
• Fuel pump noise or irregular operation
• Fuel system pressure drops affecting engine performance
• Leaks or seal failures within the fuel pump assembly

Installation Notes and Tips

When installing the Delphi HP10092 fuel pump hanger assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. The included gasket and retainer clips should be used to secure the assembly and prevent leaks. Verify all seven male pin terminals are correctly connected to avoid electrical issues. The quick connect outlet facilitates straightforward fuel line attachment. It is recommended to inspect the fuel strainer for debris and replace if necessary during installation.

Quality Assurance and Warranty

Delphi provides this fuel pump hanger assembly as a standard replacement part, manufactured to meet OEM specifications for durability and performance. The assembly includes a gasket and retainer clips to ensure a proper seal and secure fit. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
