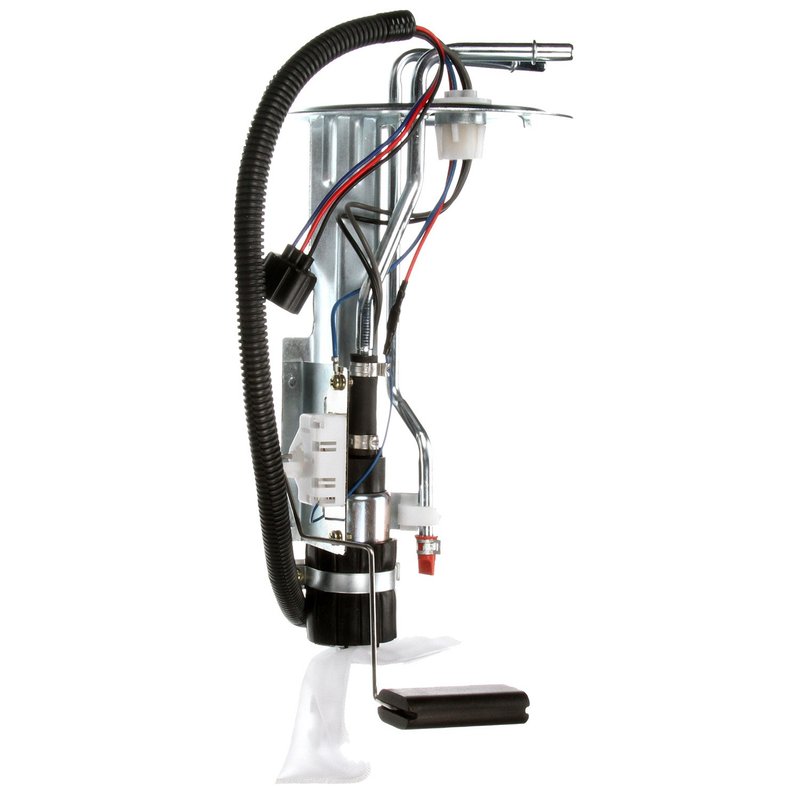

Delphi HP10126 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly for Ford Expedition

The Delphi HP10126 fuel pump hanger assembly is designed specifically for Ford Expedition models requiring reliable in-tank fuel delivery components. This electric fuel pump hanger assembly integrates a fuel level sender and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

Key Features of Delphi HP10126 Fuel Pump Hanger Assembly

• Compatible with Ford Expedition fuel systems
• 12.0 Volt electric pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• External strainer inlet type with included strainer for fuel filtration
• Quick connect outlet type with two outlets, 0.375 inch outside diameter
• Seven male pin terminals for secure electrical connections
• Comes with gasket/seal and two retainer clips for proper installation
• Average flow rating of 26 gallons per hour and system pressure of 44 psi

Detailed Description of the Delphi HP10126 Fuel Pump Hanger Assembly

The Delphi HP10126 is a standard replacement fuel pump hanger assembly designed for in-tank installation in Ford Expedition vehicles. Operating at 12 volts, this electric pump delivers a consistent flow rate of 26 gallons per hour and maintains system pressure at 44 psi, with a maximum pressure rating of 73 psi. The assembly features an external strainer inlet to protect the fuel system from contaminants and a quick connect outlet with two outlets sized at 0.375 inches outside diameter for efficient fuel delivery. The seven male pin terminals ensure reliable electrical connections, while the included fuel level sender assembly with float arm provides accurate fuel level readings. The package includes a gasket or seal and two retainer clips to secure the assembly during installation.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump hanger assemblies in Ford Expedition
• Resolves inconsistent fuel pressure or flow problems
• Fixes inaccurate fuel level readings due to faulty sender units
• Addresses fuel contamination issues with included external strainer
• Eliminates electrical connection failures with secure pin terminals

Installation Notes and Tips

• Ensure vehicle is depressurized and battery disconnected before installation
• Verify compatibility with Ford Expedition model year and fuel system specifications
• Use included gasket/seal and retainer clips to prevent leaks and secure assembly
• Handle float arm carefully to avoid damage during installation
• Check electrical connections for proper seating on the seven male pin terminals

Quality Assurance and Warranty Information

Delphi manufactures the HP10126 fuel pump hanger assembly to meet standard replacement quality requirements. The assembly is tested for electrical resistance, flow rate, and pressure to ensure reliable operation within specified parameters. This product includes a fuel level sender assembly and is backed by Delphi's quality standards. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
