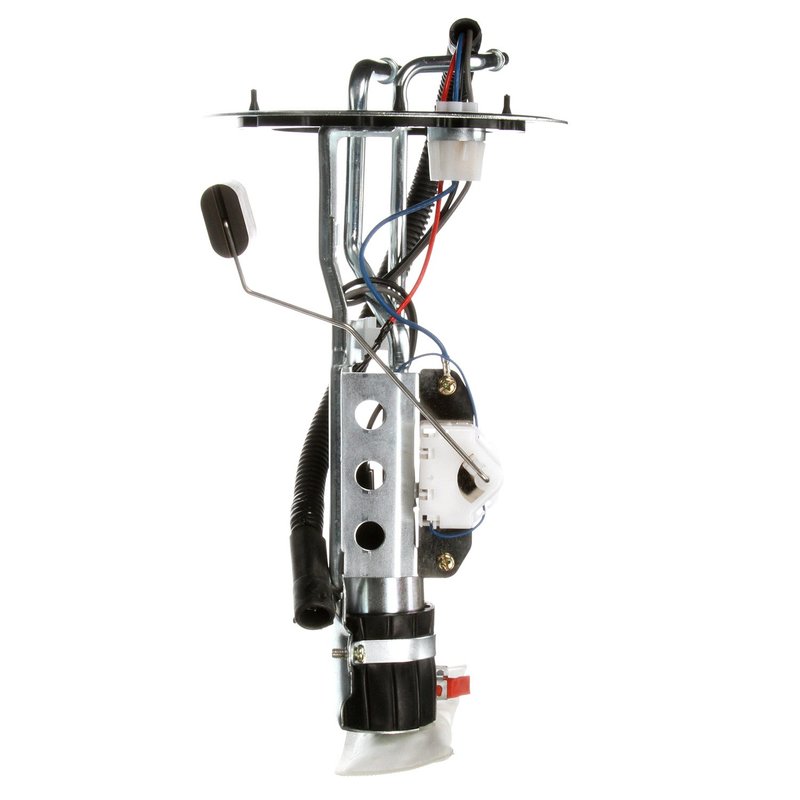

Delphi HP10127 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10127 fuel pump hanger assembly is designed for reliable fuel delivery in select Ford vehicles. Engineered for in-tank installation, this electric fuel pump assembly ensures consistent fuel pressure and flow for models like the Ford E-150, E-250, and E-350 series.

• Compatible with Ford E-150, E-150 Club Wagon, E-150 Econoline, E-250, E-350 Club Wagon, and E-350 Super Duty
• 12-volt electric pump with a maximum pressure of 73 psi and system pressure of 44 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Features external strainer inlet and quick connect outlet with 0.375 inch outside diameter
• Comes with gasket, strainer, and mounting hardware for complete installation

Technical Specifications and Features

The Delphi HP10127 fuel pump hanger assembly operates at 12 volts and is designed for gasoline fuel systems. It delivers an average flow rating of 26 gallons per hour, supporting efficient fuel supply under various driving conditions. The assembly includes four male pin terminals and two quick connect outlets, facilitating secure electrical and fuel line connections. The external strainer inlet helps prevent debris from entering the fuel system, enhancing pump longevity. Resistance values range from 16 ohms when empty to 160 ohms when full, ensuring accurate fuel level readings via the included sender assembly.

Applications and Problem Resolution

This fuel pump hanger assembly is intended for use in Ford E-Series vans and trucks, including E-150, E-250, and E-350 models. It addresses common fuel system issues such as:

• Intermittent or no fuel delivery due to pump failure
• Inaccurate fuel level readings from faulty sender units
• Fuel contamination caused by damaged or missing strainers
• Leaks or pressure drops from worn seals or gaskets
• Electrical connection problems with damaged terminals

Installation Notes and Tips

Installation of the Delphi HP10127 requires removal of the fuel tank to access the in-tank assembly. Ensure all electrical connections use the included male pin terminals and verify the gasket is properly seated to prevent leaks. The quick connect outlets simplify fuel line attachment, but confirm secure engagement to avoid disconnections. Use the supplied bolts and washers to mount the assembly firmly. It is recommended to inspect the fuel tank and lines for contamination or damage during installation.

Quality Assurance and Warranty

Delphi manufactures the HP10127 as a standard replacement part meeting OEM specifications for fit and function. The assembly includes a gasket and strainer to maintain system integrity. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Always consult product documentation or supplier information for exact warranty terms.
