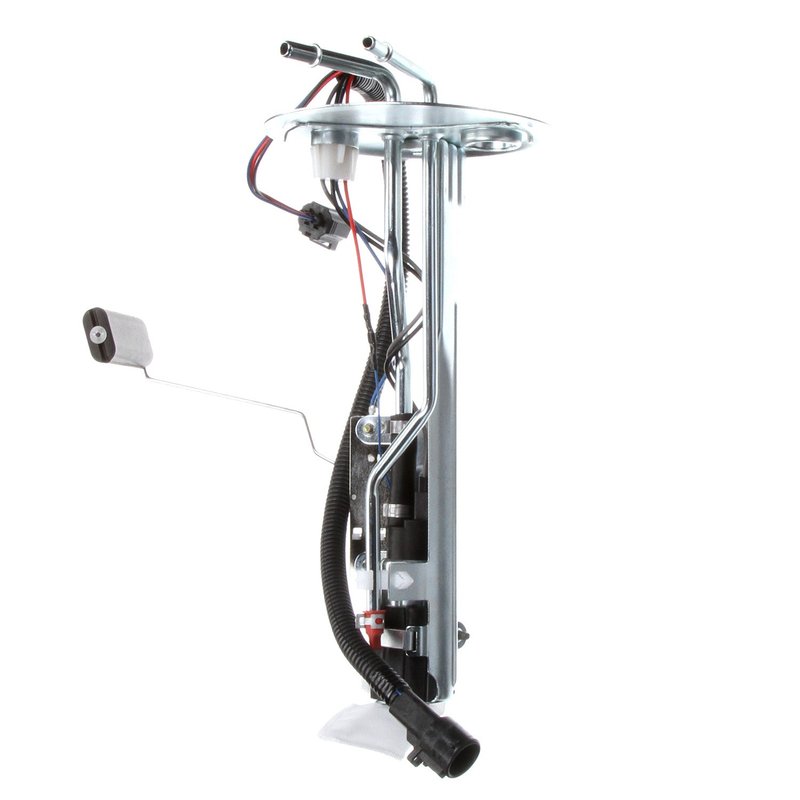

Delphi HP10131 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10131 fuel pump hanger assembly is designed for reliable fuel delivery in Ford Expedition and Lincoln Navigator vehicles. This in-tank electric fuel pump assembly ensures consistent fuel flow and accurate fuel level readings for gas-powered engines.

• Compatible with Ford Expedition and Lincoln Navigator models
• 12.0 Volt electric fuel pump with a maximum pressure of 73 psi
• Includes external strainer and fuel level sender assembly with float arm
• Quick connect outlet with 0.375 inch outside diameter
• Seven male pin terminals for secure electrical connections
• Average flow rating of 24 gallons per hour and system pressure of 44 psi

Technical Specifications and Features

The HP10131 fuel pump hanger assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an external strainer inlet type to protect the pump from debris and a quick connect outlet type with two outlets measuring 0.375 inches in diameter. The assembly includes seven male pin terminals, providing a secure and reliable electrical connection. The fuel pump delivers an average flow rating of 24 gallons per hour and maintains a system pressure of 44 psi, with a maximum pressure rating of 73 psi. The fuel level sender assembly is integrated with a float arm to provide accurate fuel level readings. This standard replacement grade part draws an average current of 6 amps and has resistance values of 16 ohms when empty and 160 ohms when full.

Compatible Vehicles and Applications

This fuel pump hanger assembly is compatible with the following vehicles:

• Ford Expedition (gasoline engines)
• Lincoln Navigator (gasoline engines)

It is designed to replace the original in-tank fuel pump assembly, ensuring proper fuel delivery and fuel level monitoring for these specific models.

Common Issues Addressed by This Fuel Pump Assembly

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pump noise or reduced fuel pressure affecting engine performance
• Clogged or damaged fuel strainer leading to fuel flow restrictions
• Electrical connection failures causing pump malfunction

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your specific Ford Expedition or Lincoln Navigator model year
• Handle the fuel pump assembly carefully to avoid damage to the strainer and float arm
• Use proper tools to disconnect and reconnect the quick connect outlets and electrical terminals
• Follow the included instruction sheet for detailed installation guidance

Quality Assurance and Warranty

The Delphi HP10131 fuel pump hanger assembly is manufactured to meet standard replacement quality requirements. It undergoes rigorous testing to ensure reliable operation under normal driving conditions. While no specific warranty information is provided, Delphi parts typically come with manufacturer-backed quality assurance to support durability and performance in Ford Expedition and Lincoln Navigator vehicles.
