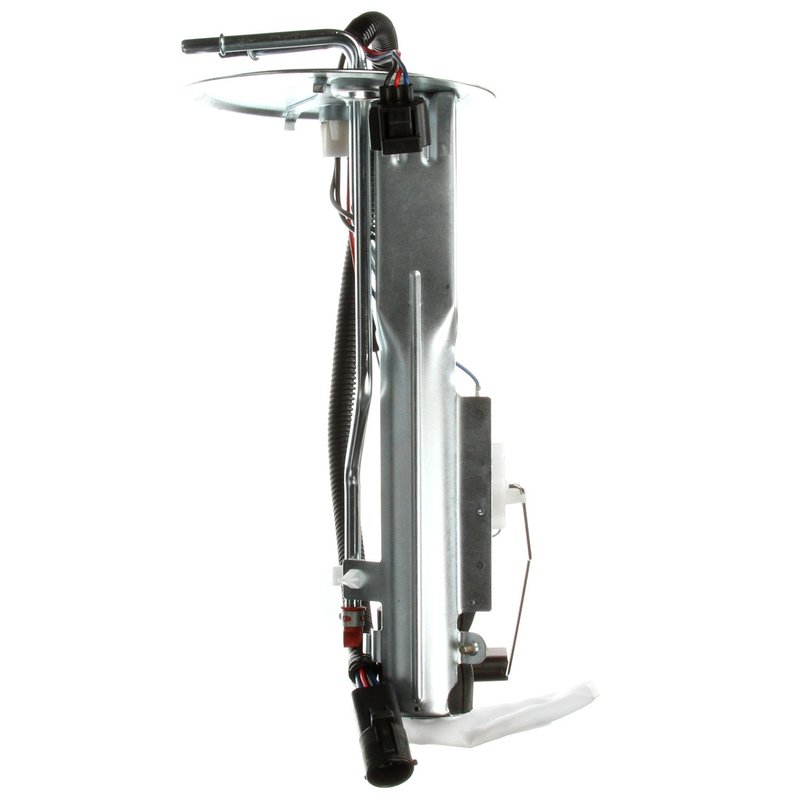

Delphi HP10133 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10133 fuel pump hanger assembly is designed for reliable fuel delivery in Ford Expedition and Lincoln Navigator vehicles. This in-tank electric fuel pump assembly ensures consistent fuel pressure and accurate fuel level readings for gas-powered engines.

• Compatible with Ford Expedition and Lincoln Navigator models
• 12.0 Volt electric fuel pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• External strainer inlet type with included strainer for fuel filtration
• Two outlet hoses with 0.375 inch outside diameter for secure fuel flow
• Seven male pin terminals for reliable electrical connections
• Comes with gasket/seal and two retainer clips for proper installation
• Standard replacement grade part designed for in-tank installation

Technical Details and Specifications

The Delphi HP10133 fuel pump hanger assembly operates at 12 volts and is engineered for gas fuel systems. It delivers an average flow rating of 32 gallons per hour and maintains a system pressure of 36 psi, with a maximum pressure rating of 73 psi. The assembly features an external strainer inlet and two hose-type outlets with a 0.375 inch outside diameter, ensuring efficient fuel delivery and filtration. The unit includes seven male pin terminals, supporting stable electrical connections and an average current draw of 7 amps. Resistance values range from 16 ohms when empty to 160 ohms when full, providing accurate fuel level readings through the included fuel level sender assembly with float arm.

Applications and Problem Solving

• Restores proper fuel pressure in Ford Expedition and Lincoln Navigator gas engines
• Replaces faulty or leaking fuel pump hanger assemblies causing fuel delivery issues
• Resolves inaccurate fuel gauge readings with integrated fuel level sender assembly
• Eliminates fuel contamination by utilizing the external strainer inlet
• Addresses electrical connection failures with robust seven-pin male terminals

Installation Notes and Tips

Installation of the Delphi HP10133 fuel pump hanger assembly requires removal of the fuel tank for in-tank access. Ensure the gasket or seal included is properly seated to prevent leaks. Use the two retainer clips provided to secure the assembly firmly in place. Verify all seven male pin terminals are correctly connected to avoid electrical faults. It is recommended to inspect the fuel lines and hoses for wear during installation and replace if necessary to maintain optimal fuel system performance.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Ford and Lincoln vehicles. It includes a gasket and strainer to ensure proper sealing and filtration. While specific warranty details are not provided, Delphi parts typically adhere to industry quality standards for durability and performance in automotive fuel delivery systems.
