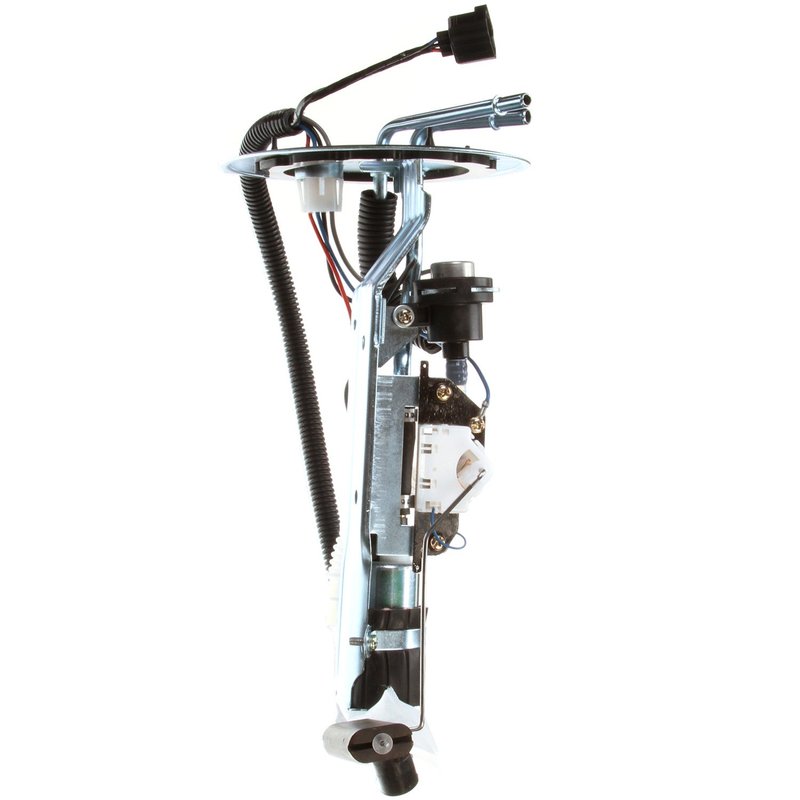

Delphi HP10134 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10134 fuel pump hanger assembly is designed for reliable fuel delivery in Ford Explorer Sport and Explorer Sport Trac models. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

• Compatible with Ford Explorer Sport and Explorer Sport Trac
• Electric fuel pump with 12.5 volts operating voltage
• Maximum system pressure of 80 psi and rated system pressure of 60 psi
• Includes fuel level sender assembly with float arm
• Features external strainer inlet and quick connect outlet
• Outlet outside diameter of 0.375 inches with two quick connect outlets
• Seven male pin terminals for secure electrical connections
• Includes gasket, seal, and strainer for complete installation
• Average flow rating of 21 gallons per hour and average current draw of 6 amps

Technical Details and Specifications

The Delphi HP10134 fuel pump hanger assembly operates at 12.5 volts and is designed specifically for gasoline fuel systems. It features an electric pump type with an external strainer inlet to ensure clean fuel delivery. The assembly includes two quick connect outlets with an outside diameter of 0.375 inches, facilitating easy connection to the fuel lines. The seven male pin terminals provide reliable electrical connectivity, supporting a maximum system pressure of 80 psi and a rated system pressure of 60 psi. Resistance values range from 16 ohms when empty to 160 ohms when full, ensuring accurate fuel level readings through the included fuel level sender assembly.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hangers in Ford Explorer Sport and Explorer Sport Trac
• Resolves inconsistent fuel pressure or flow issues affecting engine performance
• Addresses fuel level sender failures for accurate fuel gauge readings
• Eliminates fuel delivery interruptions caused by clogged strainers or damaged seals
• Restores proper electrical connections with secure seven-pin male terminals

Installation Notes and Tips

Installation of the Delphi HP10134 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank assembly. Ensure all electrical connections are clean and secure, matching the seven-pin male terminals correctly. Replace the included gasket and seal to prevent fuel leaks. Verify the quick connect outlets are properly seated to maintain fuel line integrity. It is recommended to inspect the fuel tank and lines for debris or damage during installation to ensure optimal performance.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Ford Explorer Sport and Explorer Sport Trac vehicles. It includes all necessary components such as the fuel level sender assembly, gasket, seal, and retainer clips for a complete installation. Delphi products undergo rigorous quality control to ensure durability and reliable operation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
