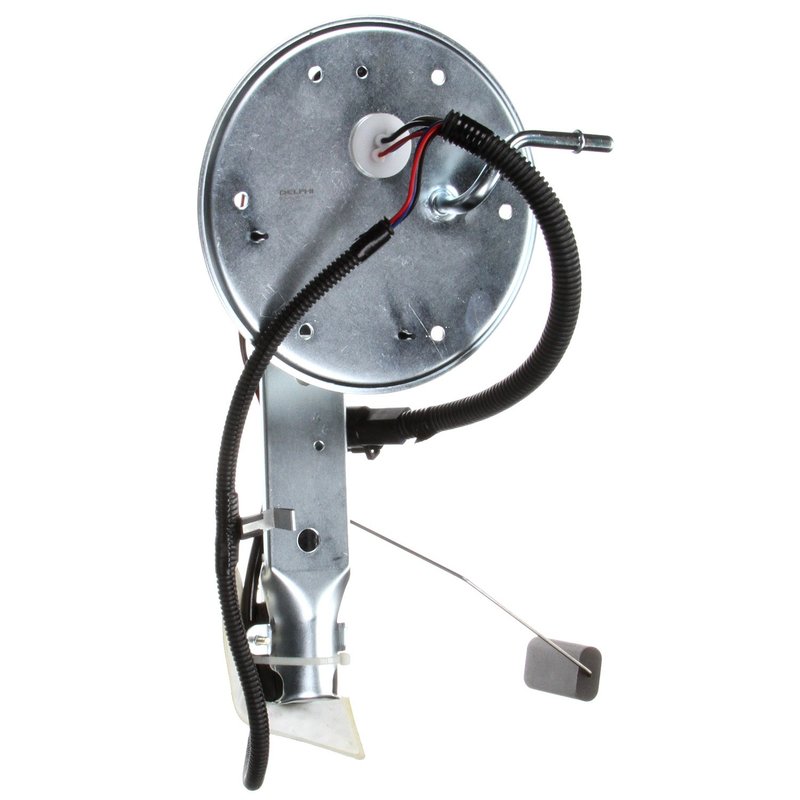

Delphi HP10137 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10137 fuel pump hanger assembly is designed for reliable fuel delivery in select Ford, Lincoln, and Mercury vehicles. Engineered for in-tank installation, this electric fuel pump hanger assembly supports consistent fuel flow and accurate fuel level readings for models like the Crown Victoria, Grand Marquis, and Town Car.

• 12.0 Volt electric fuel pump with a maximum pressure of 87 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• External strainer inlet type with included strainer for fuel filtration
• Quick connect outlet with 0.375 inch outside diameter for secure fuel line attachment
• Seven male pin terminals for reliable electrical connections
• Designed for flex fuel compatibility and standard replacement grade
• Average flow rating of 32 gallons per hour and system pressure of 44 psi
• Comes with gasket/seal, six bolts, and washers for installation

Technical Details and Features

The HP10137 fuel pump hanger assembly operates at 12 volts and delivers a maximum pressure of 87 psi, ensuring adequate fuel supply under various driving conditions. Its electric pump type supports an average current draw of 8 amps, balancing performance and efficiency. The assembly features an external strainer inlet to protect the pump from contaminants, while the quick connect outlet simplifies fuel line connections with a 0.375 inch outside diameter. The seven male pin terminals provide secure electrical connectivity, and the included fuel level sender assembly with float arm offers accurate fuel tank readings. This assembly is compatible with flex fuel types and is designed as a standard replacement part for in-tank installation.

Compatible Vehicles and Applications

This Delphi fuel pump hanger assembly is compatible with the following vehicles:

• Ford Crown Victoria
• Lincoln Town Car
• Mercury Grand Marquis

It is specifically engineered to meet the fuel delivery requirements of these models, ensuring proper fitment and function.

Common Issues Addressed by This Fuel Pump Hanger Assembly

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel contamination leading to pump damage, mitigated by the external strainer
• Electrical connection failures with worn or damaged terminals
• Reduced fuel pressure affecting engine performance

Installation Notes and Tips

Installation of the Delphi HP10137 requires removal of the fuel tank to access the in-tank fuel pump hanger assembly. Ensure all electrical connections are clean and secure, particularly the seven male pin terminals. Replace the included gasket or seal to prevent fuel leaks. Verify the correct orientation of the float arm for accurate fuel level readings. Use the supplied bolts and washers to secure the assembly firmly. It is recommended to inspect the fuel tank and lines for debris before installation to prolong pump life.

Quality Assurance and Warranty

Delphi manufactures the HP10137 fuel pump hanger assembly to meet OEM specifications for durability and performance. This standard replacement part undergoes rigorous testing to ensure consistent fuel delivery and accurate fuel level sensing. The product includes a gasket and strainer to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
