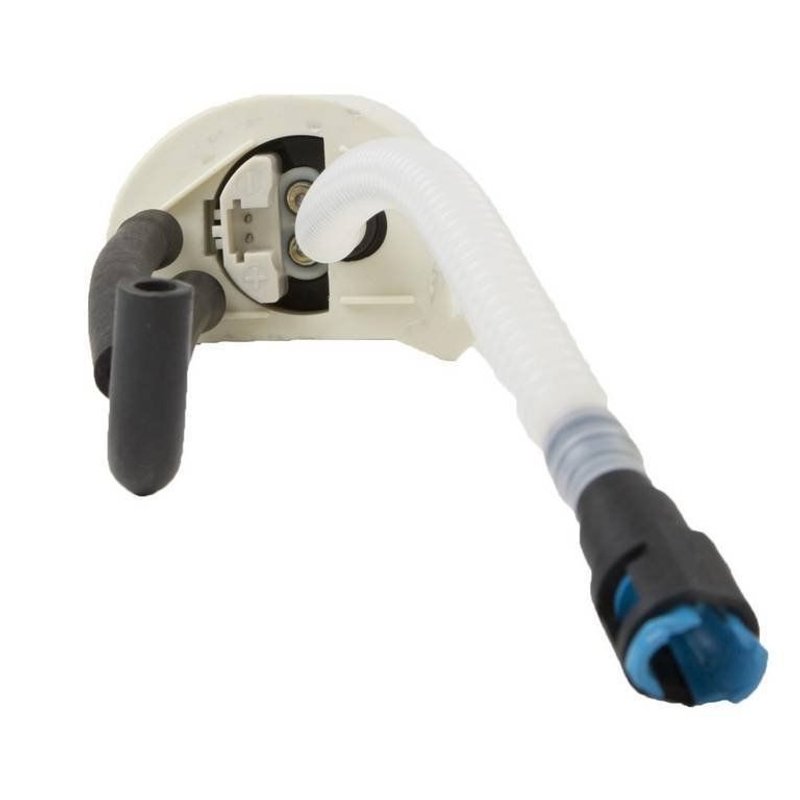

Delphi HP10140 Fuel Pump and Strainer Set

Delphi HP10140 Fuel Pump and Strainer Set Overview

The Delphi HP10140 fuel pump and strainer set is designed for reliable fuel delivery in Chevrolet Camaro and Pontiac Firebird models. This electric in-tank fuel pump offers consistent performance with a built-in strainer and seal to ensure clean fuel flow and system protection.

• Electric in-tank fuel pump with internal strainer
• Compatible with gasoline fuel systems
• 13.5 volts operating voltage with 6 amps average current draw
• Maximum pressure rating of 73 psi and system pressure of 44 psi
• 0.375 inch outlet outside diameter with female quick connect outlet
• Includes gasket, seal, nut, strainer, and instruction sheet
• Two male pin terminals for electrical connection
• Standard replacement grade for Chevrolet Camaro and Pontiac Firebird

Technical Details and Specifications

The Delphi HP10140 fuel pump and strainer set operates at 13.5 volts and draws an average current of 6 amps, providing an average flow rating of 22 gallons per hour. It features a 0.375 inch outlet outside diameter with a female quick connect outlet type, ensuring secure and efficient fuel delivery. The pump is designed for gasoline fuel systems and includes an internal strainer to filter contaminants before fuel reaches the engine. The unit is equipped with two male pin terminals for electrical connections and comes with a gasket or seal to prevent leaks. This in-tank electric pump supports a maximum pressure of 73 psi and maintains a system pressure of 44 psi, suitable for the fuel delivery requirements of Chevrolet Camaro and Pontiac Firebird vehicles.

Compatible Vehicles and Applications

This fuel pump and strainer set is compatible with the following vehicles:

• Chevrolet Camaro
• Pontiac Firebird

It is designed as a direct replacement part for fuel delivery systems in these models, ensuring proper fit and function.

Common Issues Addressed by the Delphi HP10140

• Fuel delivery interruptions causing engine hesitation or stalling
• Low fuel pressure affecting engine performance
• Contaminated fuel causing clogging or damage to fuel injectors
• Electrical connection failures due to worn terminals
• Leaks from worn or missing seals and gaskets

Installation Notes and Tips

Installation of the Delphi HP10140 fuel pump and strainer set requires removal of the fuel tank to access the in-tank pump assembly. Ensure the electrical connectors match the two male pin terminals provided. Replace the included gasket or seal to prevent fuel leaks. Follow the instruction sheet carefully for torque specifications and proper assembly. It is recommended to inspect the fuel tank and lines for debris or damage during installation to maintain optimal fuel system performance.

Quality Assurance and Warranty

The Delphi HP10140 is a standard replacement grade fuel pump and strainer set manufactured to meet OEM specifications. It includes all necessary components such as the fuel pump, strainer, seal, and nut to facilitate a complete installation. Delphi products are known for their durability and reliability in automotive fuel delivery systems. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
