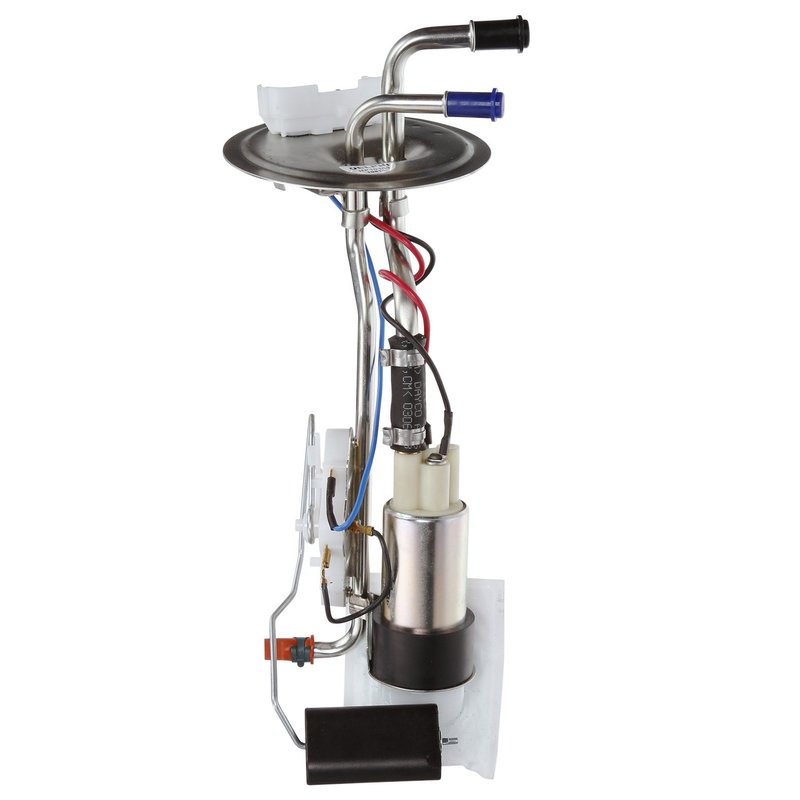

Delphi HP10143 Fuel Pump Hanger Assembly

Delphi Fuel Pump Hanger Assembly Overview

The Delphi HP10143 fuel pump hanger assembly is designed for reliable fuel delivery in Ford Cougar and Mercury Thunderbird vehicles. This in-tank electric fuel pump assembly includes a fuel level sender and is engineered to meet standard replacement specifications for gas-powered engines.

• Compatible with Ford Cougar and Mercury Thunderbird models
• Electric fuel pump with 12.0 voltage rating
• Maximum pressure of 80 psi and system pressure of 44 psi
• Includes fuel level sender assembly with float arm
• Features external strainer and quick connect outlet type
• Comes with gasket/seal and lock ring for secure installation
• Four male pin terminals for electrical connection
• Average flow rating of 25 and average current draw of 7 amps

Technical Details and Specifications

The Delphi HP10143 fuel pump hanger assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features a 0.375-inch outlet outside diameter with two quick connect outlets, allowing efficient fuel flow. The assembly includes an external strainer inlet type to filter contaminants before fuel reaches the pump. The four male pin terminals ensure a secure electrical connection, supporting an average current draw of 7 amps. Resistance values range from 15 ohms when empty to 160 ohms when full, providing accurate fuel level readings through the included fuel level sender assembly.

Applications and Problem Solving

• Replaces faulty or worn fuel pump hangers in Ford Cougar and Mercury Thunderbird
• Resolves fuel delivery issues such as low pressure or inconsistent flow
• Addresses fuel level sender failures for accurate fuel gauge readings
• Eliminates fuel contamination problems with the included external strainer
• Prevents electrical connection issues with four-pin male terminals

Installation Notes and Tips

Installation of the Delphi HP10143 fuel pump hanger assembly requires removal of the fuel tank to access the in-tank assembly. Ensure the gasket or seal included is properly seated to prevent leaks. The quick connect outlet fittings simplify fuel line connections, but verify secure attachment to avoid fuel leaks. Handle the float arm carefully to maintain accurate fuel level readings. Follow vehicle-specific service manuals for torque specifications and safety precautions when working with fuel system components.

Quality Assurance and Warranty

This Delphi fuel pump hanger assembly is a standard replacement part manufactured to meet OEM specifications for Ford and Mercury vehicles. It includes a gasket or seal and strainer to ensure proper function and durability. Delphi products typically come with a limited warranty covering defects in materials and workmanship; please refer to Delphi's official warranty documentation for specific terms related to part number HP10143.
