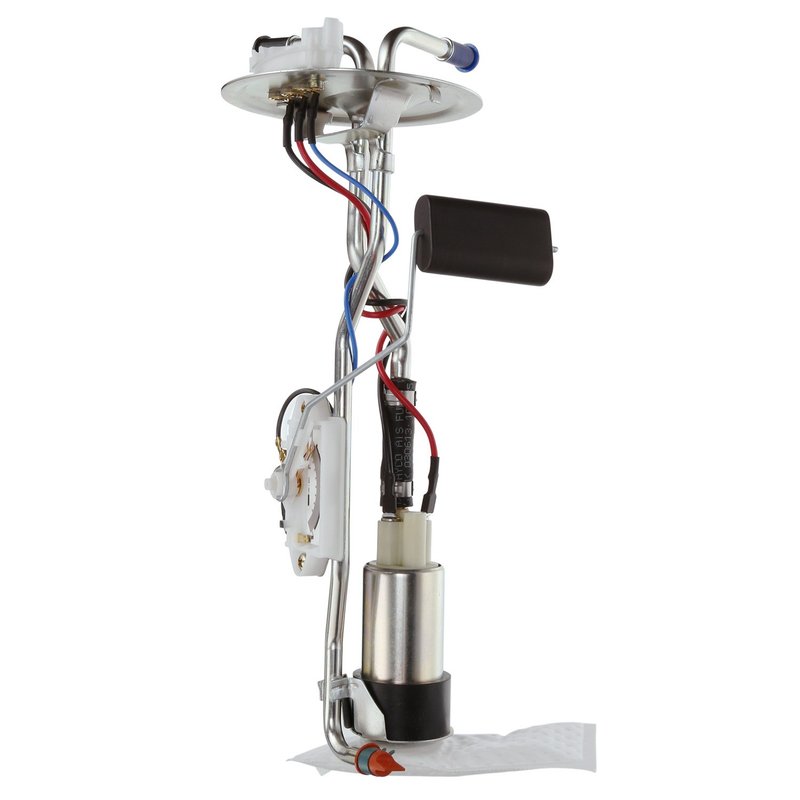

Delphi HP10144 Fuel Pump Hanger Assembly

Reliable Fuel Pump Hanger Assembly for Ford and Mazda Trucks

The Delphi HP10144 fuel pump hanger assembly is designed for precise fuel delivery in select Ford and Mazda trucks. Engineered to meet OEM specifications, this in-tank electric fuel pump assembly ensures consistent fuel pressure and flow for models like the Ford Ranger and Mazda B-series trucks.

Key Features of Delphi HP10144 Fuel Pump Hanger Assembly

• Compatible with Ford B2300, B3000, B4000, and Ranger models
• 12-volt electric pump with a maximum pressure of 80 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• External strainer inlet type with included strainer for fuel filtration
• Quick connect outlet with 0.375-inch outside diameter and two outlet ports
• Four male pin terminals for secure electrical connections
• Comes with gasket, seal, and lock ring for proper installation
• Average flow rating of 24 gallons per hour and system pressure of 36 psi

Detailed Description of the Delphi HP10144 Fuel Pump Hanger Assembly

This Delphi fuel pump hanger assembly (part number HP10144) is an electric in-tank pump designed specifically for gas fuel systems in Ford and Mazda trucks, including the B2300, B3000, B4000, and Ranger. The assembly features a durable external strainer inlet to protect the pump from debris, ensuring reliable operation. It operates at 12 volts with a maximum pressure rating of 80 psi and maintains a system pressure of 36 psi, providing consistent fuel delivery under various driving conditions.

The unit includes a fuel level sender assembly with a float arm, allowing accurate fuel gauge readings. Electrical connections are made via four male pin terminals, supporting stable current draw averaging 7 amps. The quick connect outlet with a 0.375-inch outside diameter simplifies fuel line attachment. This standard replacement grade assembly comes complete with a gasket, seal, and lock ring to facilitate a secure and leak-free installation.

Applications and Common Issues Addressed

• Restores proper fuel pressure and flow in Ford Ranger and Mazda B-series trucks
• Resolves fuel gauge inaccuracies with integrated fuel level sender assembly
• Eliminates fuel delivery interruptions caused by clogged or damaged strainers
• Replaces faulty or worn electric fuel pumps to improve engine performance
• Prevents fuel leaks with included gasket and seal components

Installation Notes and Tips

• Ensure compatibility with your specific Ford or Mazda model before installation
• Handle the float arm carefully to avoid damage during assembly
• Verify all electrical connections are secure on the four male pin terminals
• Use the included gasket and seal to prevent fuel leaks
• Follow vehicle manufacturer guidelines for in-tank fuel pump replacement procedures

Quality Assurance and Warranty Information

Delphi manufactures the HP10144 fuel pump hanger assembly to meet or exceed OEM standards for durability and performance. This standard replacement part undergoes rigorous testing to ensure reliable operation in Ford and Mazda trucks. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship to provide confidence in your purchase.
