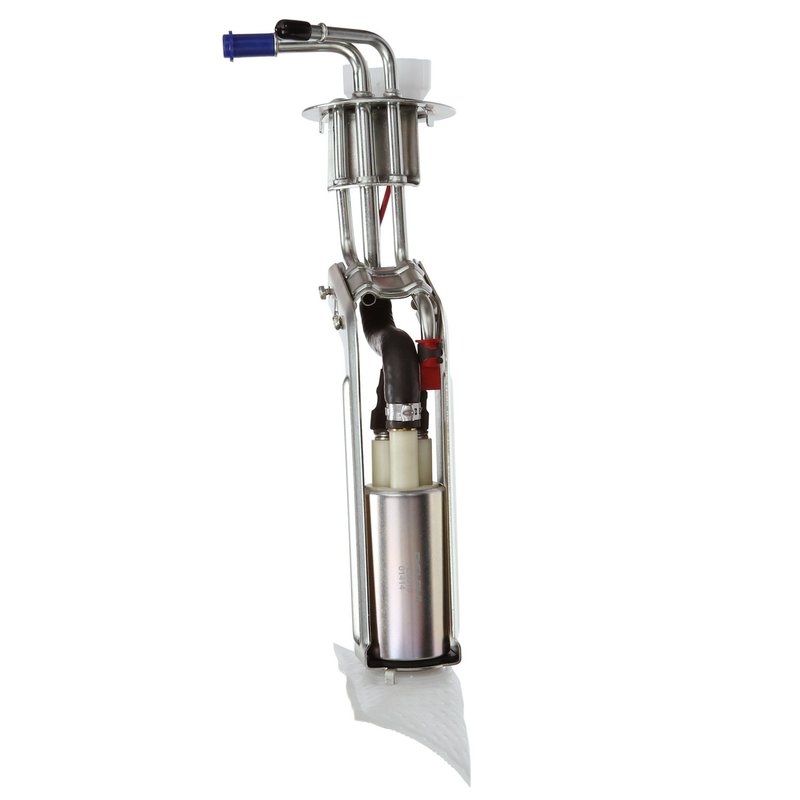

Delphi HP10146 Fuel Pump Hanger Assembly
OE Quality 60-Day Returns
Delphi

Delphi HP10146 Fuel Pump Hanger Assembly

Brand Delphi HP10146
Average Current Draw 7
Average Flow Rating 28
Fuel Level Sender Assembly Included No
Fuel Type Gas
Gasket Or Seal Included Yes
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer External
Item Grade Standard Replacement
Maximum Pressure 80.0
Outlet Outside Diameter 0.313
Outlet Quantity 2
Outlet Type Quick Connect
Package Contents Fuel Pump Hanger Assembly w/o Float Arm, Seal, Lock Ring, Instruction Sheet
Pump Type Electric
Strainer Included Yes
System Pressure 36 psi
Terminal Gender Male
Terminal Quantity 2
Terminal Type Pin
Voltage 12.0
Fits Ford and Mercury · 15 vehicles

Standard replacement. Direct-fit fuel pump hanger assembly for straightforward service.

Includes seal and strainer. Ready for a cleaner, more complete fuel system refresh.

OE heritage. Built from Delphi's century of original-equipment experience.

Cross-references Airtex Fuel Pumps E2061, Airtex Fuel Pumps E2110H and Carter P74119 for the same application. See all 27.

$132.63Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $132.63
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Hanger Assembly options

Delphi HP10146 Fuel Pump Hanger Assembly

The Delphi HP10146 fuel pump hanger assembly is a standard replacement for in-tank gasoline fuel delivery systems. Built from Delphi’s OE experience, it is specified for 12-volt operation, 36 psi system pressure, and up to 80 psi maximum pressure for the listed Ford Mustang and Mercury Capri applications.

Key Features

  • In-tank electric fuel pump hanger assembly for gasoline applications
  • 12.0-volt design with 7 amp average current draw
  • 36 psi system pressure and 80.0 maximum pressure rating
  • Quick-connect outlet design with two outlets
  • External strainer included with gasket/seal included
  • Standard replacement grade for service repair
  • Fuel pump hanger assembly w/o float arm, seal, lock ring, instruction sheet

Detailed Description

Delphi HP10146 is a fuel pump hanger assembly engineered for in-tank fuel delivery on gasoline vehicles. It uses an electric pump design with a pin-style, 2-terminal male connection, quick-connect outlet, and external strainer to support consistent fuel flow. The unit is rated at 28 average flow and is built for applications that require a 36 psi system pressure. Delphi’s OE heritage and supplier experience are reflected in the aftermarket design, making this a direct-fit service part for select 1985-1993 Ford Mustang and 1985-1986 Mercury Capri models. This part cross-references Airtex Fuel Pumps E2061 and Carter P74119 for the same application. The Delphi HP10146 fuel pump hanger assembly is a practical choice when replacing a worn or failing in-tank fuel delivery module on a Ford Mustang or Mercury Capri.

Common Problems It Can Address

  • Hard starting caused by weak or inconsistent fuel delivery
  • Engine hesitation or stalling from low fuel pressure
  • Noisy or failing in-tank fuel pump operation
  • Fuel starvation under load from a restricted pump assembly
  • Service issues related to a damaged hanger, seal, or strainer

Installation Notes and Tips

  • Compatible With 1985-1993 Ford Mustang, N/A.
  • Compatible With 1985-1986 Mercury Capri, N/A.
  • Clean the fuel tank before installation to reduce the risk of premature pump failure and seal problems.
  • Use of fuel tank cleaning kit FC01 is recommended for the listed 1985 Ford Mustang and 1985 Mercury Capri applications.
  • Verify electrical connection type, outlet style, and pressure requirements before installation.

Quality Assurance

Delphi builds this replacement part using OE-focused engineering knowledge developed through long-term supplier experience with major automakers. The HP10146 is intended as a standard replacement fuel pump hanger assembly for the listed applications and is backed by Delphi’s OE-based product development approach.

Related reading

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
1993FordMustangSVT CobraN/AClean fuel tank before installing fuel pump to prevent future seal problems.
1993FordMustangLXN/AClean fuel tank before installing fuel pump to prevent future seal problems.
1993FordMustangGTN/AClean fuel tank before installing fuel pump to prevent future seal problems.
1993FordMustang—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1992FordMustang—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1991FordMustang—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1990FordMustang—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1990FordMustangLXN/AClean fuel tank before installing fuel pump to prevent future seal problems.
1989FordMustang—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1988FordMustang—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1987FordMustang—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1986FordMustang—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1986MercuryCapri—N/AClean fuel tank before installing fuel pump to prevent future seal problems.
1985FordMustang—N/AFrom 11/1984; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
1985MercuryCapri—N/AFrom 11/1984; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
Directly replaces or cross-references 27 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex Fuel Pumps — E2061Airtex Fuel Pumps — E2110HCarter — P74119Carter — P74635HSpectra Premium — SP236HSpectra Premium — SP237HSpectra Premium — SP1148950-3008950-30096704169124A20005AFS0001PAFS0067FAFS0976PDHP10146E5ZZ 9A407-AE5ZZ 9A407-BE16075E16161F1ZZ 9A407-BAF1ZZ 9A407-CF1ZZ 9A407-CAP74033PFB-27PFB-28RE0067F
